17. Insert the Feed Roll Bar through the hollow core in the Paper
Roll (Figure 16).

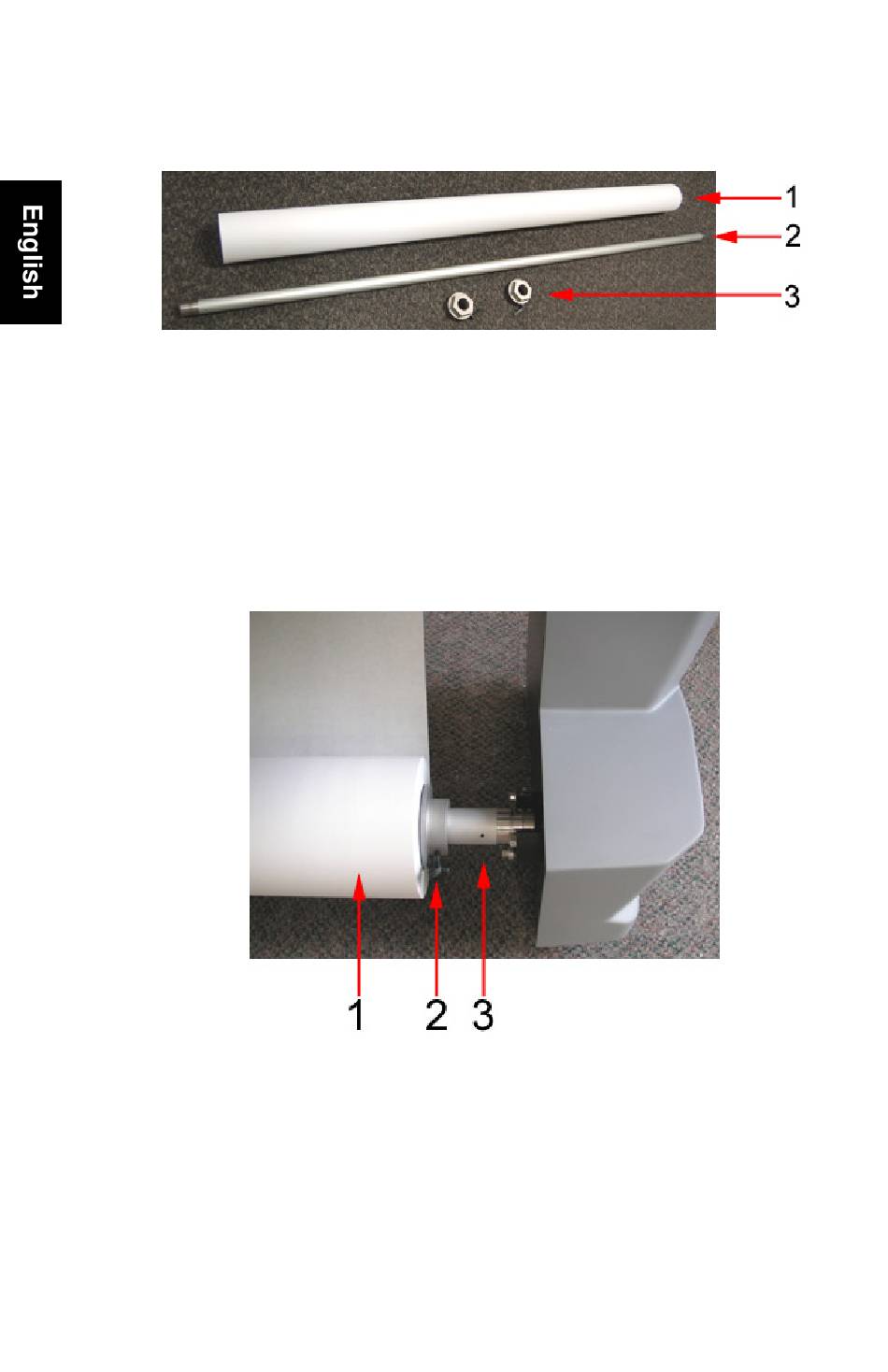

Figure 16. Paper roll and components
1.
2.
3.
18. Place Mandrels on each end of the Feed Roll Bar and use the
attached black levers to tighten next to the Paper Roll (Figure
17).
Figure 17. Paper on Feed Roll Bar with Mandrel
________________________________________________
Key to Figure
Paper Roll
Feed Roll Bar
Mandrels
Key to Figure
1. Paper Roll
2. Mandrel
3. Feed Roll Bar
16
