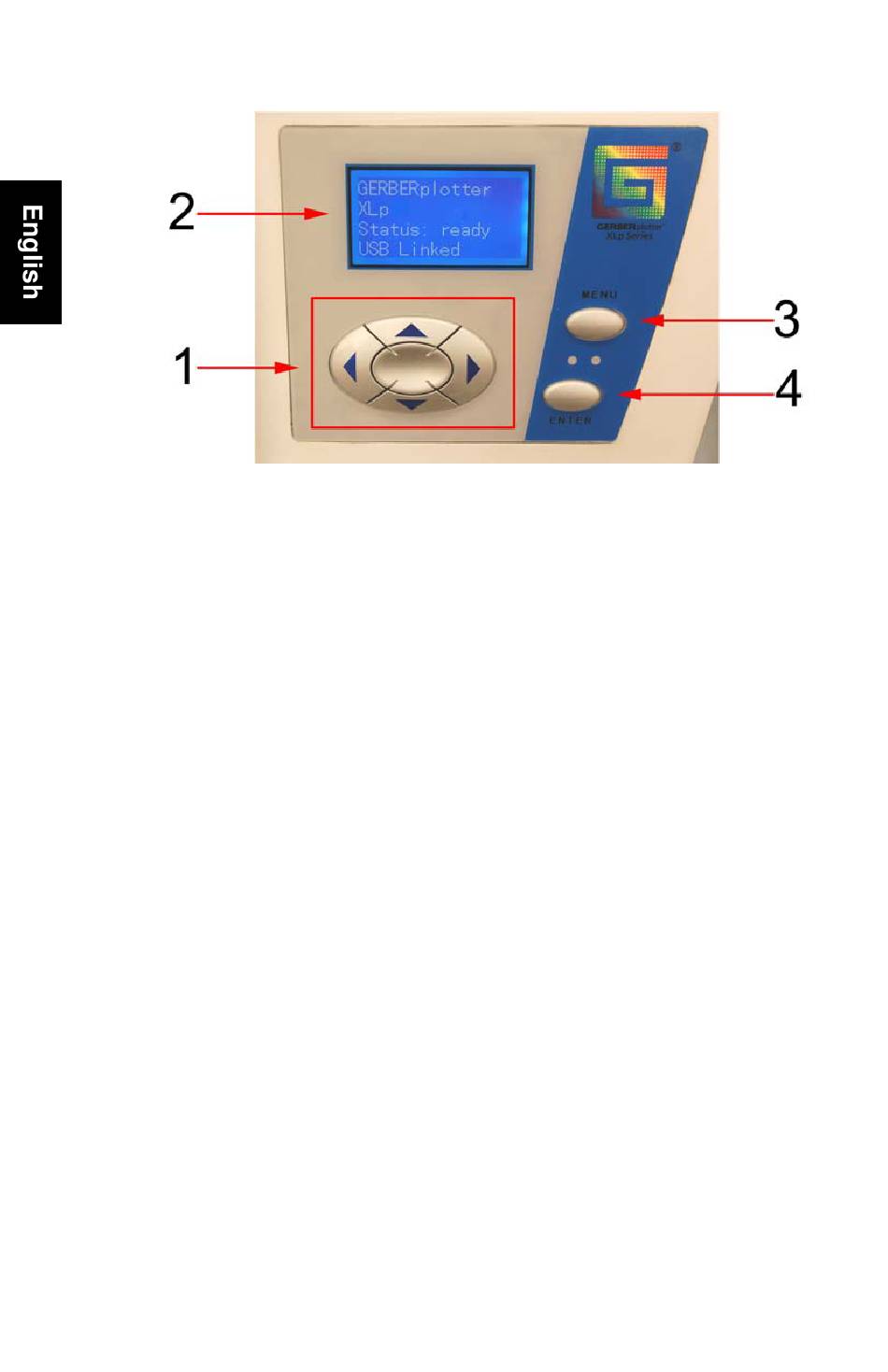

Figure 3. Control Panel - Gerber Technology GERBERplotter XLp Series Getting Started Manual

Key to Figure & Control Panel description
(1) Arrow Keys
Used to navigate commands on
the LCD screen in four directions:
left, right, up and down.
(2) LCD Screen
Displays and controls the plotter
LCD screen commands.
________________________________________________

Figure 3. Control Panel

(3) Menu button
Used to view menus on the LCD
screen.
(4) Enter button
Used when calibrating the plotter
using the LCD screen.
