在 XLp 系列绘图机上完成绘图测试
下面将逐步说明如何使用XLp系列绘图机和Winplot软件进行绘图。
关于如何使用Accumark 软件完成绘图工作,请参阅Accumark绘图相关
文档。
运行绘图机之前,请阅读安全说明部分。
确保 XLp 系列绘图机打开并处于联机状态。
1.
检查纸卷,确保纸卷已正确安装。
2.
在电脑上,点击任务栏中状态区域的 XLp 界面标志,选择 Plot
3.
Files (图 36) 。
选择测试文件
4.

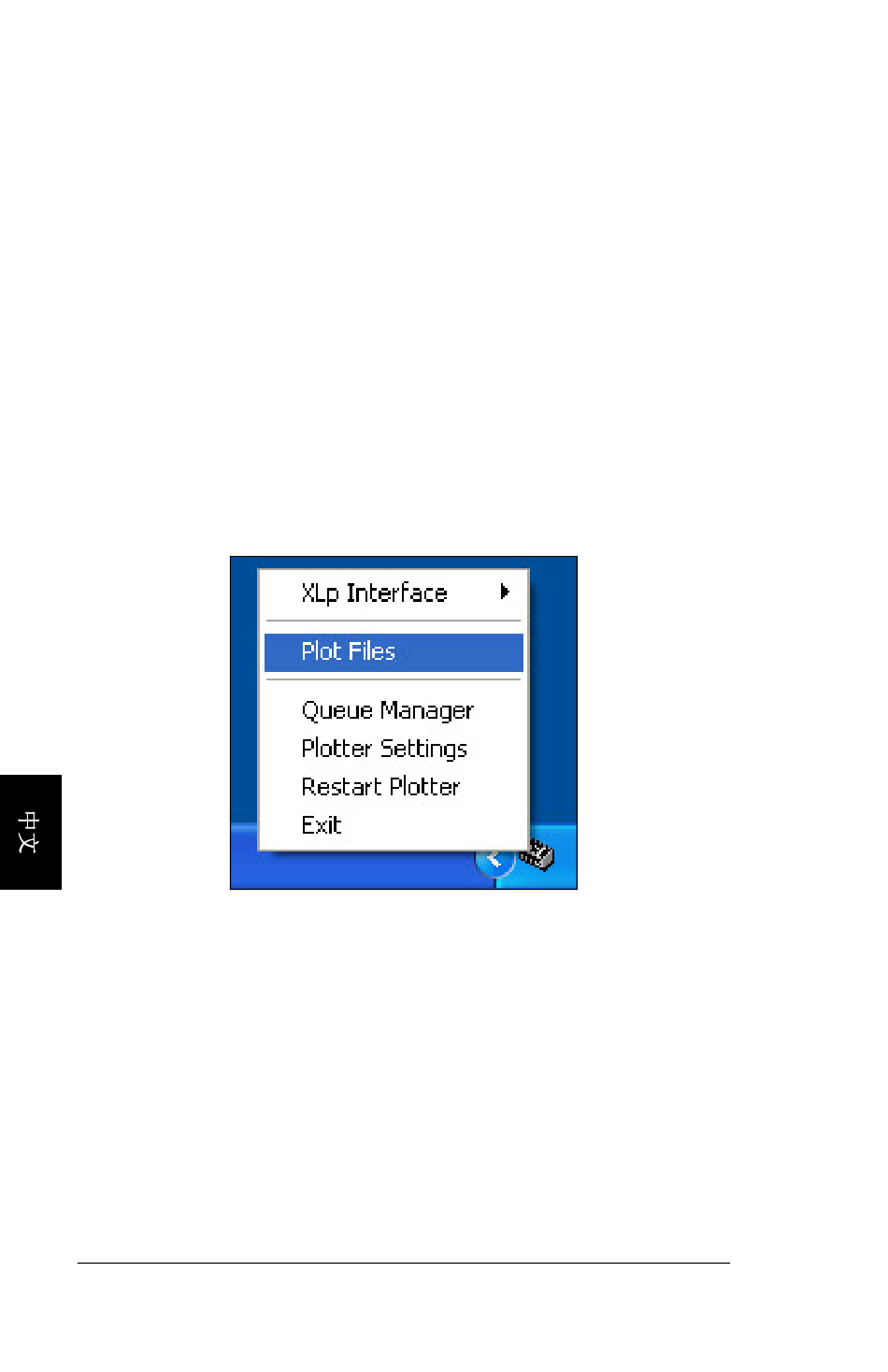

图 44. XLp 界面标志
