System Setting Window, Plot tab
The Plot tab allows configuration of the Line Width, Y Plot Origin, and
ink usage settings.

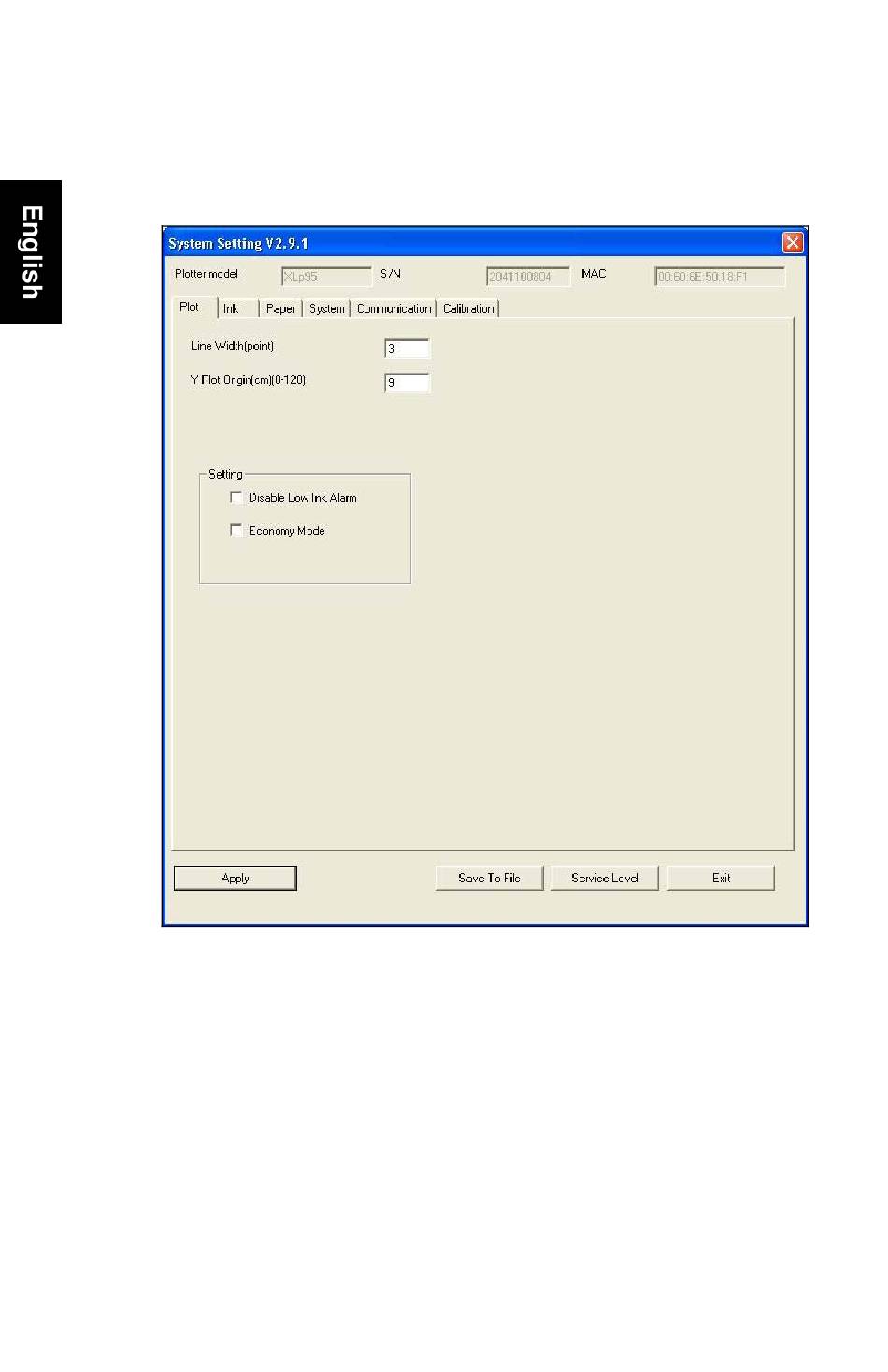

Figure 34. System Setting window, Plot tab
________________________________________________
32
