9. Plug the "B" end of the USB cable into the port underneath the
Right Side Column (Figure 11).
10. Plug the opposite end of the USB cable into the computer.
NOTE: If a network cable is used, plug it into the port next to
the USB cable and into the corresponding network port.
________________________________________________

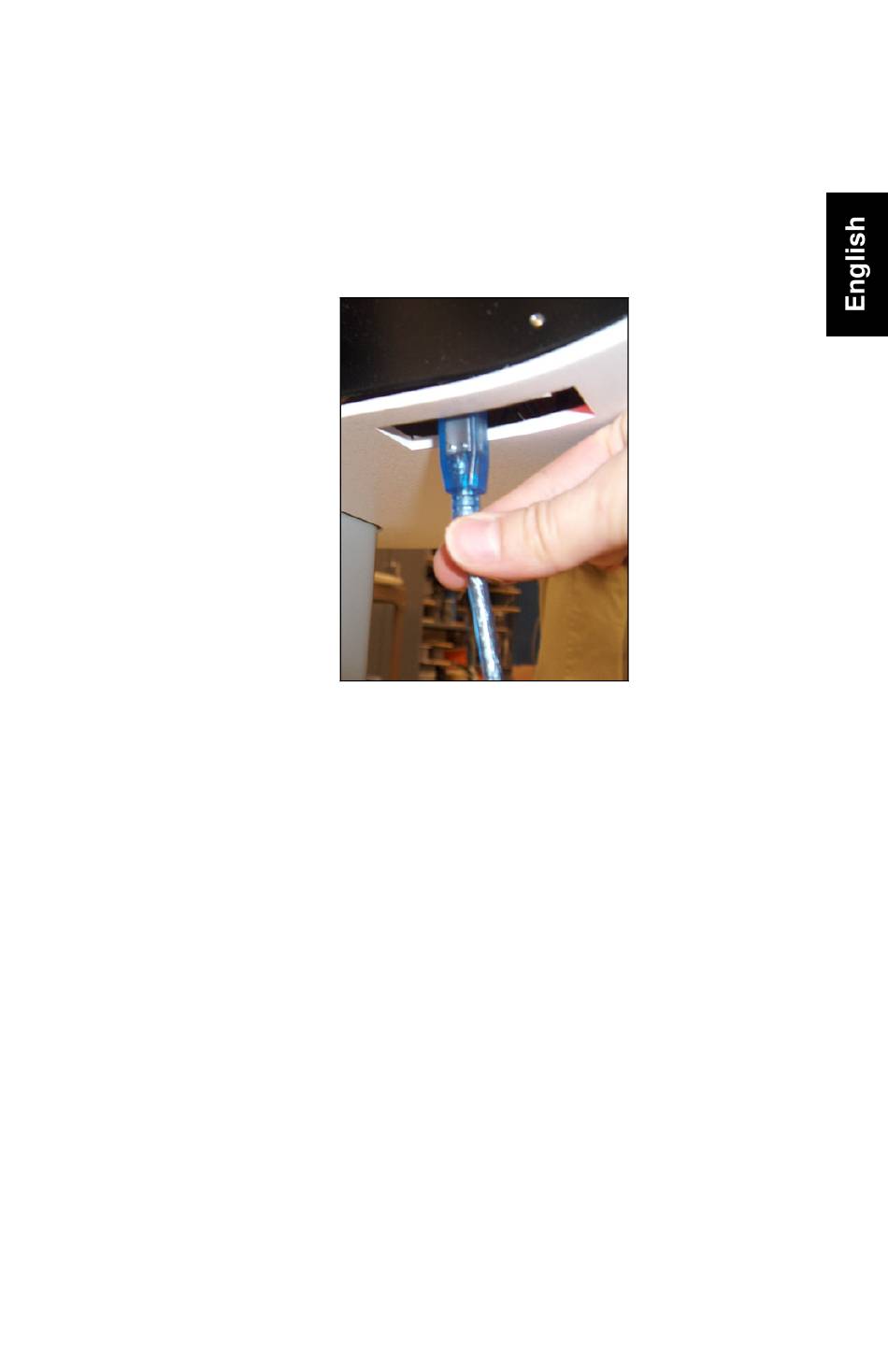

Figure 11. USB Cable
11
