14. Plug the Power Cord into the Power Cord Socket (Figure
15).
15. Plug the opposite end into a wall electrical socket.
16. Push the Power Switch to the I (ON) position to turn the
plotter power on.
NOTE: The plotter will beep when powered on.
1.
2.
________________________________________________

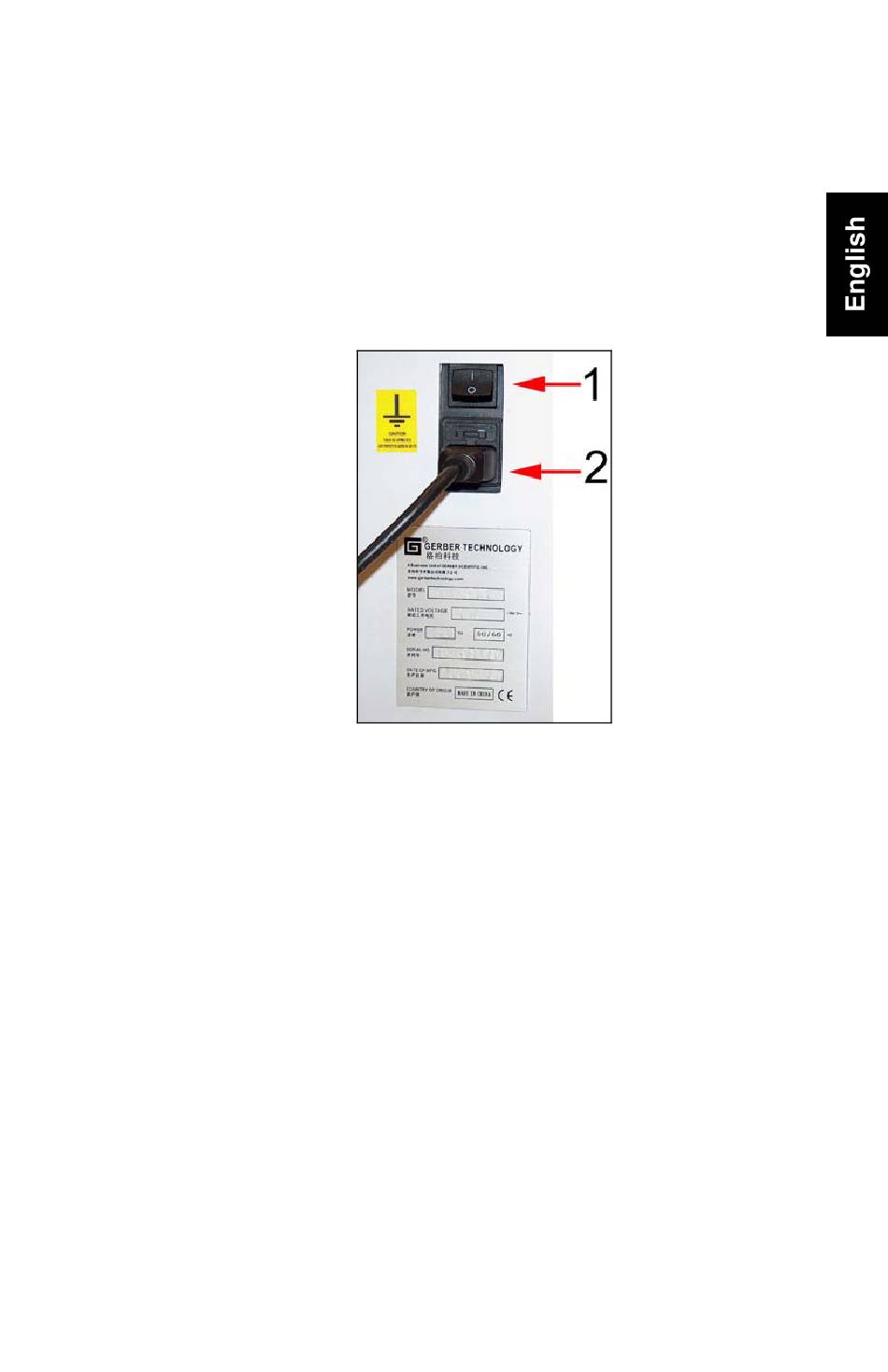

Figure 15. Power cord
Key to Figure
Power Switch in ON position
Power cord in socket
15
