7.
Place the Head Unit on top of the two side columns. Screw in
the left and right screws to attach (Figure 9). Repeat on the
opposite side.

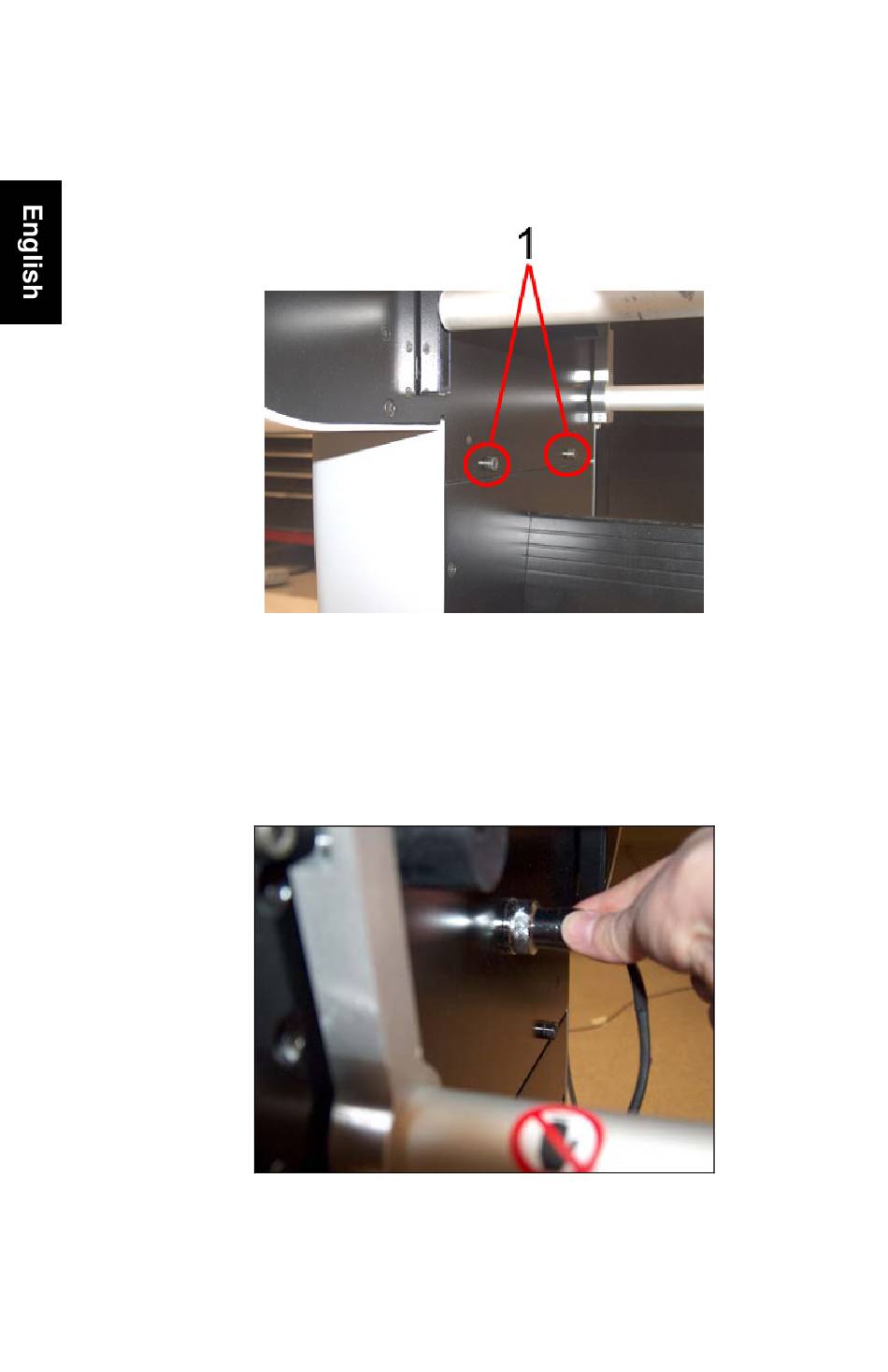

Figure 9. Two screws attaching Head Unit and Crossbeam
8.
On the interior of the Right Side Column, remove the Feed
Motor Cable from the plastic holder and plug port located
inside the Right Side Column (Figure 10).
Figure 10. Feed Motor Cable inside the Right Side Column
________________________________________________
Key to Figure
1. Screws
10
