System Setting Window, Calibration tab
The Calibration settings allow configuration of the following
calibrations: Cartridge Alignment, Cartridge Overlap, Y Head
Calibration, Y Gap Calibration, and X Length and Y Length (Box Test).

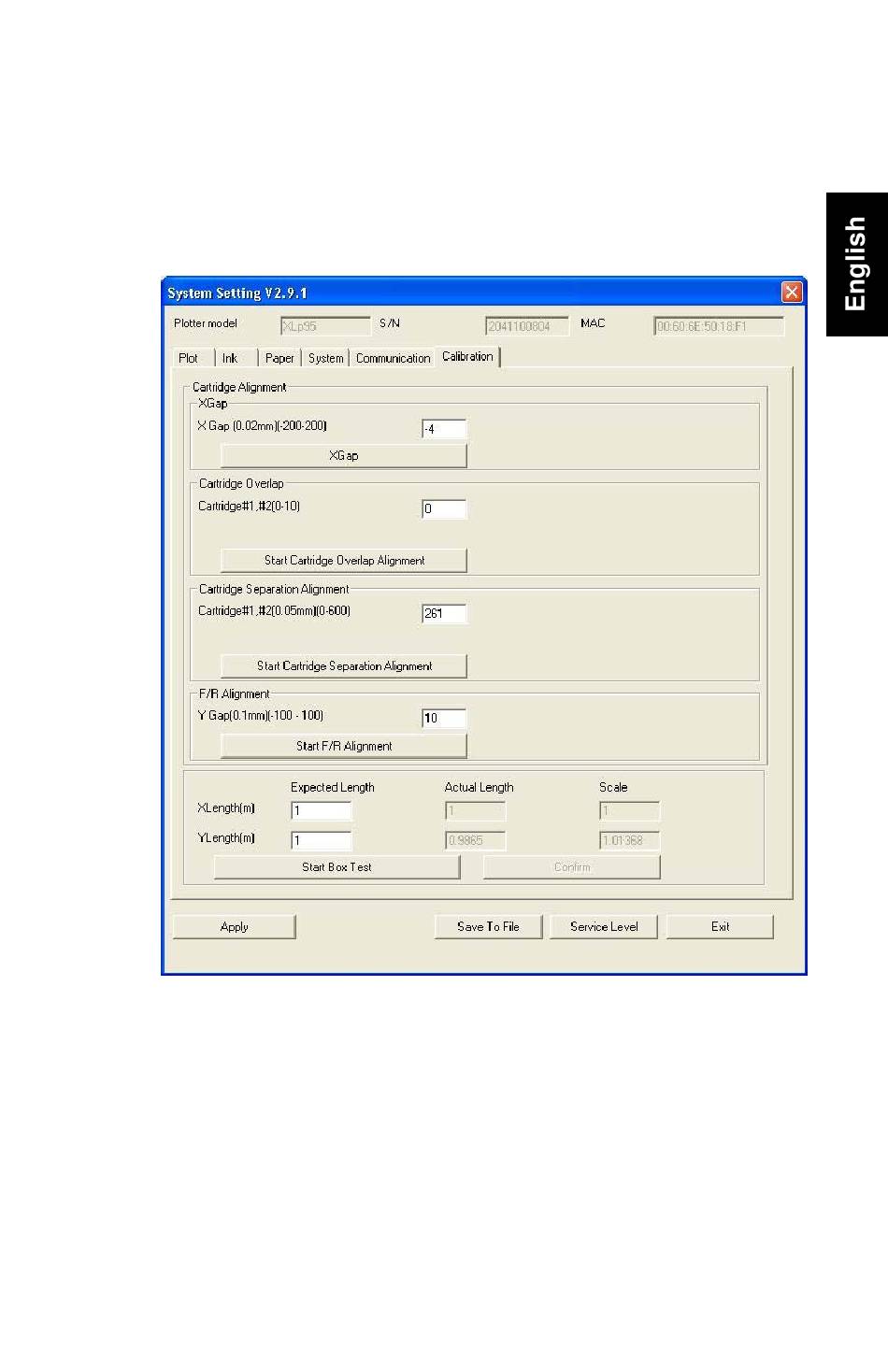

Figure 39. System Setting window, Calibration tab (XLp95 settings)
________________________________________________
37
