Mounting and Installation
■Installation

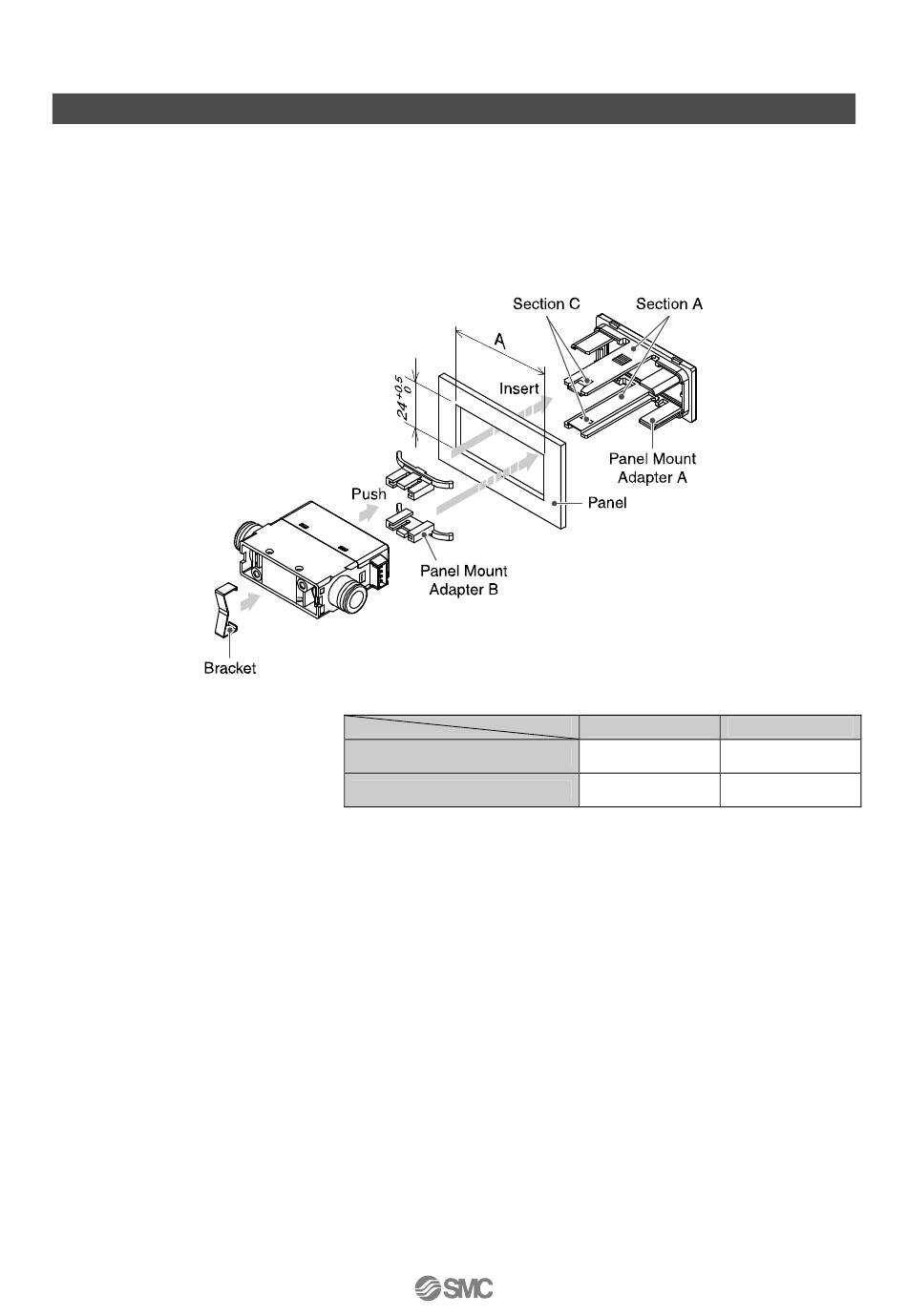

Panel mounting
•Insert Panel Mount Adapter B (supplied as an accessory) into Section A of Panel Mount Adapter A.
Push Panel Mount Adapter B from behind until the display is fixed onto the panel.
The pin of Panel Mount Adapter B engages the notched part of Panel Adapter C to fix the display.
•The switch can be mounted on a panel with a thickness of 1 to 3.2 mm.
•See the illustration below for panel cut out dimensions.
Without flow adjustment valve
With flow adjustment valve
-14-
Dimension A
Adapter
＋0.5
54
ZS-33-J
0
＋0.5
74
ZS-33-JS
0
No.PF##-OMJ0016
