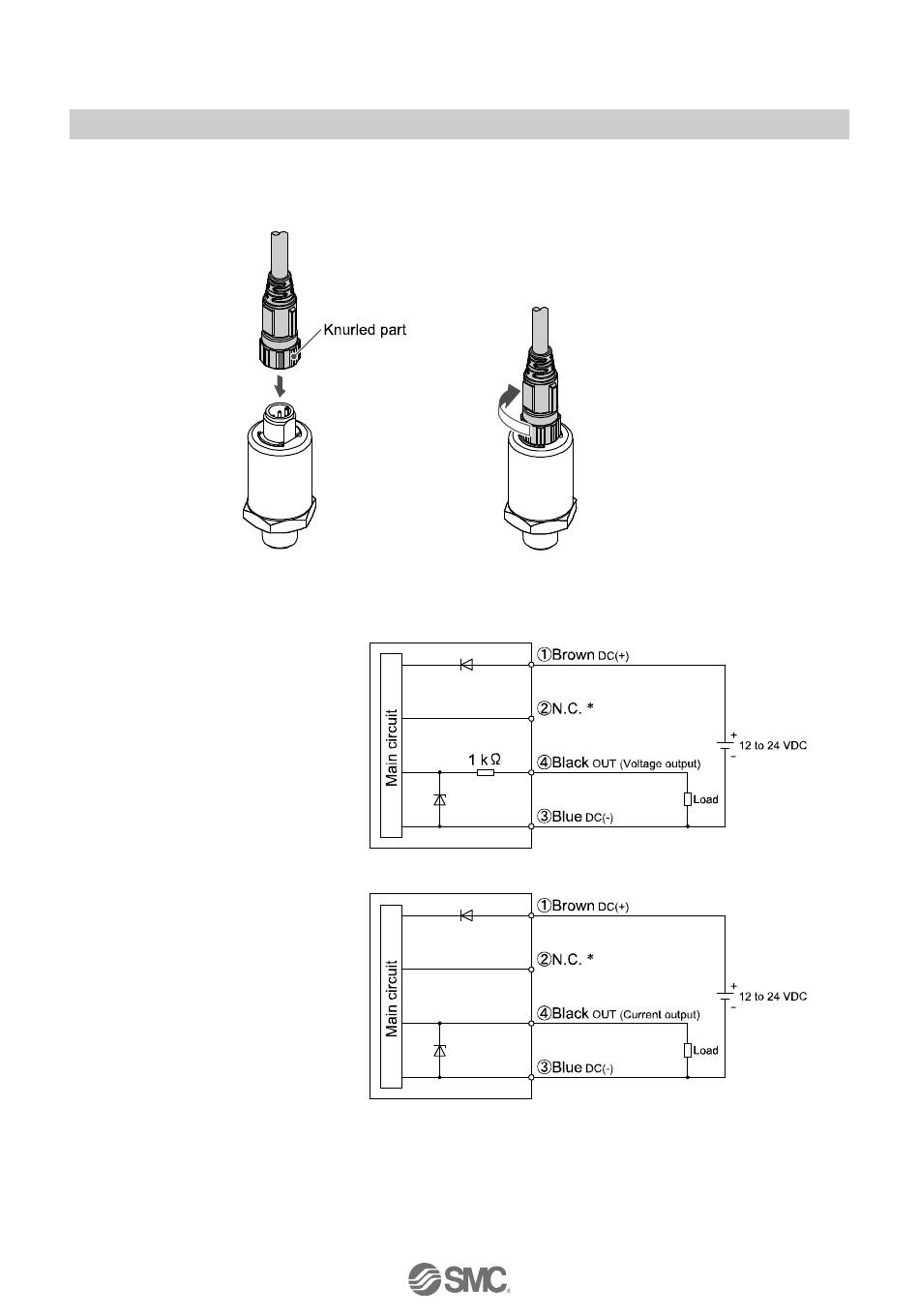

○How to connect the body and the lead wire and connector
Align the lead wire connector with the connector key groove, and insert vertically.
Connection is complete when the knurled part is fully tightened. Check that the connection is not loose.
○Internal circuit and wiring example
Output specification
PSE57□-02
Voltage output: 1 to 5 V
Output impedance: Approx. 1 kΩ
PSE57□-02-28
Current output: 4 to 20 mA
Allowable load impedance:
500 Ω or less (at 24 VDC)
100 Ω or less (at 12 VDC)
: The unconnected terminals are used in SMC, so please do not connect them.
