G-WIN Vehicle Mount
Panel PC
Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Quick Start Guide
V1.0
Model No.:
R08IB3S-VMU1
R10IB3S-VMT2
R10IB3S-VMP3
R10IB3S-VMP1
W12IB3S-VMM9
R15IB3S-VMA3 (HB)
Document Part Number: 9152111I101W
Please read this instructions before operating the device and retain them for future reference.
Advertisement
Table of Contents
Related Manuals for Winmate R08IB3S-VMU1
Summary of Contents for Winmate R08IB3S-VMU1

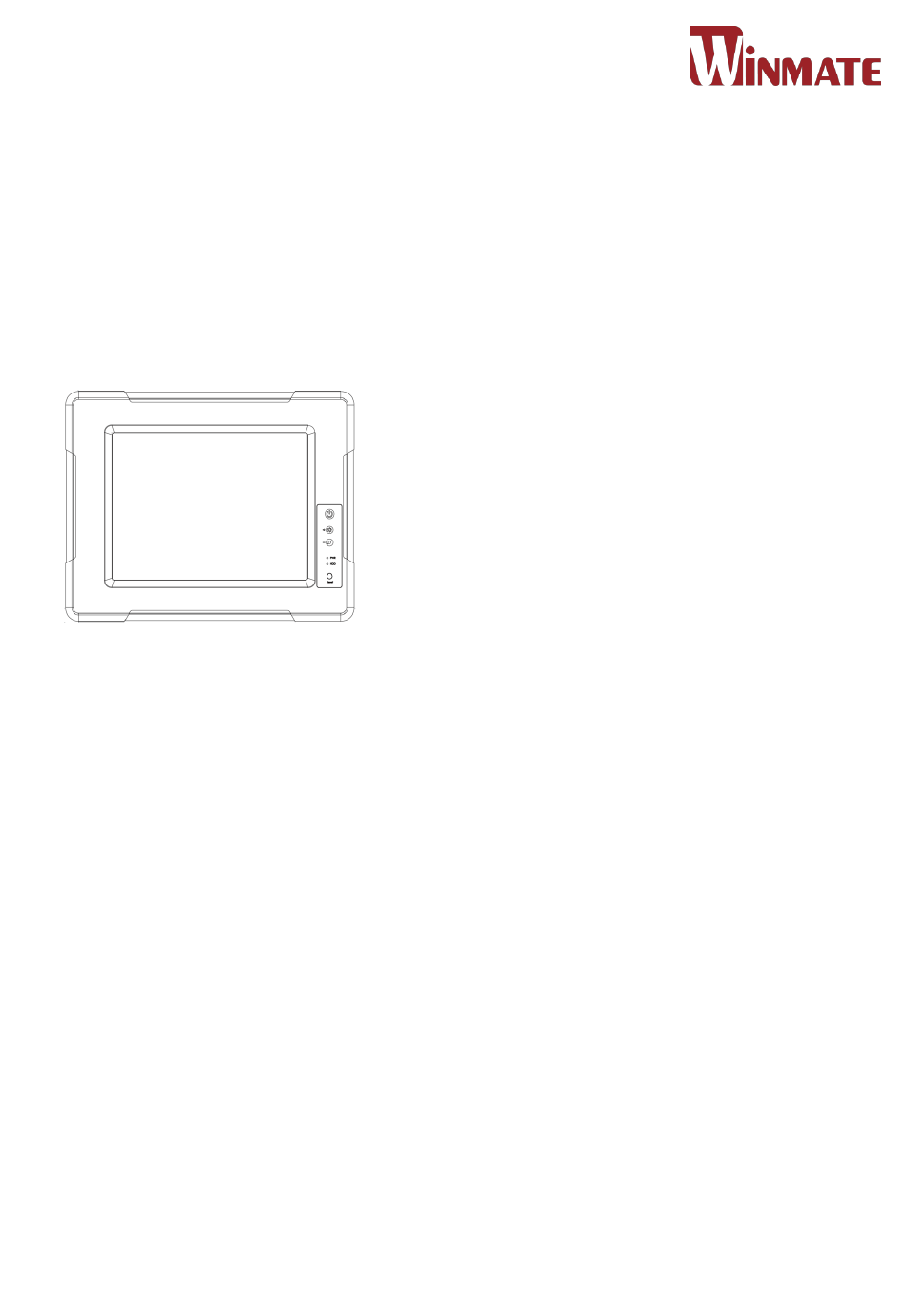

- Page 1 G-WIN Vehicle Mount Panel PC Intel® Celeron® Bay Trail-M N2930 1.83 GHz Quick Start Guide V1.0 Model No.: R08IB3S-VMU1 R10IB3S-VMT2 R10IB3S-VMP3 R10IB3S-VMP1 W12IB3S-VMM9 R15IB3S-VMA3 (HB) Document Part Number: 9152111I101W Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
- 21 - VESA Mounting - 21 - Yoke Mounting - 21 - Roof Mounting - 24 - Appendix - 26 - Appendix A: Cleaning the Monitor - 26 - Appendix B: Winmate Software Development Kit - 26 - - 2 -... - Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
- Page 4 Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for the...
- Page 5 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
-
Page 6: Introduction

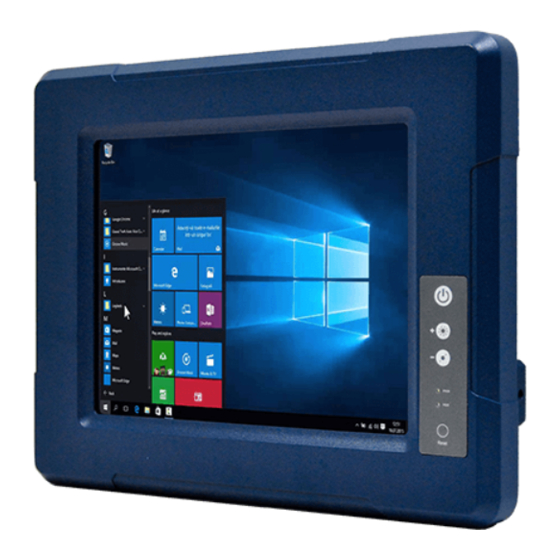

Introduction Congratulations on purchasing Winmate® G-WIN Vehicle Mount Panel PC. Winmate® G-WIN Vehicle Mount Panel PC comes with fanless, low power but high performance platform design, sunlight readable panel, WLAN integration, great ability for anti-shock & vibration, IP65 protection and anti-corrosion coating with aluminum alloy housing. -
Page 7: Package Contents
Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &... -
Page 8: Mechanical Concept
Mechanical Concept On the picture below you can see spare parts exploded drawing of a standard G-WIN Vehicle Mount Panel PC. - 8 -... -
Page 9: Description Of Parts
Description of Parts Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. G-WIN Panel PC 8.4”, 10.4” and 12.1” Physical Buttons Icon Button Function Power Turn ON or turn OFF the Panel PC. Increase the brightness of the display screen, or Brightness allows user to navigate items of a single OSD... - Page 10 LED Indicators Indicator Color Definition Green Power is ON and the device functions normally Orange Panel PC is suspended Green HDD is active HDD is inactive G-WIN Panel PC 15” - 10 -...
- Page 11 Physical Buttons Icon Button Function Power Turn ON or turn OFF the Panel PC. Clear any pending errors or events and brings a Reset system to normal condition or an initial state. Tap this button to lock / unlock the function of Lock / Unlock OSD panel.
-
Page 12: Connector Placement
Connector Placement G-WIN Panel PC 8.4” R08IB3S-VMU1 № № Description Description ① RS-232 ④ 1 x USB3.0, 1 x USB2.0 ② 9-36V DC Terminal Block ⑤ HDMI1.4a ③ RS-232 ⑥ 2 x RJ45 G-WIN Panel PC 10.4” R10IB3S-VMT2, R10IB3S-VMP3, R10IB3S-VMP1 №... - Page 13 G-WIN Panel PC 12.1” W12IB3S-VMM9 № № Description Description ① ④ RS-232 HDMI1.4a ② ⑤ RS-232/ 422/ 485 2 x RJ45 ③ ⑥ 1 x USB3.0, 1 x USB2.0 9-36V DC Terminal Block G-WIN Panel PC 15” R15IB3S-VMA3 (HB) № №...
-
Page 14: Getting Started
Getting Started Turning On Your Device To turn on the Panel PC: 1. Connect the Panel PC to the source of power. 2. Press the power on switch to turn the Panel PC on. 3. Press “DEL” to enter the CMOS setting and check the BIOS setup. Connecting to DC Power Source 1. - Page 15 Connecting to AC Power Source 1. Connect the AC adapter to the 3 pin terminal block located on the back side of the Panel PC. 2. Connect the power cord to AC adapter. 3. Plug the power cord in to the AC outlet and the device will turn on automatically.
-
Page 16: How To Enable Watchdog
How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1. -
Page 17: Turning Off Your Device
Turning Off Your Device To shut down the Panel PC: To shut down your device, do the following: Tap Start ( ) > Shut down. Wait for your Panel PC to completely turn off before disconnecting the power cord (if necessary). NOTE: If your system is not Windows 7, the method to turn off the device may slightly vary. -
Page 18: Installation
Installation Connecting to Other Devices Power Input Connector G-WIN Vehicle Mount Panel PC uses 3 Pin Terminal Block for power input and accepts voltage 9-36V DC. Minimum Voltage 9V Maximum Voltage 36V Maximum Current 6.6A Voltage Ethernet (LAN) Connector The G-WIN Panel PC supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. -
Page 19: Serial Interface (Rs-232/422/485) Connector
Serial Interface (RS-232/422/485) Connector Use RS-232/422/485serial port connector to connect your Panel PC to external devices such as mouse, modem or printer. Pin № RS232 RS422 RS485 TxD- TxD+ RxD+ RxD- USB 2.0 and USB 3.0 Connector Pin № Pin № Signal Name Signal Name USB_D-... -
Page 20: Digital Input/ Output Connector (Optional)
Digital Input/ Output Connector (Optional) Notice that Digital Input/ Output Connector is an optional connector for G-WIN Vehicle Mount Panel PC and may not be present in your device. Pin № Pin № Signal Name Signal Name DOUT3 DOUT1 DOUT2 DOUT0 DINT3 DINT1... -
Page 21: Mounting
VESA Mounting G-WIN Vehicle Mount Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw hole diameter 8.4”, 10.4”, 12.1... - Page 22 Yoke Mount solution allows to mount your device on a wall or ceiling. You can purchase dash/ yoke mounting kit from Winmate as an optional accessory. Yoke Mounting Kit: Size Winmate Part Number 8.4” 99KK08Z00010 10.4” 99KK00Z00010 Yoke Mount Kit includes: ...
- Page 23 Mounting steps: 1. Place the G-WIN Vehicle Mount Panel PC on the bracket stand, aiming screw hole for each other. 2. Secure three M5x10 screws to fix the device upon the bracket stand. 3. Secure tightly locking handle to the Panel PC. 4.
-
Page 24: Roof Mounting
Roof Mounting Roof mounting allows mounting your device on the roof. You can purchase roof mounting kit from Winmate as an optional accessory. U-Shape Mounting Kit: Size Winmate Part Number 8.4” 98K008A0000R 10.4” 98K010A00018 - 24 -... - Page 25 U-Shape Mounting Kit Mechanical Drawing For 8.4” G-WIN Vehicle Mount Panel PC For 10.4” G-WIN Vehicle Mount Panel PC - 25 -...
-
Page 26: Appendix
Don not use water or oil directly on the display screen. If droplets are allowed to drop on the screen, permanent staining or discoloration may occur. Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the Panel PC. Item File Type Description Watchdog SDK... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw www.winmate.com...
