Parameter 5 Set to PAd
Keypad control
Used to start the Drive.
Used to stop the Drive. Also used to reset the Drive after a trip.
After a reset command, the Drive will need a start command to run.
Used to reverse the direction of rotation of the motor
(when parameter 26 = On).
No. Function Type
06 Motor RW
rated
current
Enter the motor current rating (taken from the motor name plate).
The Drive rated current value is the 100% RMS output current value of the Drive. This
value can set to a lower value but not a higher value.
No. Function Type
07 Motor RW
rated
speed
Enter the rated full load speed of the motor (taken from the motor name plate).
The rated speed is used to calculate the correct slip for the motor.
The rated speed is the synchronous speed - the 100% full load slip of the motor.
Example: For a 4 pole motor with a synchronous speed of 1500rpm and a slip speed
of 70rpm, enter 1430rpm in parameter 07.
A value of zero entered into parameter 07 means slip compensation is
NOTE
disabled.
If the full load speed of the motor is above 9999rpm, enter a value of 0 in
NOTE
parameter 07. This will disable slip compensation as values greater than 9999
cannot be entered into this parameter.
No. Function Type
08 Motor RW
rated
voltage
Enter the motor rated voltage (taken from the motor name plate).
No. Function Type
09 Motor power RW
factor
The motor power factor cos ϕ (taken from the motor name plate).
Commander SE User Guide
Issue Number 5

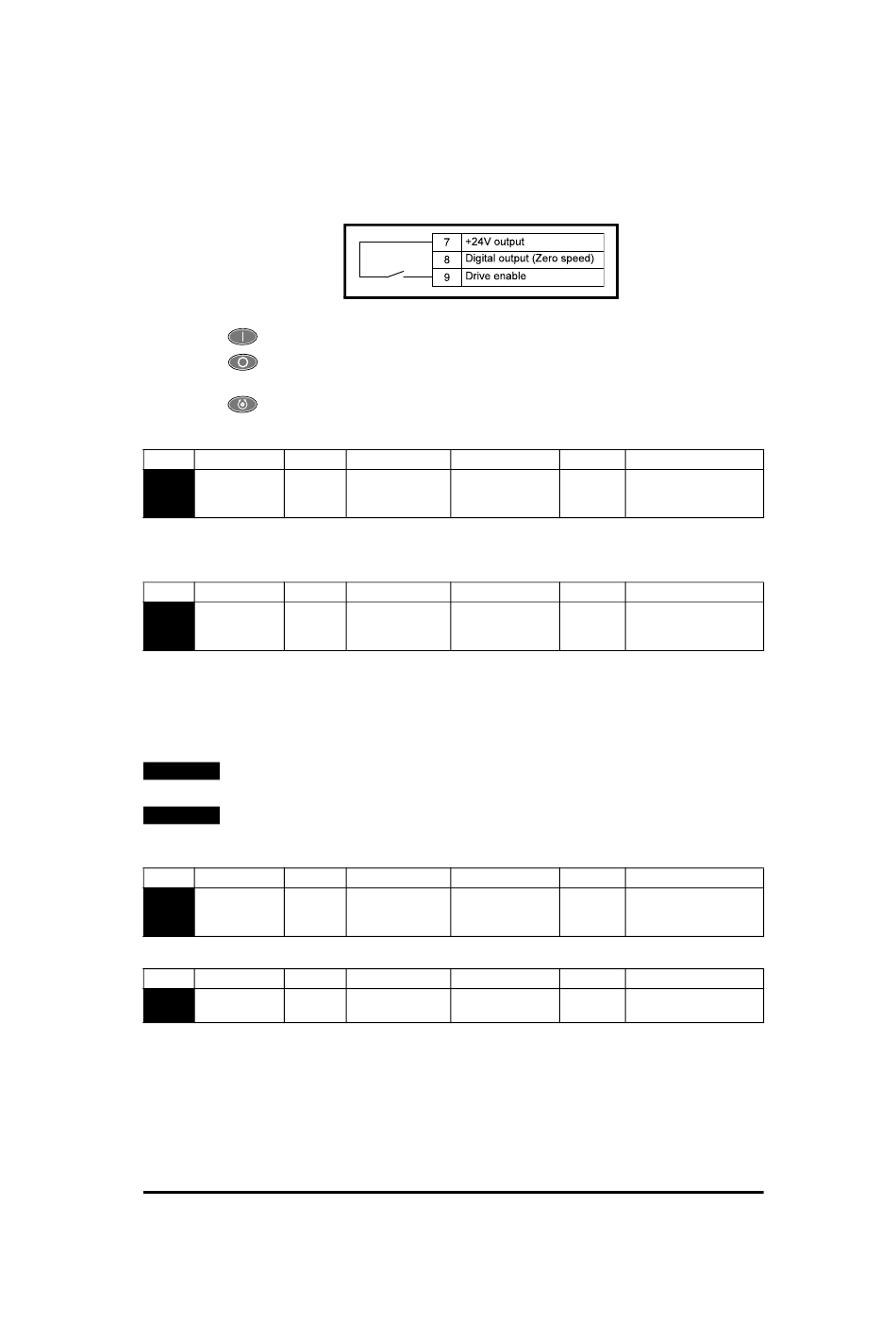

Figure 6.7 Keypad connections
Limitations Range
U 0 - Drive rated
current
Limitations Range
U 0 - 9999
Limitations Range
U 0 - 240
0 - 480
Limitations Range
U 0 - 1.00
Units Defaults
A Drive rating EUR
Drive rating USA
Units Defaults
rpm 1500 EUR
1800 USA
Units Defaults
V 230/400 EUR
230/460 USA
Units Defaults
0.85 EUR
0.85 USA
