Parameter 5 set to A1.Pr
Local voltage (A1) speed reference input with 3 preset speeds
Close terminals 12 and 13 as in the following table to select the desired preset speed.
Terminal 12 Terminal 13
open open
closed open
open closed
closed closed
If Enable negative preset speeds (parameter 17) is set, then a negative preset
NOTE
speed will cause the motor to run in the reverse direction. Alternatively,
closing terminal 11 (Run Reverse) instead of terminal 10 will change the sign
of the selected speed such that a positive preset speed will become negative
for reverse rotation.
Parameter 5 set to A2.Pr
Remote current (A2) speed reference input with 3 preset speeds.
Close terminals 12 and 13 as in the following table to select the desired preset speed:
Commander SE User Guide
Issue Number 5

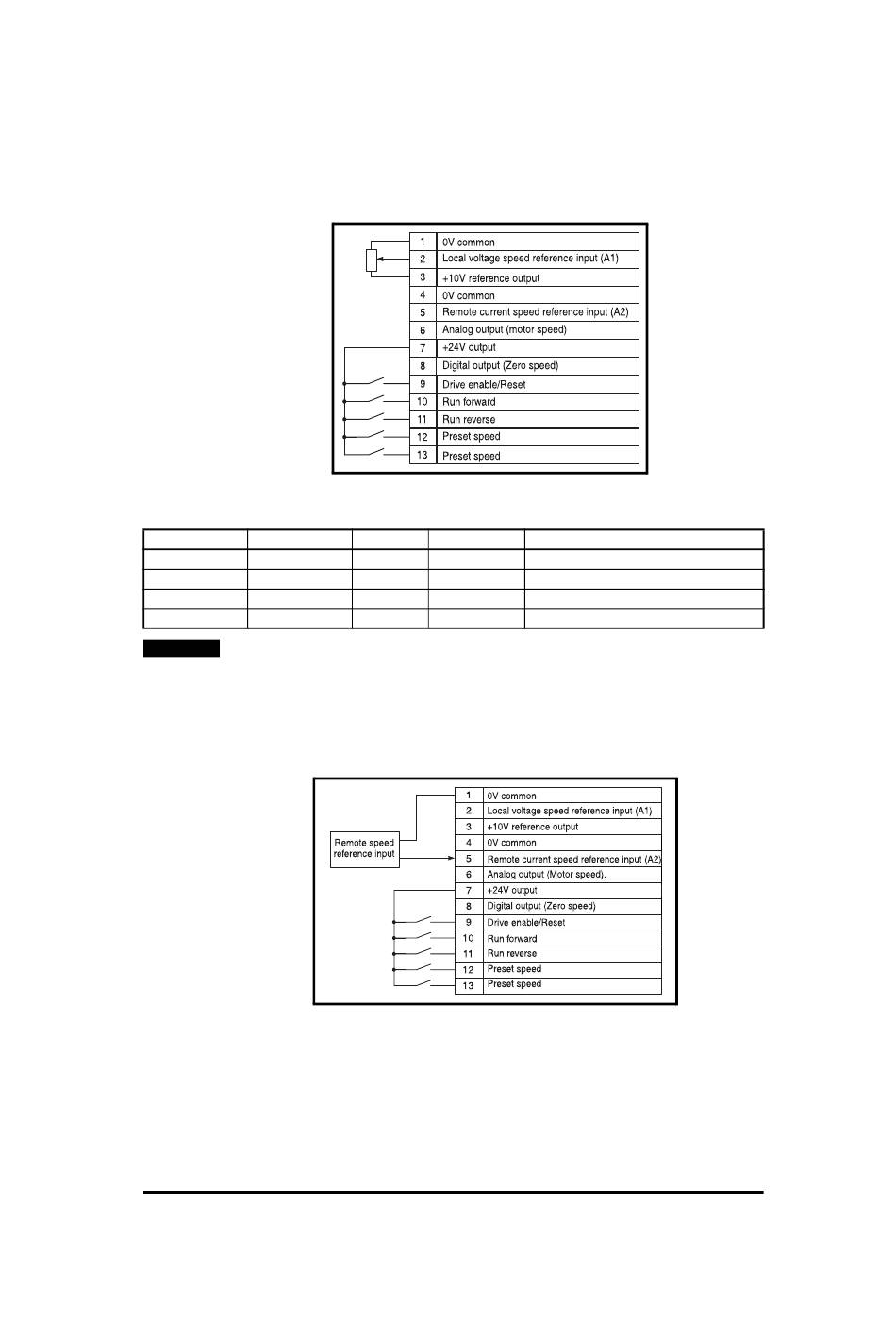

Figure 6.4 Terminal connections
Enable Run Forward
closed closed
closed closed
closed closed
closed closed
Figure 6.5 Terminal connections
Speed reference
Local speed ref. (A1)
Preset speed 2 (parameter 12)
Preset speed 3 (parameter 13)
Preset speed 4 (parameter 14)
41
