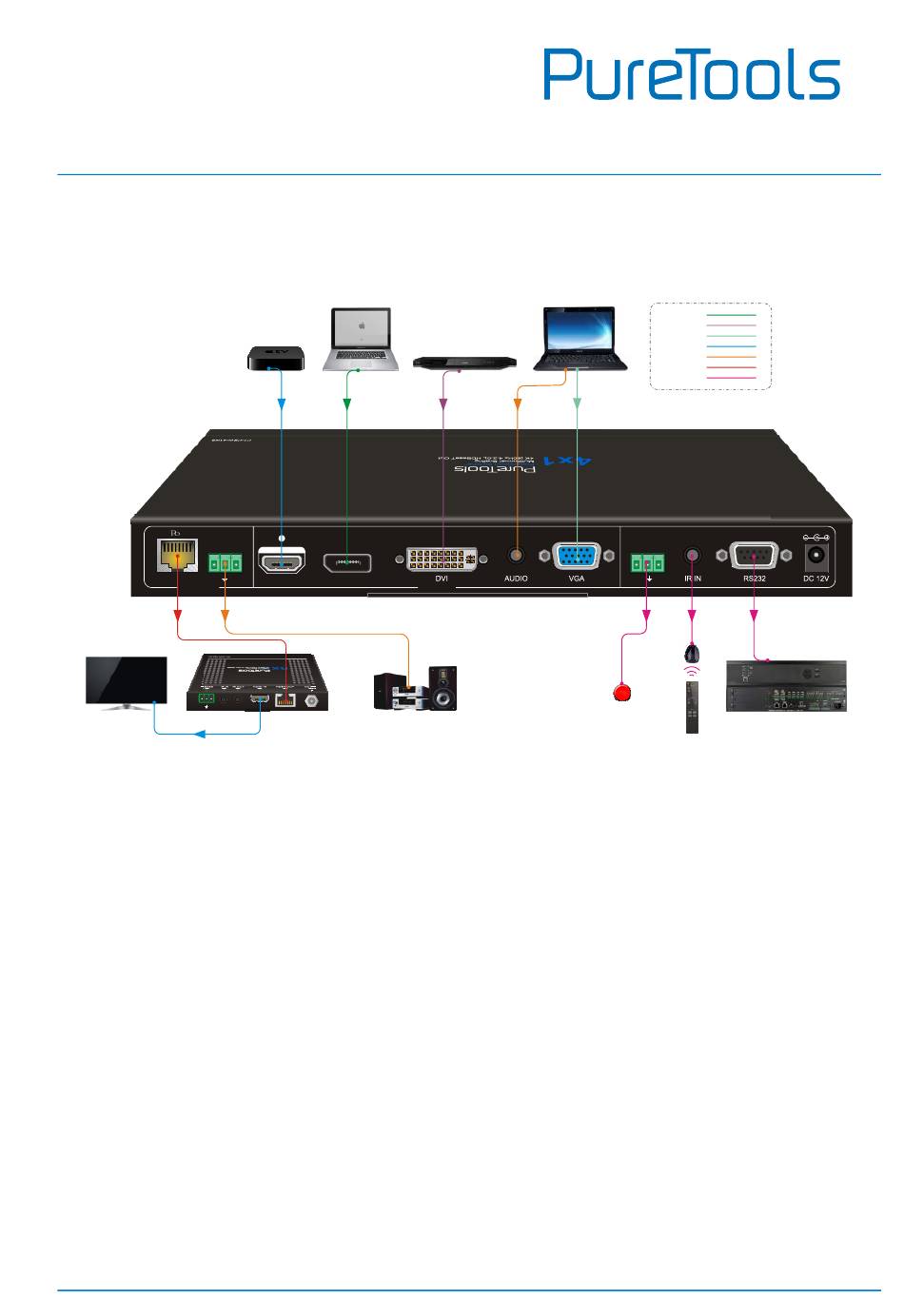

3.2 System Diagram

H
AUDIO
L
OUTPUT
Tx Rx
PT-HDBT-702-RX
TV

3.3 Connection Procedure

Step1. Connect a HDMI source device to the HDMI Input port with HDMI signal cable.
Step2. Connect a DisplayPort source device to the DP Input port with DisplayPort
signal cable.
Step3. Connect a DVI source device to the DVI Input port with DVI signal cable.
Step4. Connect a VGA source device to the VGA Input port with VGA signal cable.
Step5. Connect the audio source device to the 3.5mm stereo audio source input port
with audio cable.
Step6. Connect an HDBaseT Receiver to the HDBT output port with twisted pair.
Step7. Connect a speaker, headphone, or amplifier to the Dual-Mono analog audio
output port.
Apple TV Mac Book
R HDMI DP
Speakerr
DVD Laptop
INTPUTS
7
DP:
DVI:
VGA:
HDMI:
Audio:
HDBT:
Control:
SIG 5V
IR Receiver
Button Remote
Central Control System
