PT-PSW-41RS

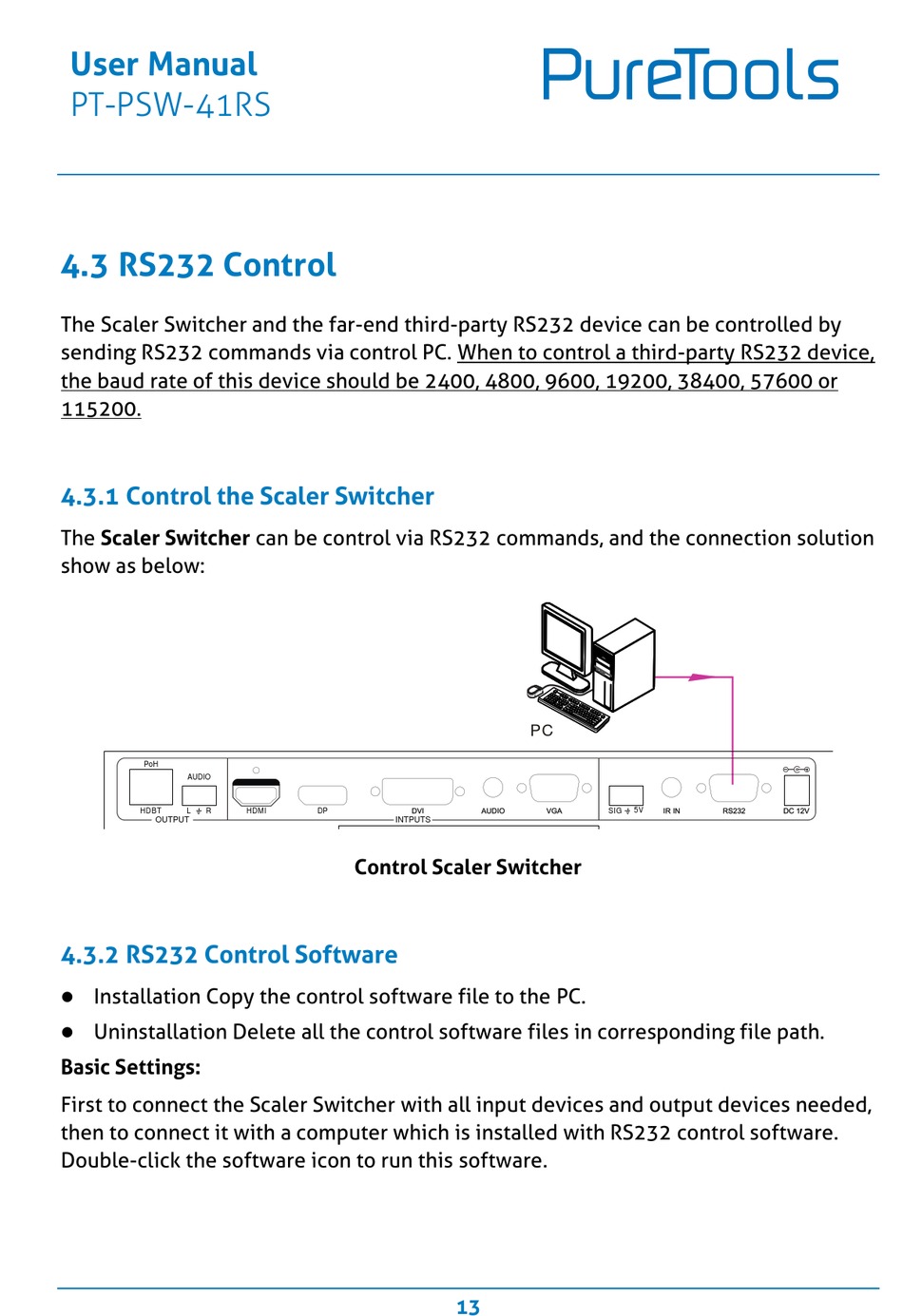

4.3 RS232 Control
The Scaler Switcher and the far-end third-party RS232 device can be controlled by
sending RS232 commands via control PC. When to control a third-party RS232 device,
the baud rate of this device should be 2400, 4800, 9600, 19200, 38400, 57600 or
115200.
4.3.1 Control the Scaler Switcher
The Scaler Switcher can be control via RS232 commands, and the connection solution
show as below:
PoH
AUDIO
HDBT
L
R
OUTPUT
4.3.2 RS232 Control Software
Installation Copy the control software file to the PC.
Uninstallation Delete all the control software files in corresponding file path.
Basic Settings:
First to connect the Scaler Switcher with all input devices and output devices needed,
then to connect it with a computer which is installed with RS232 control software.
Double-click the software icon to run this software.
HDMI
DP
INTPUTS
Control Scaler Switcher
PC
SIG
13
5V
