2. Product Appearance

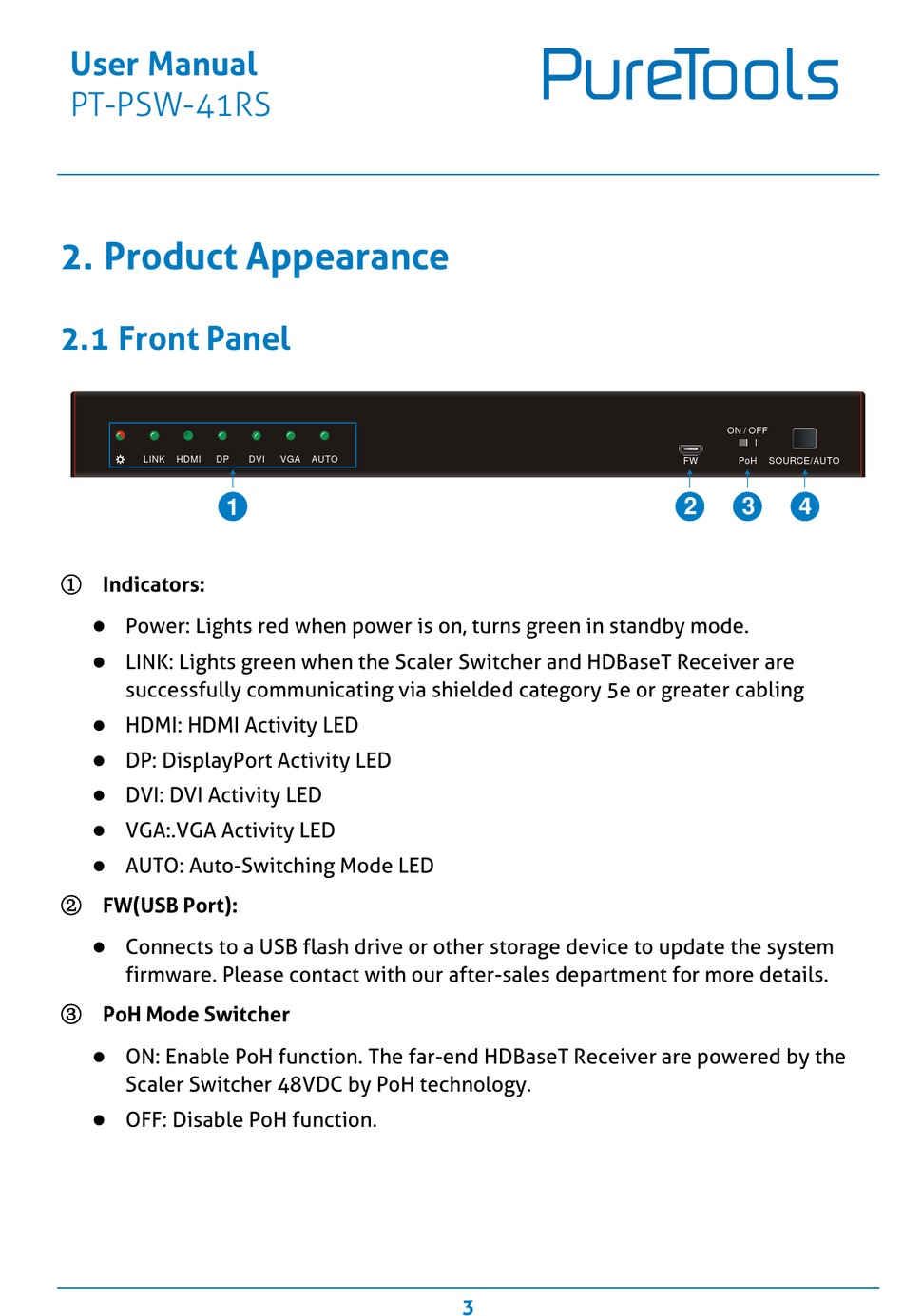

2.1 Front Panel

LINK HDMI DP
1
① Indicators:
Power: Lights red when power is on, turns green in standby mode.

LINK: Lights green when the Scaler Switcher and HDBaseT Receiver are

successfully communicating via shielded category 5e or greater cabling
HDMI: HDMI Activity LED

DP: DisplayPort Activity LED

DVI: DVI Activity LED

VGA:.VGA Activity LED

AUTO: Auto-Switching Mode LED

② FW(USB Port):
Connects to a USB flash drive or other storage device to update the system

firmware. Please contact with our after-sales department for more details.
③ PoH Mode Switcher
ON: Enable PoH function. The far-end HDBaseT Receiver are powered by the

Scaler Switcher 48VDC by PoH technology.
OFF: Disable PoH function.

DVI VGA AUTO
3
ON / OFF
FW PoH SOURCE/AUTO
2 4
3
