How to Realize the Screen Size Setting

VSP 168S supports the screen parameters to meet the requirement where user want to switch between
scale screen size and full display size (like monitor). This is only enable for a single display window.

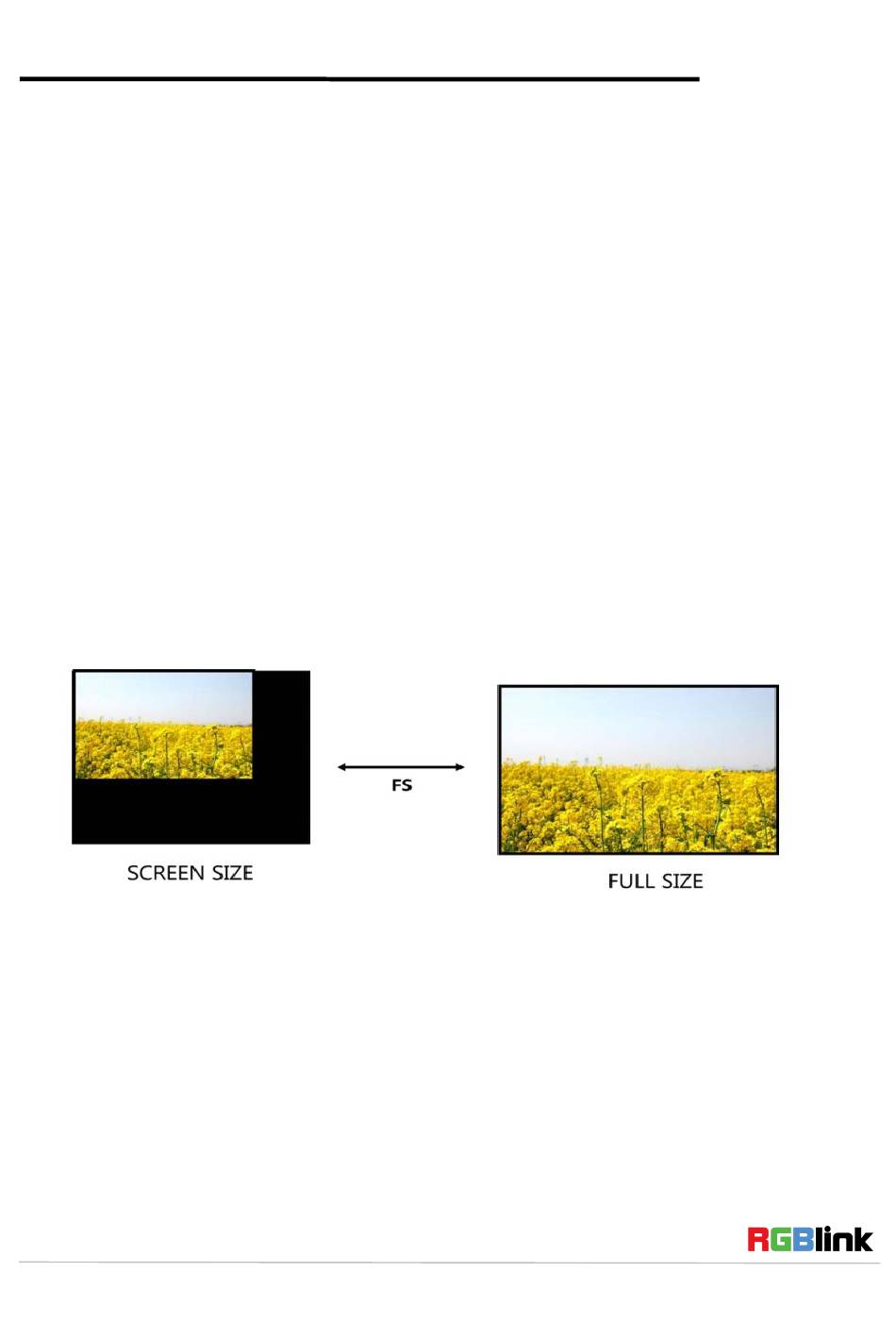

Following is an example of a screen size is1408 x 832.
Operator can define the VSP 168S output resolution from standard output resolution list or customized
the output resolution which is higher than 1408 x 832. For this application 1440x900 is an example:
Push the [MENU] button to go into the menu items, turn the knob and choose <OUTPUT>, push the
knob to confirm, then turn the knob and choose <SCREEN>, push the knob and goes into the screen
menus as following:
H SIZE--Horizontal pixels, turn knob or use the digital button to input the value1408.
V SIZE--Vertical pixels, turn knob or use the digital button to input the value 832.
H POS--Horizontal position, default value is 0, set the value as the way of H SIZE and V SIZE.
V POS--Vertical position, default value is 0, set the value as the way of H SIZE and V SIZE.
MODE-- Mode option, choose SCREEN SIZE.
