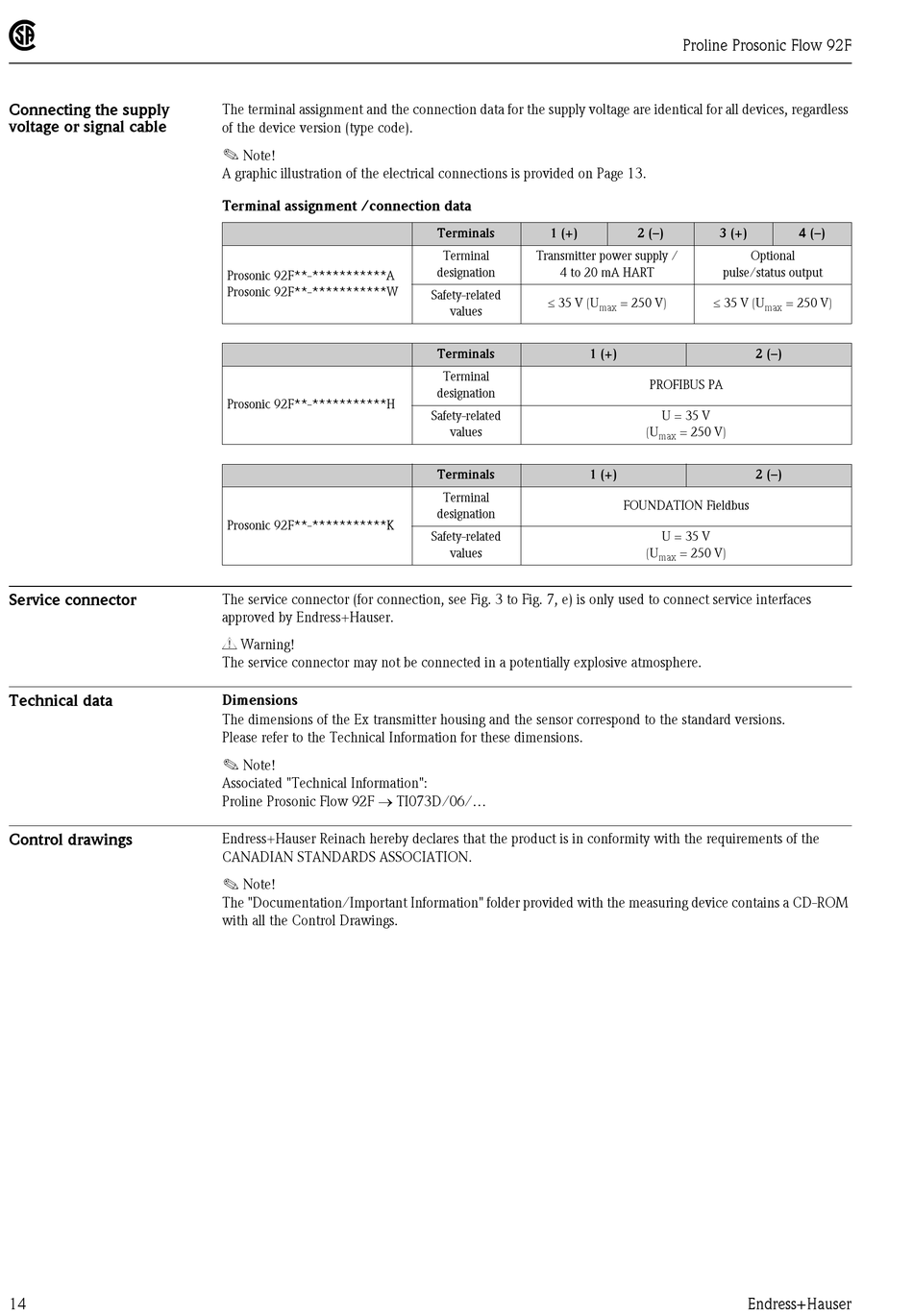

Connecting the supply
voltage or signal cable

Service connector

Technical data

Control drawings
14
The terminal assignment and the connection data for the supply voltage are identical for all devices, regardless
of the device version (type code).
!
Note!
A graphic illustration of the electrical connections is provided on Page 13.
Terminal assignment /connection data
Prosonic 92F**-***********A
Prosonic 92F**-***********W
Prosonic 92F**-***********H
Prosonic 92F**-***********K
The service connector (for connection, see Fig. 3 to Fig. 7, e) is only used to connect service interfaces
approved by Endress+Hauser.
#
Warning!
The service connector may not be connected in a potentially explosive atmosphere.
Dimensions
The dimensions of the Ex transmitter housing and the sensor correspond to the standard versions.
Please refer to the Technical Information for these dimensions.
!
Note!
Associated "Technical Information":
Proline Prosonic Flow 92F TI073D/06/...
Endress+Hauser Reinach hereby declares that the product is in conformity with the requirements of the
CANADIAN STANDARDS ASSOCIATION.
!
Note!
The "Documentation/Important Information" folder provided with the measuring device contains a CD-ROM
with all the Control Drawings.
Terminals 1 (+)
Terminal Transmitter power supply /
designation 4 to 20 mA HART
Safety-related
 35 V (U
max
values
Terminals 1 (+)
Terminal
designation
Safety-related
values
Terminals 1 (+)
Terminal
designation
Safety-related
values
Proline Prosonic Flow 92F
2 (–) 3 (+)
Optional
pulse/status output
 35 V (U
= 250 V) = 250 V)
max
2 (–)
PROFIBUS PA
U = 35 V
(U = 250 V)
max
2 (–)
FOUNDATION Fieldbus
U = 35 V
(U = 250 V)
max
Endress+Hauser
4 (–)
