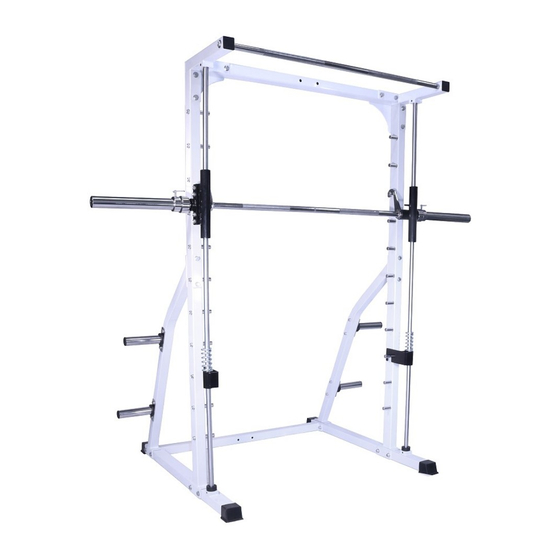

Deltech Fitness DF4900 Assembly Manual

Linear bearing smith machine
Hide thumbs Also See for DF4900:

Advertisement

Quick Links

Download this manual

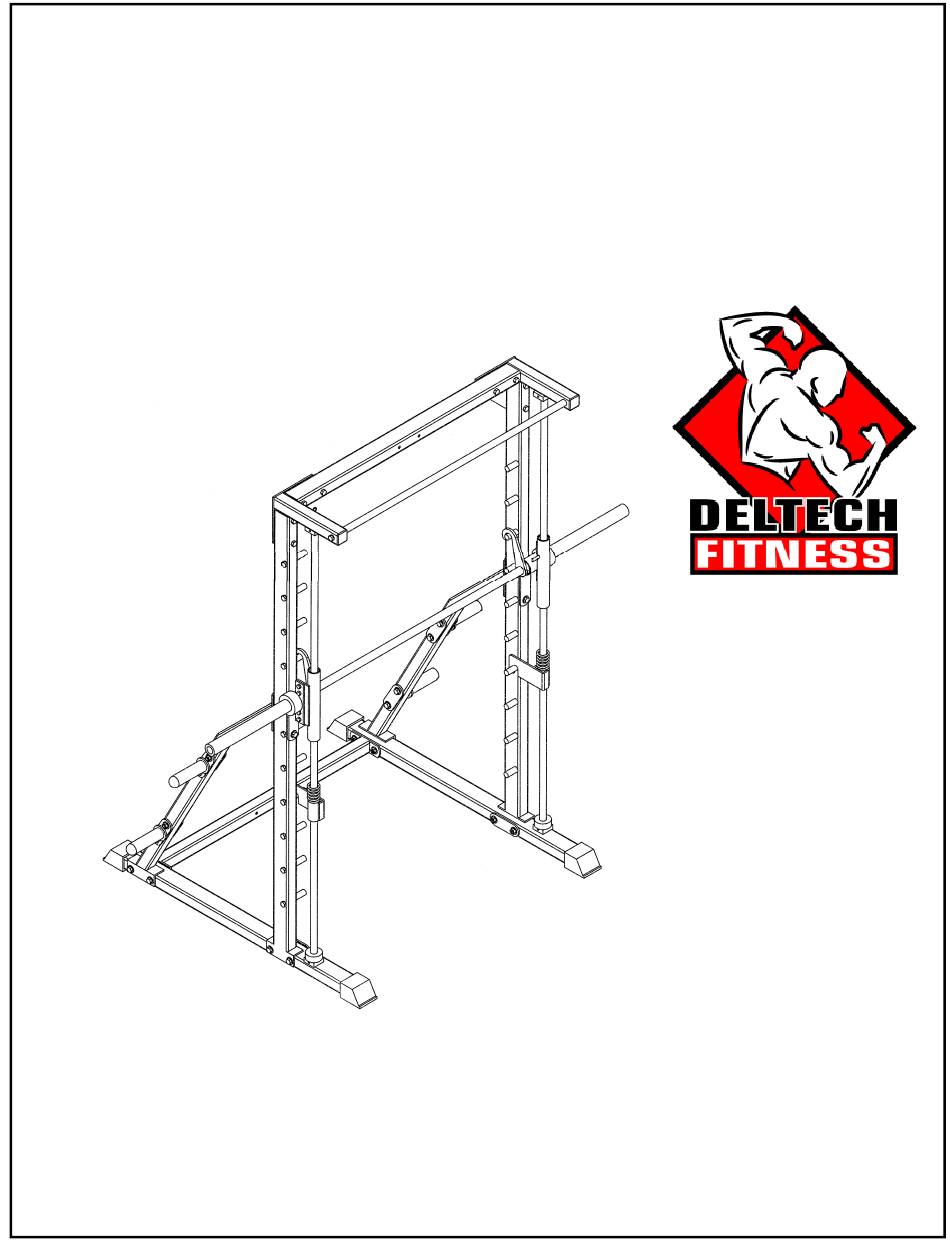

DF4900
LINEAR BEARING
SMITH MACHINE
Assembly Manual
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF4900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF4900

Summary of Contents for Deltech Fitness DF4900

  • Page 1 DF4900 LINEAR BEARING SMITH MACHINE Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 2 LH FOOT RH FOOT CROSSMEMBER TOP FRAME QTY 1 QTY 1 QTY 1 QTY 1 WEIGHT PLATE HOLDER QTY 4 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 LH & RH SAFETY CATCH LH & RH GUIDE ROD COLLAR SMITH BAR COLLARS QTY 1 EACH QTY 1 EACH QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 QTY 40 QTY 16 MOUNTING FLANGE CHROME SPRING HEX WRENCH CORNER FLANGE QTY 4 QTY 2 QTY 2 QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 5: Frame Assembly

    TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET HEX WRENCHES (INCLUDED) ASSEMBLY REQUIRES 2 PEOPLE MAKE SURE GUIDE BAR RETAINERS ARE TOWARDS THE OUTSIDE (NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT) ASSEMBLE THE LH FOOT (E), RH FOOT (F), CROSS MEMBER (G), AND THE LEFT AND RIGHT REAR SUPPORTS (C) AND (D), USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCK-...
  • Page 6 ASSEMBLE THE LH AND RH UPRIGHTS (A) & (B) TO THE LH AND RH FEET USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCKNUTS (Z). FRAME ASSEMBLY...
  • Page 7 ASSEMBLE THE REAR SUPPORTS TO THE UPRIGHTS USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCKNUTS (Z). FRAME ASSEMBLY...
  • Page 8 INSTALL HOOK CATCH RODS INTO UPRIGHTS USING BOLT, WASHER, AND LOCK WASHER. SMITH BAR CATCH ROD ASSEMBLY...
  • Page 9 INSTALL WEIGHT PLATE HOLDERS (I) USING M10 x 70MM BOLTS(R), M10 WASHERS (Y), FLANGE (EE), AND M10 LOCKNUT (AA). SLIDE RUBBER SPACERS (Q) ONTO WEIGHT PLATE SUPPORTS. REAR WEIGHT HOLDER ASSEMBLY...

  • Page 10: Guide Rod Installation

    INSERT THE GUIDE RODS (K) INTO THE RETAINERS AT THE BOTTOM. SLIDE THE RUBBER DONUTS (S) ONTO THE GUIDE RODS AND MOVE TO THE BOTTOM. INSTALL THE RH AND LH SAFETY CATCHES (O) AND HOOK ONTO ONE OF THE CATCH PINS TO SUPPORT THE GUIDE RODS. SLIDE THE CHROME SPRINGS (BB) ONTO THE GUIDE RODS (K).
  • Page 11 LOWER THE SMITH BAR (J) DOWN BETWEEN THE UPRIGHTS AND THE GUIDE RODS AND ENGAGE THE SMITH BAR HOOKS ON THE TOP SET OF CATCH RODS. SMITH BAR INSTALLATION...
  • Page 12 INSTALL THE GUIDE ROD COLLAR (N) ONTO THE GUIDE ROD, BEING CAREFUL NOT TO DAMAGE LEFT GUIDE ROD COLLAR LINEAR BEARINGS. INSTALL THE HAS NO STOP PIN. RIGHT SMITH BAR COLLAR (M) ONTO THE GUIDE ROD COLLAR HAS END OF THE SMITH BAR. BRING THE STOP PIN TO LIMIT BAR ROTATION TWO TOGETHER, ALIGNING THE...
  • Page 13 INSTALL WEIGHT SLEEVE (L) WITH WEIGHT SLEEVE BOLT (U) ONTO SMITH BAR (J) AND TIGHTEN WITH SUPPLIED HEX WRENCH. REPEAT FOR OPPOSITE SIDE. SMITH BAR ASSEMBLY...
  • Page 14 ATTACH THE CORNER FLANGE TO THE UPRIGHT USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCKNUTS (Z). REPEAT FOR OPPOSITE SIDE. TOP FRAME INSTALLATION...
  • Page 15 INSTALL THE TOP FRAME (H) ONTO THE UPRIGHTS AND GUIDE RODS AND BOLT TO CORNER FLANGE USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCKNUTS (Z). REPEAT FOR OPPOSITE SIDE. MAKE SURE ALL THE BOLTS ARE TIGHT BEFORE USING. CHECK THEM PERIODICALLY TO ENSURE THE BOLTS STAY TIGHT.
  • Page 16 THE GUIDE BAR RETAINERS ARE SLOTTED TO ALLOW FOR ADJUSTMENT. USING THE SUPPLIED HEX WRENCH, TIGHTEN THE SET SCREWS ON BOTH SIDES OF THE BOTTOM RETAINER. HOLD A LEVEL AGAINST THE GUIDE ROD TO ENSURE IT IS LEVEL. IF NECESSARY ADJUST THE SET SCREWS ON THE UPPER RETAINER.

  • Page 17: Use Instructions

    USE INSTRUCTIONS 1) SET THE SPOTTERS (9) TO THE DESIRED HEIGHT FOR A SAFE WORKOUT. 2) RAISE THE BAR AND ROTATE IT OUT UNTIL THE HOOK CLEARS THE PEGS. 3) DO EXERCISES AS DESIRED. 4) WHEN FINISHED WITH THE SET, ROTATE THE BAR BACK AND SET ON PEGS. MAKE SURE THE BAR IS SECURE BEFORE LETTING GO.

  • Page 18: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
  • Page 19 EXERCISES SQUAT BENCH PRESS INCLINE BENCH PRESS SHOULDER SHRUG CHIN-UP TOE RAISE...
