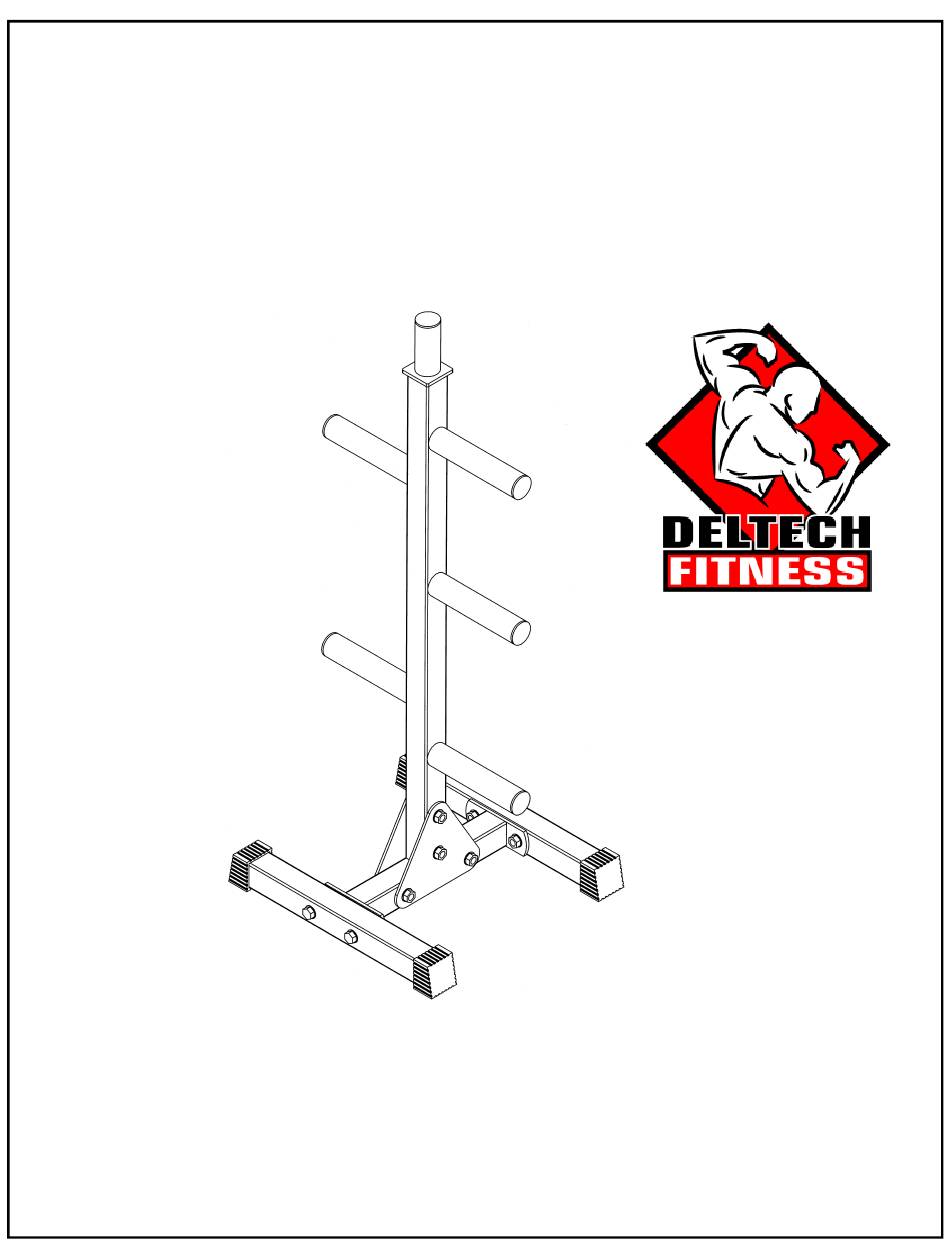

Page 1: Assembly Manual
DF7600 OLYMPIC WEIGHT TREE Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... -
Page 2: Box Contents
M12 WASHER M12 LOCKNUT TRIANGLE FLANE M12 x 70MM BOLT QTY 4 QTY 8 QTY 16 QTY 2 QTY 4 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 TOOLS REQUIRED: METRIC SOCKET SET OR WRENCHES INSTRUCTIONS: ATTACH THE SUPPORT LEGS (B) TO THE CROSSMEMBER (C) USING M12 x 70MM BOLTS (D), M12 WASHERS (F), AND M12 LOCK NUTS (G). DO NOT FULLY TIGHTEN AT THIS TIME.
- Page 4 ATTACH THE TRIANGLE FLANGES (H) TO THE CROSSMEMBER USING M12 x 85MM BOLTS (E), M12 WASHERS (F), AND M12 LOCK NUTS (G). FULLY TIGHTEN.
- Page 5 ATTACH THE BODY (A) TO THE TRIANGLE FLANGES USING M12 x 85MM BOLTS (E), M12 WASHERS (F), AND M12 LOCK NUTS (G). FULLY TIGHTEN. NOW SET THE WEIGHT TREE IN THE AREA THAT YOU WILL BE USING IT IN. WHILE MAKING SURE THAT ALL 4 FEET SIT FLAT ON THE FLOOR, FULLY TIGHTEN THE NUTS SECURING THE LEGS TO THE CROSSMEMBER.
-
Page 6: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
