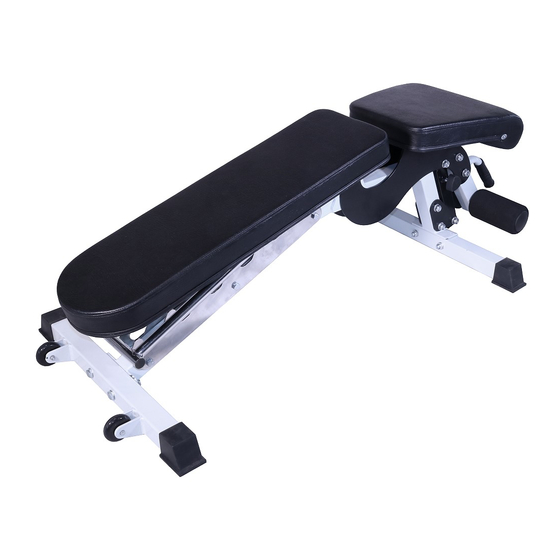

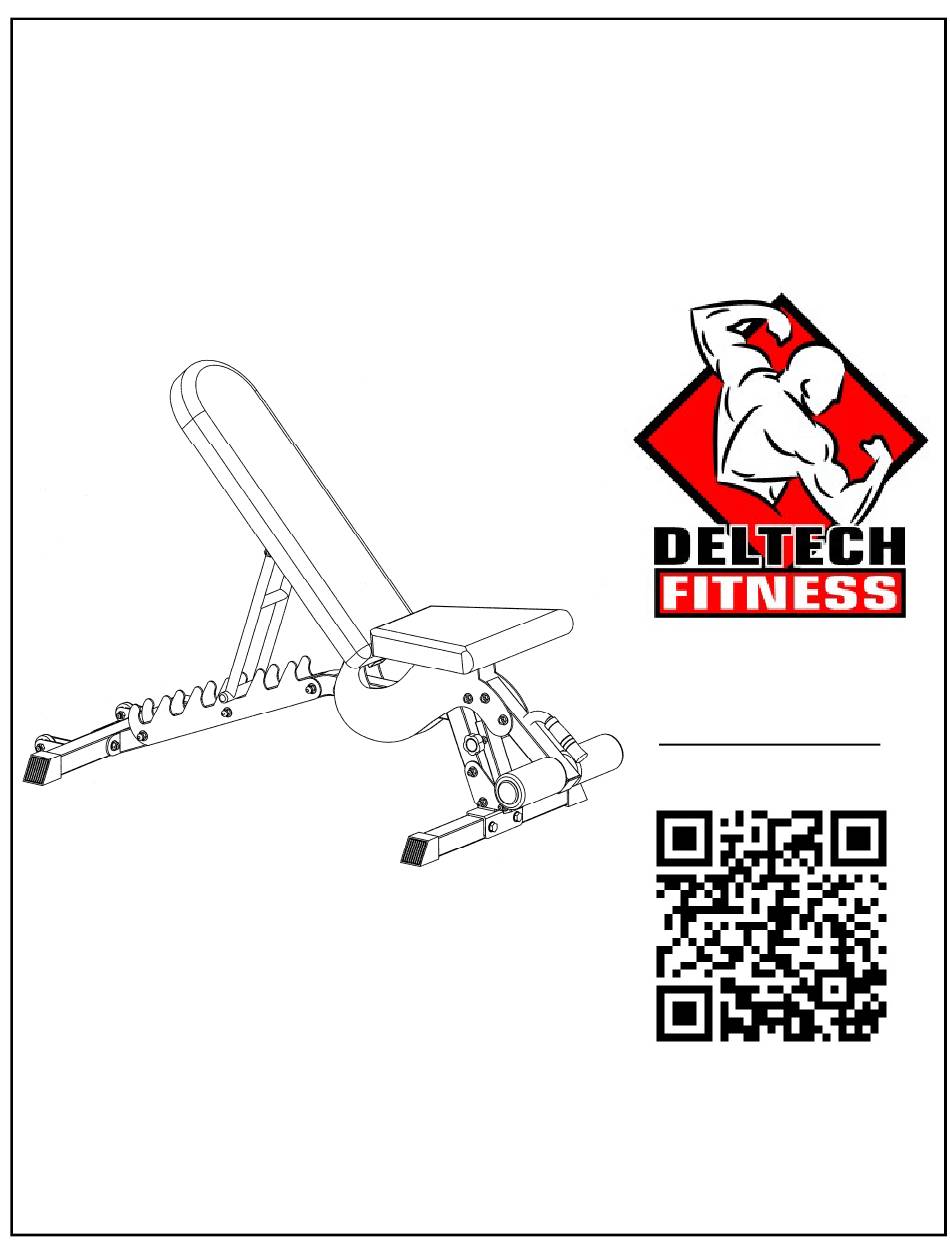

DF9800
FLAT/INCLINE/DECLINE BENCH
Assembly Manual
Assembly Video Available
Simply scan the QR code below
on your phone's camera to access
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Deltech Fitness DF9800
Summary of Contents for Deltech Fitness DF9800
- Page 1 Simply scan the QR code below on your phone’s camera to access (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 BOX CONTENTS REAR FOOT FRONT FOOT FRAME QTY 1 QTY 1 QTY 1 BACKREST MOUNT LEG HOLDDOWN ADJUSTMENT SUPPORT QTY 1 TUBE QTY 1 QTY 1 SEAT ADJUSTMENT TELESCOPING BASE TUBE QTY 1 QTY 1...
- Page 3 BOX CONTENTS RIGHT HAND ROLLER TUBE LEFT HAND SEAT FLANGE QTY 1 SEAT FLANGE QTY 1 QTY 1 CLAMP PLATE ADJUSTMENT FLANGE QTY 2 SEAT PAD QTY 2 QTY 1 BACKREST PAD ROLLER PADS QTY 1 QTY 2...
- Page 4 M12 x 90MM BOLT M8 x 25 MM BOLT M8 WASHER QTY 4 QTY 10 QTY 4 QTY 10 MUSHROOM CAP QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 5 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE RISK OF INJURY CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
- Page 6 MAKE SURE THAT WHEEL FLANGES ARE FACING AS SHOWN TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC Some components may be pre-installed INSERT.) PLEASE SEE BACK PAGE FOR MORE INFORMATION from the factory...
- Page 7 MAKE SURE LARGER RADIUS IS ON THE TOP INSTALL ADJUSTMENT FLANGES “N” TO FRAME USING M12 x 75MM BOLTS “DD”, M12 WASHERS “BB”, AND M12 LOCK NUTS “CC”. DO NOT TIGHTEN NUTS AT THIS TIME. ADJUSTMENT FLANGE INSTALLATION...
- Page 8 INSTALL ADJUSTMENT SUPPORT “D” TO BACKREST MOUNT “F’ USING M12 x 150MM BOLT “AA”, M12 WASHERS “BB”, AND M12 LOCK NUT “CC”. DO NOT TIGHTEN NUT AT THIS TIME. BACKREST FRAME ASSEMBLY...
- Page 9 INSTALL BACKREST FRAME ASSEMBLY AND LEFT AND RIGHT HAND SEAT FLANGES “I” AND “J” TO FRAME USING M12 x 90MM BOLT “EE”, M12 WASHERS “BB”, AND M12 LOCK NUTS “CC”. DO NOT TIGHTEN NUT AT THIS TIME. BACKREST FRAME & SEAT FLANGE INSTALLATION...
- Page 10 YOU WILL NEED TO LOOSEN THIS BOLT TO ALLOW TELESCOPING TUBE TO SLIDE IN SLIDE TELESCOPING TUBE “H” INTO THE SEAT ADJUSTMENT BASE “G”. (YOU WILL NEED TO LOOSEN BOLT TO ALLOW TELESCOPING TUBE TO SLIDE IN. AFTER TELESCOPING TUBE IS INSTALLED, RETIGHTEN BOLT.) TELESCOPING TUBE ASSEMBLY...
- Page 11 INSTALL THE TELESCOPING TUBE ASSEMBLY TO THE SEAT FLANGES AT THE TOP USING M12 x 90MM BOLT “EE”, M12 WASHERS “BB”, AND M12 NUT “CC”. ATTACH THE TELESCOPING TUBE ASSEMBLY TO THE ADJUSTMENT FLANGES AT THE BOTTOM USING M12 x 75MM BOLT “DD”, M12 WASHERS “BB”, AND M12 NUT “CC”.
- Page 12 ATTACH SEAT PAD “O” TO THE SEAT FLANGES USING M10 x 25MM BOLTS “FF” AND M10 WASHERS “GG”. MAKE SURE ALL BOLTS ARE THREADED INTO SEAT PAD BEFORE TIGHTENING. SEAT INSTALLATION...
- Page 13 BACKREST AND LEG HOLDDOWN ASSEMBLY...
- Page 14 SECURELY TIGHTEN THE 2 BOLTS HOLDING THE ADJUSTMENT FLANGES TO THE FRAME NEXT TIGHTEN THE BOLT THAT FASTENS THE SEAT ADJUSTMENT BASE TO THE ADJUSTMENT FLANGES. DO NOT OVERTIGHTEN THIS BOLT. MAKE SURE THE SEAT ADJUSTMENT BASE IS ABLE TO PIVOT FREELY. TIGHTEN THE 2 BOLTS HOLDING THE SEAT FLANGES TO THE LEG...
- Page 15 TO REMOVE WOBBLE IN THE BACKREST, TIGHTEN THE BOTTOM PIVOT BOLT, BEING CAREFUL NOT TO TIGHTEN IT TOO MUCH ,WHICH WILL NOT ALLOW THE BACKREST TO ROTATE. TO FURTHER REMOVE WOBBLE, TIGHTEN THE BOLT CONNECTING THE BACKREST PAD TO THE LADDER SUPPORT, BEING CAREFUL NOT TO TIGHTEN IT TOO MUCH WHICH WILL NOT ALLOW THE LADDER SUPPORT TO ROTATE.
- Page 16 SLIDE ROLLER TUBE “K” INTO LEG HOLDER TUBE “E”. SLIDE ROLLER PADS “Q” ONTO ROLLER TUBE ON EACH END. INSERT MUSHROOM CAPS “II” ONTO ROLLER TUBE AND INSTALL WITH RUBBER MALLET. ROLLER PAD ASSEMBLY...
- Page 17 THE LOCKNUT GUIDE IF YOUR WEIGHT EQUIPMENT FEELS WOBBLEY AND UNSAFE ALL DELTECH FITNESS IT COULD BE BECAUSE YOU DO PRODUCTS COME WITH NOT HAVE YOUR LOCKNUTS LOCKNUTS. LOCKNUTS ARE TIGHT ENOUGH. LOCKNUTS CAN NUTS WITH A SPECIAL PLASTIC NOT BE TIGHTENED ALL THE PIECE PRESSED INTO THE TOP WAY BY HAND.
