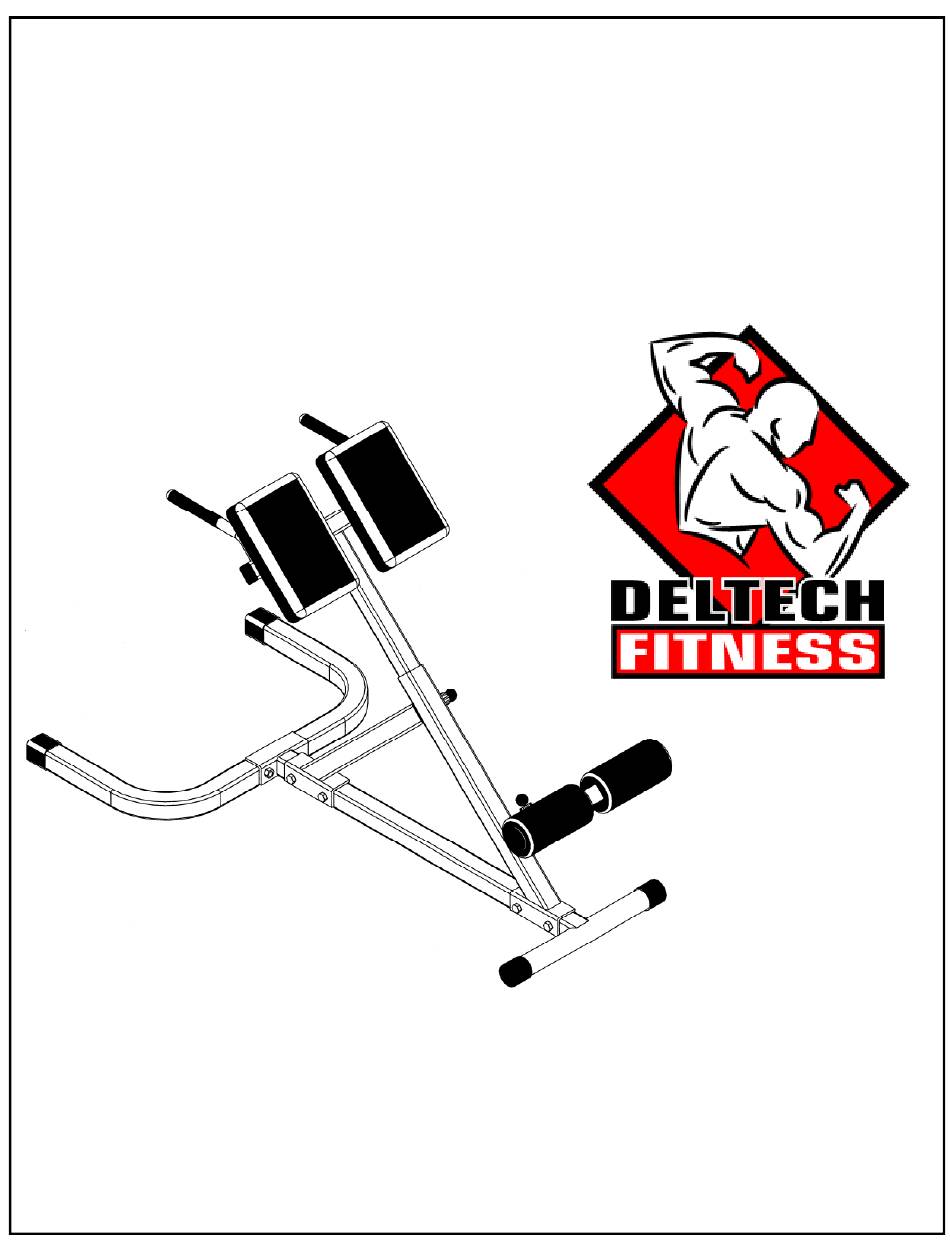

Page 1: Assembly Manual

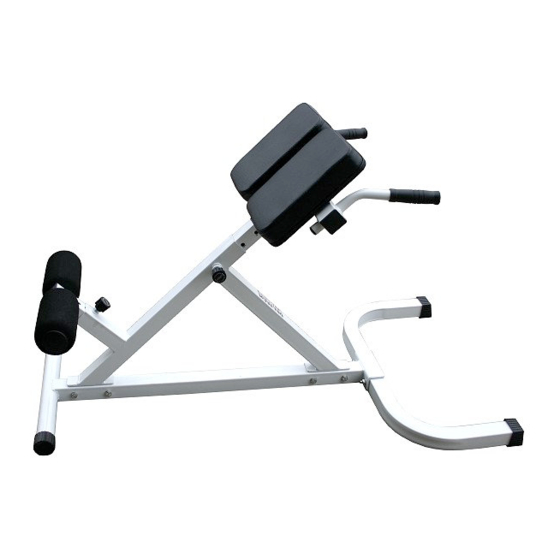

DF406 45 DEGREE HYPEREXTENSION BENCH Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... -
Page 2: Box Contents
QTY 1 QTY 1 ROLLER PAD ROLLER PAD TUBE QTY 2 QTY 1 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 10MM LOCKNUT QTY 4 QTY 4 QTY 6 QTY 6 MUSHROOM CAP QTY 2 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 BOTTOM FRAME ASSEMBLY TOOLS REQUIRED: ADJUSTABLE WRENCHES OR SOCKET SET INSTALL THE BOTTOM FRAME (A) TO THE FRONT FOOT (E) , ALIGNING THE HOLES IN THE FRONT FLANGE WITH THE HOLES IN THE FOOT. ASSEMBLE THE BOTTOM FRAME TO THE FRONT FOOT USING THE M10 x 75MM BOLTS (P), M10 WASHERS (T) AND M10 LOCKNUT (S).
- Page 5 UPPER FRAME ASSEMBLY ASSEMBLE THE UPPER FRAME (F) TO THE BOTTOM FRAME ASSEMBLY USING THE M10 x 75MM BOLTS (P), M10 WASHERS (T) AND M10 LOCKNUT (S). INSTALL THE PULL-PINS (0).
- Page 6 PAD FRAME ASSEMBLY ASSEMBLE THE ADJUSTMENT ARM (B) TO THE PAD FRAME (C) USING THE M10 x 65MM BOLTS (Q), M10 WASHERS (T) AND M10 LOCKNUT (S). THEN INSTALL THE 2” CAPS (L) .
- Page 7 PAD FRAME ASSEMBLY ASSEMBLE THE PADS (D) TO THE PAD FRAME USING THE M8 x 25MM BOLTS (R) AND M8 WASHERS ASSEMBLE THE HANDGRIPS (M) TO THE HANDLES.
- Page 8 LEG HOLD-DOWN ASSEMBLY INSTALL SQUARE CAP (L) INTO END OF TUBE FRAME (G). INSERT THE ROLLER TUBE (H) TUBE INTO THE TUBE FRAME (G). INSTALL THE ROLLER PADS (I) ONTO THE TUBE AND INSERT MUSHROOM CAPS (V) INTO END OF ROLLER TUBE.
- Page 9 FINAL ASSEMBLY INSERT THE PAD FRAME ASSEMBLY AND LEG HOLD-DOWN ASSEMBLY INTO THE UPPER FRAME. ADJUST AS NECESSARY AND TIGHTEN PULL-PIN KNOBS.
-
Page 10: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
