Deltech Fitness DF404 Assembly Manual

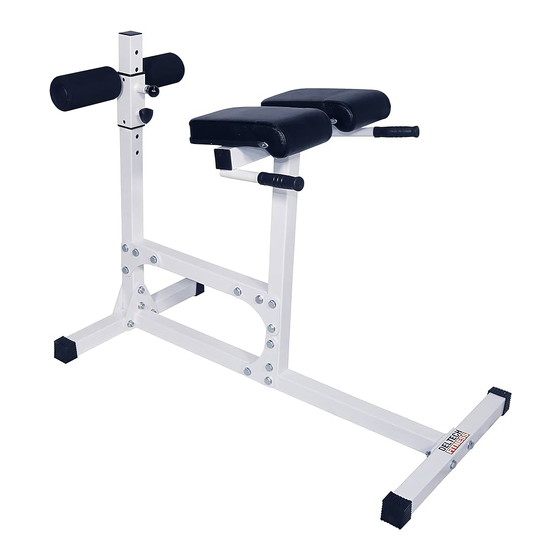

Hyperextension bench
Hide thumbs

Advertisement

Quick Links

Download this manual

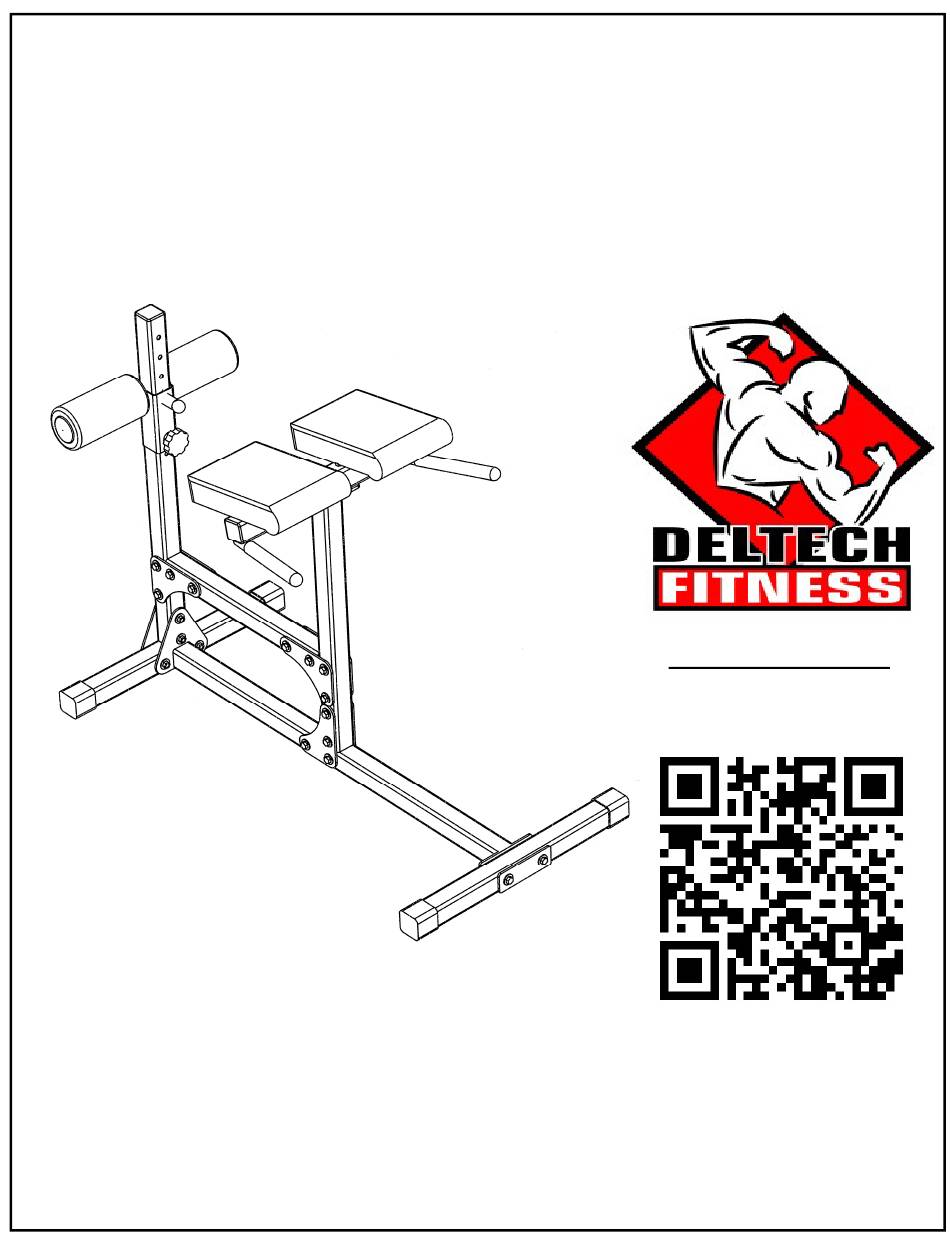

DF404
HYPEREXTENSION BENCH
Assembly Manual
Assembly Video Available
Simply scan the QR code below
on your phone's camera to access
the video
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF404

Summary of Contents for Deltech Fitness DF404

  • Page 1 Simply scan the QR code below on your phone’s camera to access the video (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    SEAT PAD POST CROSSMEMBER CROSSMEMBER QTY 2 QTY 1 QTY 1 QTY 1 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 HARDWARE M12 x 80MM M12 x 65MM M10 x 25MM M12 LOCKNUT BOLT CARRIAGE BOLT BOLT QTY 18 QTY 18 QTY 2 QTY 4 M12 WASHER M10 WASHER KNOB QTY 1 QTY 38 QTY 4 L BRACKET TRIANGLE ROLLER PAD PULL-PIN MUSHROOM CAP QTY 2...

  • Page 4: Frame Assembly

    FRAME ASSEMBLY TOOLS REQUIRED: ADJUSTABLE WRENCHES OR METRIC SOCKET SET ATTACH 1 FOOT (A) TO REAR OF BOTTOM CROSSMEMBER (F) USING TRIANGLE FLANGE (R), M12 x 80MM BOLTS (I), M12 WASHERS (N), AND M12 LOCKNUTS (L). ATTACH OTHER FOOT (A) TO FRONT OF BOTTOM CROSSMEMBER (F) USING M12 x 80MM BOLTS (I), M12 WASHERS (N), AND M12 LOCKNUTS (L).
  • Page 5 FRAME ASSEMBLY ASSEMBLE THE REAR SUPPORT POST (D) TO THE REAR FOOT USING THE M12 x 80MM BOLTS (I), M12 WASHERS (N)AND M12 LOCKNUTS (L). INSTALL FRONT SUPPORT POST (E) TO THE LOWER CROSSMEMBER (F) USING THE M12 x 80MM BOLTS (I), M12 WASHERS (N)AND M12 LOCKNUTS (L).
  • Page 6 FRAME ASSEMBLY ATTACH L BRACKETS (Q) TO FRONT SUPPORT POST (E) USING M12 x 80MM BOLTS (I), M12 WASHERS (N), AND M12 LOCKNUTS (L). ATTACH L BRACKETS (Q) TO REAR SUPPORT POST (D) USING M12 x 80MM BOLTS (I), M12 WASHERS (N), AND M12 LOCKNUTS (L).
  • Page 7 FRAME ASSEMBLY ATTACH UPPER CROSSMEMBER (G) USING M12 x 80MM BOLTS (I), M12 WASHERS (N) AND M12 LOCKNUTS (L). TIGHTEN ALL NUTS AT THIS TIME.
  • Page 8 LEG HOLD DOWN ASSEMBLY INSTALL PULL-PIN (U) AND KNOB (P) INTO LEG HOLDDOWN (B). INSTALL LEG HOLD DOWN (B) ONTO REAR SUPPORT POST (D). LOCK INTO DESIRED POSITION WITH PULL-PIN AND TIGHTEN KNOB.

  • Page 9: Final Assembly

    FINAL ASSEMBLY SLIDE ROLLER PADS (T) ONTO TUBES OF LEG HOLD DOWN (B). INSERT MUSHROOM CAPS (S) INTO ENDS OF TUBES AND HAMMER INTO PLACE WITH RUBBER MALLET. INSTALL SEAT FRAME (C) ONTO FRONT SUPPORT POST (E) USING M12 x 65MM CARRIAGE BOLTS (J), M12 WASHERS (N), AND M12 LOCKNUTS (L).

  • Page 10: Seat Frame Assembly

    SEAT FRAME ASSEMBLY INSTALL SEAT PADS (H) TO SEAT FRAME (C) USING M10 x 25 MM BOLTS (Q) AND M10 WASHERS (S).
  • Page 11 SEAT FRAME ASSEMBLY INSTALL SEAT PADS (H) TO SEAT FRAME (C) USING M10 x 25 MM BOLTS (Q) AND M10 WASHERS (S).
