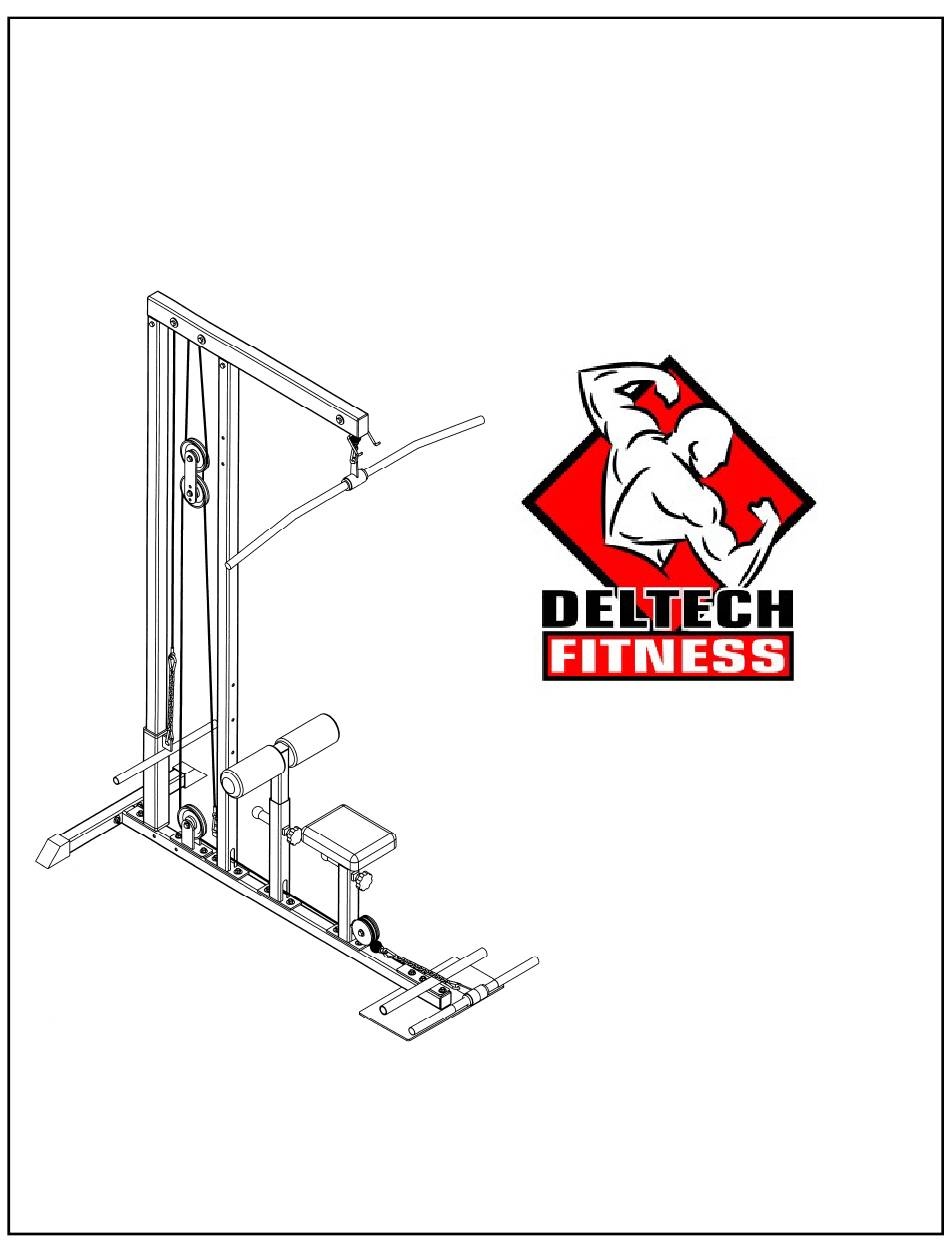

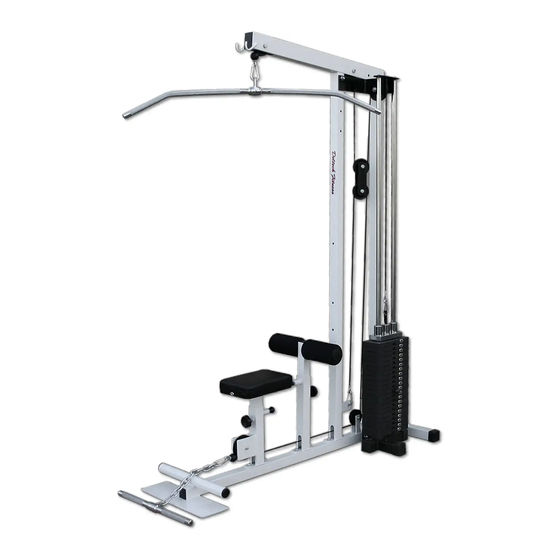

- Page 1 DF910 LAT PULLDOWN MACHINE Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 QTY 1 FOOT PLATE QTY 1 LAT CABLE REVOLVING CHROME FOOT REST QTY 2 ROW BAR QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 QTY 1 TUBE QTY 1 ROLLER PAD FLANGE BOTTOM PULLEY REAR CROSSMEMBER QTY 2 QTY 2 FRAME QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 CARRIAGE BOLT FLAT HEAD BOLT QTY 2 QTY 9 QTY 3 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 5 HARDWARE M12 LOCKNUT M10 LOCKNUT M10 WASHER M12 WASHER QTY 4 QTY 19 QTY 20 QTY 8 OLYMPIC COLLAR STANDARD COLLAR QTY 2 QTY 2...
- Page 6 TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN Some components may be pre-installed PAST THE PLASTIC INSERT.) from the factory LAY BOTTOM FRAME (C) ON ITS SIDE ON LEVEL FLOOR. INSTALL FRONT & REAR SUPPORTS (A), (B) TO BOTTOM FRAME (C) USING THE M10 x 65MM CARRIAGE BOLTS (GG), M10 WASHERS (II), AND M10 LOCKNUTS (KK).
- Page 7 ROTATE THE ASSEMBLY TO THE UPRIGHT POSITION AND SLIDE THE REAR CROSSMEMBER (N) INTO PLACE AND INSTALL TO THE BOTTOM FRAME USING THE M12 x 70MM BOLTS (AA), M12 WASHERS (HH), AND M12 LOCKNUTS (JJ). INSTALL THE RUBBER BOOTS (T) OVER THE ENDS OF THE CROSSMEMBER. ATTACH THE FOOT PLATE (C2) AND FOOT REST (C1) TO THE BOTTOM FRAME USING M10 x 70 MM FLAT HEAD BOLTS (FF), M10 WASHERS (II), AND M10 LOCK- NUTS (KK).
- Page 8 INSTALL THE WEIGHT SLIDE ASSEMBLY (K) ONTO THE REAR SUPPORT. ASSEMBLE THE UPPER PULLEY FRAME ONTO THE FRONT AND REAR SUPPORTS USING THE M12 x 65MM BOLTS(BB), M12 WASHERS (HH), AND M12 LOCKNUTS (JJ).
- Page 9 SEAT FRAME ASSEMBLY ATTACH THE SEAT PAD (H) TO THE SEAT BRACKET (I) USING THE M10 x 20MM BOLTS (EE) AND M10 FLAT WASHERS (II). THEN SLIDE THE SEAT BRACKET (I) INTO THE SEAT SUPPORT (J). INSTALL THE 3 ½” PULLEY (V) INTO THE SEAT SUPPORT TUBE (J) USING THE M10 x 45MM BOLT (DD) , M10 WASHERS (II), AND M10 LOCK NUT (KK).
- Page 10 LEG HOLD DOWN ASSEMBLY SLIDE THE HOLD-DOWN TUBE (L) INTO THE HOLD-DOWN SUPPORT (M) . LOCK INTO PLACE WITH PULL-PIN. SLIDE THE ROLLER PADS (P) OVER THE LEG PAD TUBE AND INSERT THE MUSH- ROOM CAPS (S). TAP INTO PLACE WITH A RUBBER HAMMER.
- Page 11 BOTTOM PULLEY FRAME ASSEMBLY ASSEMBLE THE 4 ½” PULLEY (U) INTO THE BOTTOM PULLEY FRAME (R) USING THE M10 x 45MM BOLT (DD), M10 WASHERS (II), AND M10 LOCKNUT (KK).
- Page 12 FLOATING PULLEY ASSEMBLY ASSEMBLE THE FLOATING PULLEY ASSEMBLY BY USING 4-1/2” PULLEYS (U), FLANGES (Q), M10 x 45MM BOLTS (DD), M10 WASHERS (II), AND M10 LOCKNUTS (KK).
- Page 13 UPPER CABLE INSTALLATION THE UPPER AND LOWER CABLES ARE THE SAME. STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE INTO FRONT OPENING OF THE UPPER PULLEY FRAME AND FEED IT TOWARDS THE BACK. PULL CABLE END OUT THROUGH REAR OPENING.
- Page 14 UPPER CABLE INSTALLATION INSERT 3-1/2” PULLEY INTO FRONT OPENING OF UPPER PULLEY FRAME AND INSTALL USING THE M10 x 70MM BOLT (CC), PULLEY BUSHINGS (W), AND M10 LOCKNUT (KK). REPEAT FOR MIDDLE PULLEY.
- Page 15 UPPER CABLE INSTALLATION FEED CABLE END AROUND TOP PULLEY OF FLOATING PULLEY ASSEMBLY AND THEN USING THE M10 x OVER 3-1/2” PULLEY. INSTALL 3-1/2” PULLEY IN UPPER PULLEY FRAME 70MM BOLT (CC), PULLEY BUSHINGS (W), AND M10 LOCKNUT (KK).
- Page 16 UPPER CABLE INSTALLATION ATTACH SNAP HOOKS TO BOTH ENDS OF CHAIN. ATTACH ONE END TO CABLE AND THE OTHER END TO MOUNTING FLANGE ON WEIGHT SLIDE.
- Page 17 LOWER CABLE INSTALLATION KEEPER BAR STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE UNDER 3-1/2” PULLEY ON SEAT FRAME. MAKE SURE THAT CABLE IS BELOW PULLEY AND ABOVE KEEPER BAR ON BOTTOM OF PULLEY FRAME (SEE INSET PICTURE)
- Page 18 LOWER CABLE INSTALLATION FEED CABLE THROUGH OPENINGS IN SEAT SUPPORT, HOLD-DOWN SUPPORT, AND FRONT SUPPORT. INSTALL CABLE AROUND 4-1/2” LOWER PULLEY, UP AND AROUND BOTTOM PULLEY OF FLOATING PULLEY ASSEMBLY AND DOWN TO MOUNTING FLANGE AT BOTTOM OF FRONT SUPPORT. ATTACH SNAP HOOK TO END OF CABLE AND ATTACH TO MOUNTING FLANGE.
- Page 19 LAT BAR INSTALLATION ATTACH LAT BAR TO UPPER CABLE WITH SNAP HOOK. MOVE TO CRADLE WHEN NOT IN USE. LOW ROW BAR INSTALLATION ATTACH LOW ROW BAR TO LOWER CABLE WITH 2 SNAP HOOKS AND CHAIN. YOU CAN ALSO USE THIS CHAIN ON THE HIGH PULLEY TO DO TRICEP EXERCISES.
- Page 20 TROUBLESHOOTING TIPS 1. CABLE WILL NOT MOVE OR RUBS CHECK TO MAKE SURE ALL CABLES ARE IN THE V GROOVE OF THE PULLEYS. CHECK ALL PULLEYS TO MAKE SURE THEY ROTATE FREELY. 2. SEAT OR LEG HOLD-DOWN WON’T ADJUST MAKE SURE THE TIGHTEN DOWN KNOB IS LOOSENED BEFORE MAKING ADJUSTMENTS. 3.
- Page 22 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
