Deltech Fitness DF4900LS Assembly Manual

Linear bearing smith machine with lat attachment & 200 lb. weight stack
Hide thumbs

Advertisement

Quick Links

Download this manual

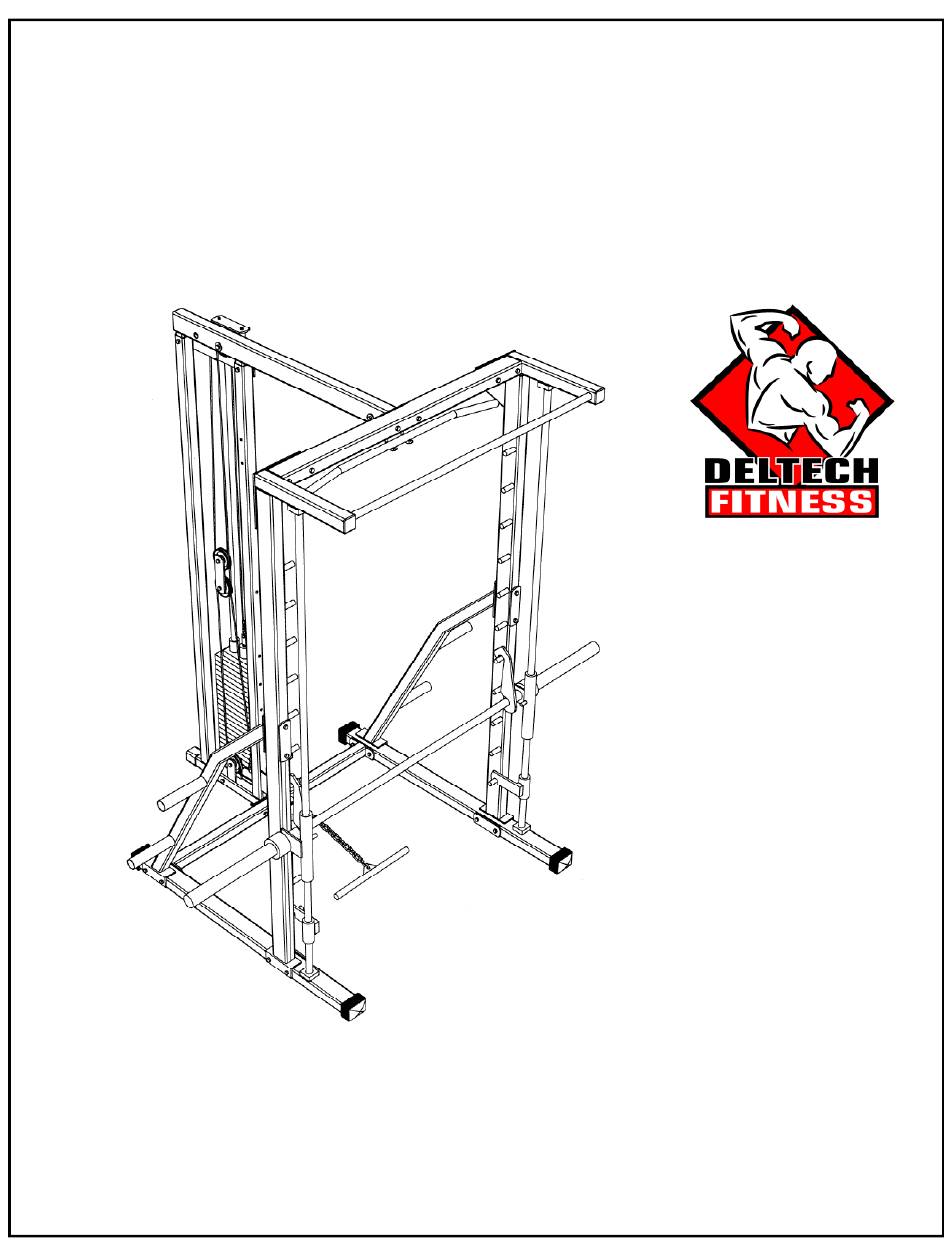

LINEAR BEARING SMITH MACHINE WITH
LAT ATTACHMENT & 200 LB. WEIGHT STACK
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533
DF4900LS
Assembly Manual
(888) 258-0533

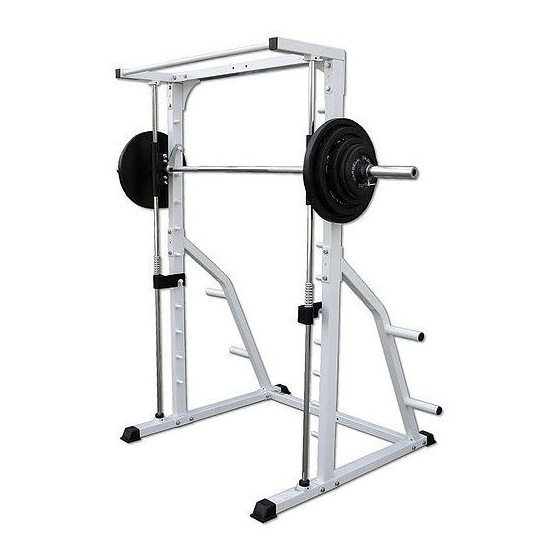

The DF4900LS consists of the DF4900 Smith
Machine and the DF838 Stack Loaded Lat
Attachment

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF4900LS and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF4900LS

Summary of Contents for Deltech Fitness DF4900LS

  • Page 1 The DF4900LS consists of the DF4900 Smith Machine and the DF838 Stack Loaded Lat Attachment (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 2 QTY 1 LH FOOT RH FOOT CROSSMEMBER TOP FRAME QTY 1 QTY 1 QTY 1 QTY 1 PULL-UP BAR QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 LH & RH GUIDE ROD COLLAR LH & RH SMITH BAR COLLAR QTY 1 EACH QTY 1 EACH QTY 1 EACH *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 QTY 8 QTY 20 QTY 40 QTY 16 CHROME SPRING HEX WRENCH CORNER FLANGE QTY 2 QTY 1 QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 5: Frame Assembly

    FRAME ASSEMBLY TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET HEX WRENCHES (INCLUDED) ASSEMBLY REQUIRES 2 PEOPLE MAKE SURE BAR HOOK CATCH RODS ARE CLOSER TO THE FRONT MAKE SURE GUIDE BAR RETAINERS ARE TOWARDS THE OUTSIDE (NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN...
  • Page 6 SMITH BAR ASSEMBLY LONG SIDE OF BEARING HOUSING FACES INWARD ON BOTH SIDES RIGHT HAND ASSEMBLY HAS STOP PIN MOUNTING FLANGE FACES OUTWARD ON BOTH SIDES RIGHT HAND ASSEMBLY LEFT HAND ASSEMBLY ASSEMBLE SMITH BAR COLLAR (M) AND GUIDE ROD COLLAR (N) USING THE M10 x 25MM BOLTS (W), M10 WASHERS (Y), AND M10 LOCKNUTS (AA).
  • Page 7 GUIDE BAR INSTALLATION INSERT THE GUIDE RODS (K) INTO THE RETAINERS AT THE BOTTOM. SLIDE THE RUBBER DONUTS (S) ONTO THE GUIDE RODS AND MOVE TO THE BOTTOM. INSTALL THE RH AND LH SAFETY CATCHES (O) AND HOOK ONTO ONE OF THE CATCH PINS TO SUPPORT THE GUIDE RODS. SLIDE THE CHROME SPRINGS (BB) ONTO THE GUIDE RODS (K).
  • Page 8 SMITH BAR ASSEMBLY GUIDE ROD COLLARS HAVE LINEAR BEARINGS ON EACH END USING A HELPER, LIFT THE SMITH BAR ASSEMBLY FROM EACH SIDE MAKING SURE THAT THE HOOKS ARE FACING TOWARDS THE BACK. INSTALL THE SMITH BAR ASSEMBLY ONTO THE GUIDE RODS ENSURING THAT THE RODS GO INTO THE LOWER ROLLER BEARINGS ON BOTH SIDES BE- FORE SLIDING DOWN INTO THE UPPER ROLLER BEARINGS.
  • Page 9 SMITH BAR ASSEMBLY INSTALL WEIGHT SLEEVE (L) WITH WEIGHT SLEEVE BOLT (U) ONTO SMITH BAR (J) AND TIGHTEN WITH SUPPLIED HEX WRENCH. REPEAT FOR OPPOSITE SIDE.
  • Page 10 TOP FRAME INSTALLATION INSTALL THE TOP FRAME (H) ONTO THE UPRIGHTS AND GUIDE RODS.
  • Page 11 TOP FRAME INSTALLATION ATTACH THE TOP FRAME TO THE UPRIGHTS USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), CORNER FLANGES (DD), AND M12 LOCKNUTS (Z). REPEAT FOR OPPOSITE SIDE.
  • Page 12 TOP FRAME INSTALLATION ATTACH THE PULL-UP BAR (I) TO THE TOP FRAME USING THE PULL-UP BAR BOLTS (T), AND M12 WASHERS (X). MAKE SURE ALL THE BOLTS ARE TIGHT BEFORE USING. CHECK THEM PERIODICALLY TO ENSURE THE BOLTS STAY TIGHT. HAVE A GOOD WORKOUT!
  • Page 13 GUIDE BAR ADJUSTMENT THE GUIDE BAR RETAINERS ARE SLOTTED TO ALLOW FOR ADJUSTMENT. USING THE SUPPLIED HEX WRENCH, TIGHTEN THE SET SCREWS ON BOTH SIDES OF THE BOTTOM RETAINER. HOLD A LEVEL AGAINST THE GUIDE ROD TO ENSURE IT IS LEVEL. IF NECESSARY ADJUST THE SET SCREWS ON THE UPPER RETAINER.

  • Page 14: Safety Notice

    11) REPLACEMENT OR WORN OR DEFECTIVE PARTS MUST BE REPLACE WITH FACTORY AUTHORIZED PARTS. IF OTHER THAN FACTORY AUTHORIZED PARTS OR ASSESSORS ARE USED ALL WARRANTIES AND LIABILITIES BECOME VOID. *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 15: Use Instructions

    USE INSTRUCTIONS 1) SET THE SPOTTERS (9) TO THE DESIRED HEIGHT FOR A SAFE WORK OUT. 2) RAISE THE BAR AND ROTATE IT OUT UNTIL THE HOOK CLEARS THE PEGS. 3) DO EXERCISES AS DESIRED. 4) WHEN FINISHED WITH THE SET, ROTATE THE BAR BACK AND SET ON PEGS. MAKE SURE THE BAR IS SECURE BEFORE LETTING GO.

This manual is also suitable for:

Df4900
