FACTORY AUTOMATION
MANUAL

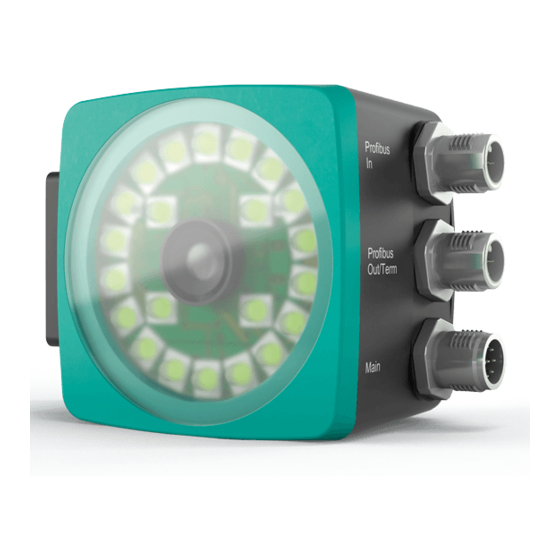

Configuration Instructions for
PXV100A / PGV100A
Parameterization with SIEMENS
SIMATIC S7-1500 control system
R
PL e
3
