6. IVIS

Spectrum Components

Table 6.1 Connector pin usage

Pin Number

Function

12 and 13

Use these pins to monitor the skin or rectal temperature of the animal.

The use of a copper-constantan thermocouple is recommended.

These pins may also be used to connect to the THM 100 ECG monitor

(Indus Instruments).

Note: A 15 pin D-sub male mating connector is required (supplied by user).

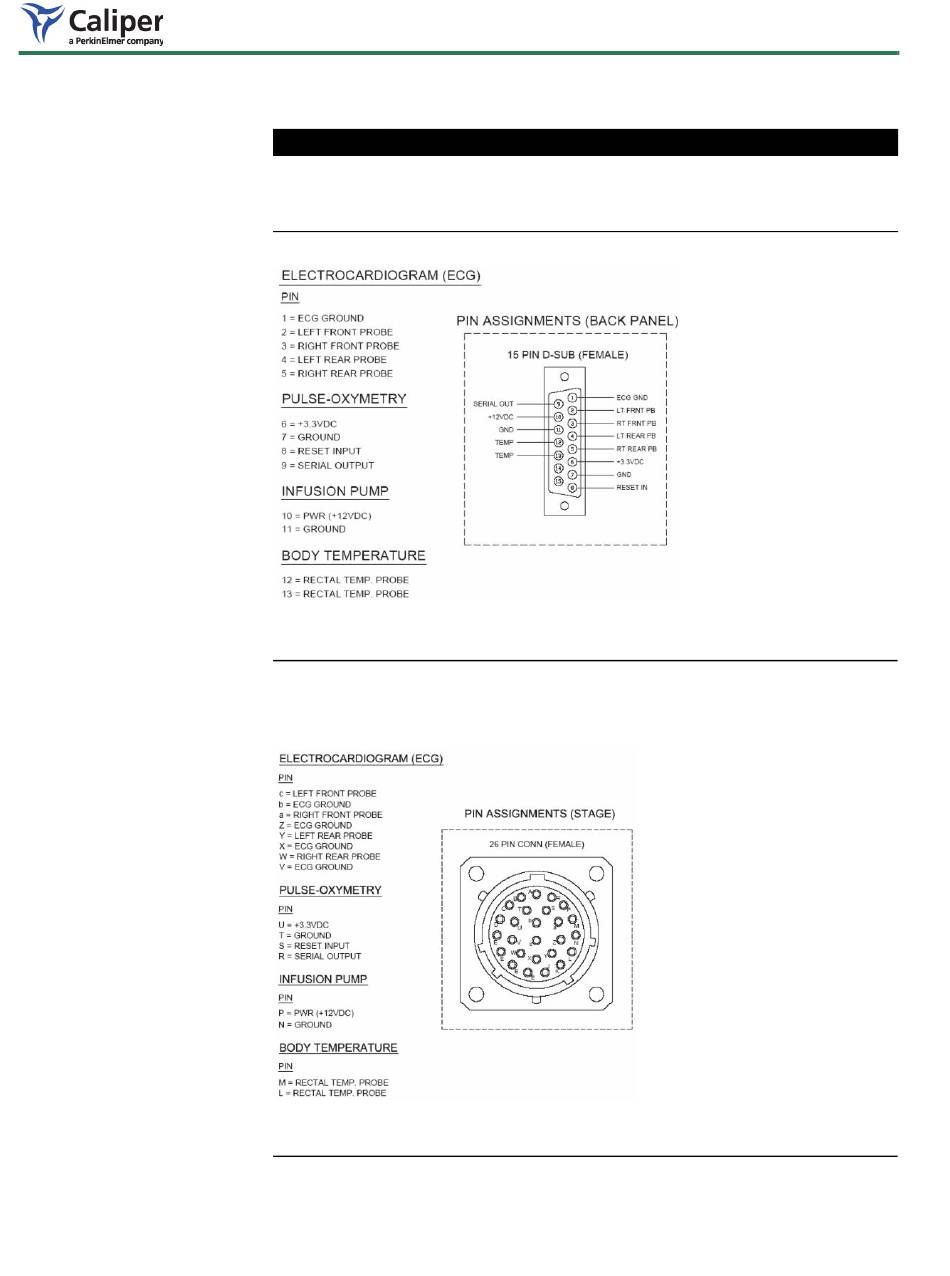

Figure 6.8 Back panel connector

Note: Connector type in shelf--MS3119E16-26PS. Mating connector required (supplied by

customer). Manufacturer: Amphenol Aerospace, part no. MS3126F16-26P.

Figure 6.9 Stage connector
