Female BNC antenna port: the 50Ω BNC antenna is connected here. It
9
also provides a booster power of 12~15 DC / 100mA for an external
antenna booster.
Male XLR (RX1): RX1 balanced audio output jack
10
Male XLR (RX2): RX2 balanced audio output jack
11
Mixing: it allows the unbalanced audio signals from RX1 and RX2 to be
12
mixed to RX1.
6.3mm phone jack (RX1): RX1 unbalanced audio output jack
13
6.3mm phone jack (RX2): RX2 unbalanced audio output jack
14
DC power socket: for 12~15V DC / 500mA power supply
15

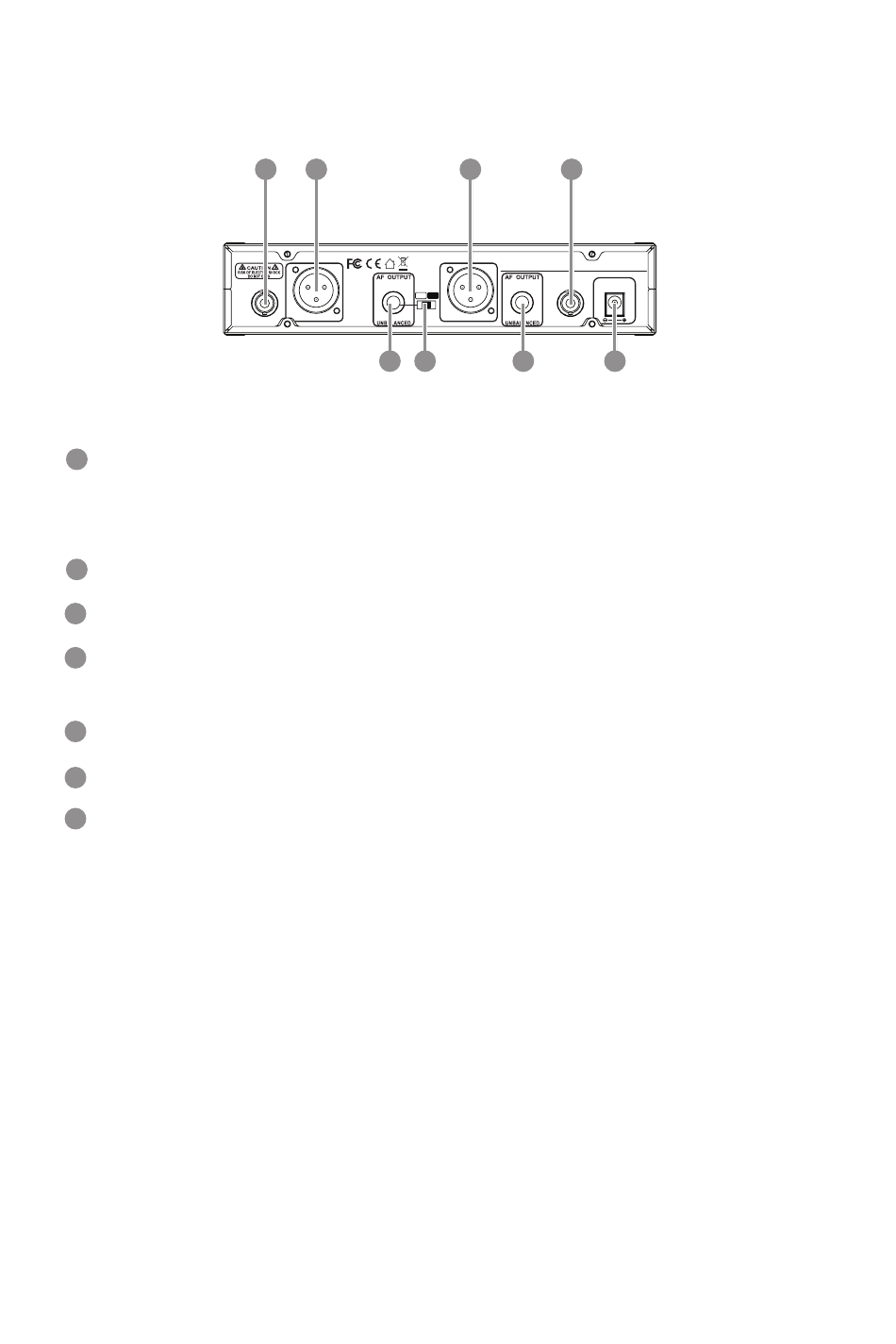

Rear panel
9
13
RX1
Made In Taiwan
RX1
ANT.A
AF OUTPUT BALANCED
10
14
9
Serial No.:
Freq.:
RX2
RX2
Mixed
ON
OFF
ANT.B
AF OUTPUT BALANCED
12
11
DCV INPUT
12-15V/500mA
15
8
