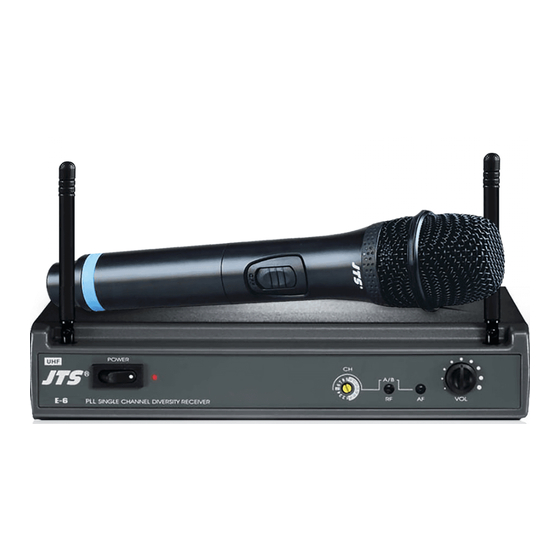

- Page 1 E-6 / E-6TH / E-6TB PROFESSIONAL CO., LTD. No. 148, 9th Industry Road, Ta-Li Industrial Park, Taichung City, Taiwan, R.O.C. Tel: 886-4-24938803 Fax: 886-4-24914890 E-mail: jts@jts.com.tw www. jts.com.tw 59508-092-04...
- Page 2 E-6TH E-6TB Instruction Manual...
- Page 3 Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the system, you are recommended to take a few minutes to read this instruction manual carefully.
- Page 4 INDEX 1. Important Caution 2. Features 3. Specification 3-1 Receiver// E-6 3-2 Handheld Transmitter // E-6TH 3-3 Body-pack Transmitter // E-6TB 3-4 Optional Condenser Microphone 4. Part Identification & Accessories 4-1 Receiver// E-6 4-2 Handheld Transmitter // E-6TH 4-3 Body-pack Transmitter // E-6TB...
-
Page 5: Important Caution
1. Important Caution • Always makes all connections before plugging the unit into an AC power outlet. • Do not leave the device in a place neither with high temperature nor high humidity. • Always do not handle the power cord with wet hands! •... -
Page 6: Specification
3. Specification 3-1 Receiver Model No ......... Frequency Preparation....PLL Synthesized Control Carrier Frequency Range..470~960 MHz S/N Ratio........... > 105dB T.H.D..........<0.6%@1KHz Display........Display Contents......Antenna A/B, RF/AF Status Controls......Power On/Off, Channel Selecting, Audio Level Audio Output Level....-12dB AF Output Impedance.... -
Page 7: Body-Pack Transmitter
3-3 Body-pack Transmitter Model No........E-6TB Frequency Preparation..PLL Synthesized Control Carrier Frequency Range..470~960 MHz RF Outputs........10mW Stability........±10KHz Frequency Deviation....±48KHz LED Display........Power On/Off, Low battery Controls........Power On/Off, Channel Selecting (Round Switch) Spurious Emissions....<-50 dBC Audio Frequency Response 40~18,000 Hz Battery........ -
Page 8: Headset Microphone
3-4 Optional Condenser Microphone Lavaliere Microphone Model No....... CM-501 CM-201i CM-125i Connector......4P Mini XLR 4P Mini XLR 4P Mini XLR Frequency Response..100~15,000 Hz 60~15,000 Hz 50~18,000 Hz Polar Pattern......Cardioid Omni-directional Omni-directional Sensitivity (at 1000Hz) -60±3 dB -60±3 dB -53±3 dB Impedance...... - Page 9 Ear-hook Microphone Model No....... CM-801/CM-804i CM-8015/CM-825i Connector......801C4 (4 pin mini XLR) 801C4 (4 pin mini XLR) Option Connector... 801C3 (3 pin mini XLR) 801C3 (3 pin mini XLR) 801CS (3.5 stereo plug) 801CS (3.5 stereo plug) 801CR 801CR Frequency Response..60~15,000 Hz 50~18,000 Hz Polar Pattern......
-
Page 10: Parts Identification & Accessories
4. Parts Identification & Accessories 4-1 Receiver // E-6 Power On Channel Selector RF indicator AF indicator Volume control Antenna DCV Input Unbalanced 6.3mm jack socket Balanced XLR socket 4-2 Handheld Transmitter // E-6TH Interchangeable capsule module Battery tray Channel selector... -
Page 11: Optional Condenser Microphone
4-3 Body-pack Transmitter // E-6TB Mic. input (4 pin mini XLR socket) Power On/Off switch Antenna LED indiccator for power and battery status Battery tray AF leavel control Belt-loop Carry case Channel selector Gain adjust E - 6 T B 4-4 Optional Condenser Microphone Lavaliere Microphone // CM-501 / CM-201i / CM-125i Clip... - Page 12 Headset Microphone // CM-214i / CM-214Ui / CM-214ULi / CM-235i / CX-504 Gooseneck Adjustable headband Headband 4 Pin Mini XLR Windscreen CM-214i CM-214Ui CM-214ULi Standard : 4 Pin Mini XLR 3 Pin Mini XLR 3.5 Stereo Plug CM-235i CX-504...
- Page 13 Ear-hook Microphone // CM-801 / CM-804i / CM-8015 / CM-825i Boom Adjustable Headband Adjustable ear hook Detchable Cable Cable Clip CM-801 Windscreen 4 Pin Mini XLR Option 3 Pin Mini XLR 3.5 Stereo Plug Option 4Pin Hirose connecter Option CM-804i CM-8015 CM-825i WIRELESS MICROPHONE SYSTEM...
- Page 14 Compatible Instrument Microphone // CX-500 / CX-500F / CX-520 / CX-508W / CX-516W Gooseneck Clip Bracket Volume Control Windscreen 4 Pin Mini XLR CX-500 CX-500F CX-520 CX-508W CX-516W...
- Page 15 4-5 Accessories AC/DC adaptor Switching Power Supply(100V~240V , 50~60Hz) Linear Power Supply (220V , 50Hz) Option Linear Power Supply (220V , 60Hz) Option Screwdriver DR-900 Dual Rack Adaptor Option RP-900 Panel Cover Option AF output cable (with Ø6.3 plug at both ends) GC-80/GC-100 Guitar Cable Option GC-80L/GC-100L Guitar Cable...
-
Page 16: Preparing Procedures & Basic Operation
5. Preparing Procedures & Basic Operation 5-1 Receiver // E-6 (1) Audio Output Connector The receiver equipped with both balanced XLR output and unbalanced φ 6.3mm jack output; you can choose the proper way for using. Connect one end of the Audio cable to the AF output socket in the rear panel of the receiver and plug another end to the “MIC IN”... -
Page 17: Rack Mounting
5-2 Rack Mounting (1) Before mount receivers onto DR-900 rack adaptor, please release any cables from the rear of the receiver. (2) Turn over receiver and DR-900 rack adaptor simultaneously, there are 4 threaded holes each in the bottom of receiver and rack adaptor for inserting screws. (3) Single receiver Insert in a receiver through the front of DR-900 until it is firmly attached to the rack, then screw on a RP-900 to another side of the rack. - Page 18 5-3 Battery Insertion of the transmitter E-6TH Series Handheld Transmitter 1. Insert 2 pcs 1.5V AA batteries into the battery tray. 2. After putting into the battery, switch on the power switch.
- Page 19 Plug the connector into input socket on the body-pack transmitter. MIC IN E - 6 T B (4) Instrument Microphones The system is compatible with JTS various instrument microphones. For detail please refer to user’ s manuals of these microphones. WIRELESS MICROPHONE SYSTEM...
-
Page 20: System Operation
6. System operation Be sure to mute the audio signal of a mixer or amplifier before turning on the receiver and transmitter. (1)Power on Turn AF level on the receiver completely counter-clockwise to the minimum level, and switch on the receiver. As soon as you turn power of the receiver on, the power LED lights red, meanwhile the RF signal and AF LED light up to indicate the receiver is ready for operating. - Page 21 (3) Using the E-6TB Body-pack transmitter 1. Use the supplied screwdriver to adjust the gain control on the rear panel of E-6TB body-pack transmitter to a proper level. 2. The carry case allows the E-6TB to be attached on performer’ s belt, place the antenna towards the back of his body.
- Page 22 (6) Ear-hook Microphone 1. Lightweight Dual Ear Hook Microphone Try on whether the headset is fit. Adjust the headband to a suitable width. Tighten or loosen the curve of the ear-hook by twisting the loop or expanding it. Curve and bend the boom to fit your face. Attach the detachable cable to a suitable place by a cable clip.
- Page 23 7. Recommendation (1) In order to achieve the optimum reception condition and also extend the operating distance, please leave a “open space” between the receiver and transmitter. (2) Keep the devices away from the metal objects or any interference sources, at least 50 cm. (3) To avoid the feed-back effect, don’t leave the mic.
-
Page 24: Important Notice
8. Important notice (1) JTS offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or geographic regions. These regulations help limit radio frequency (RF) interference among different wireless devices and prevent interference with local public communications channels, such as television and emergency broadcasts.
