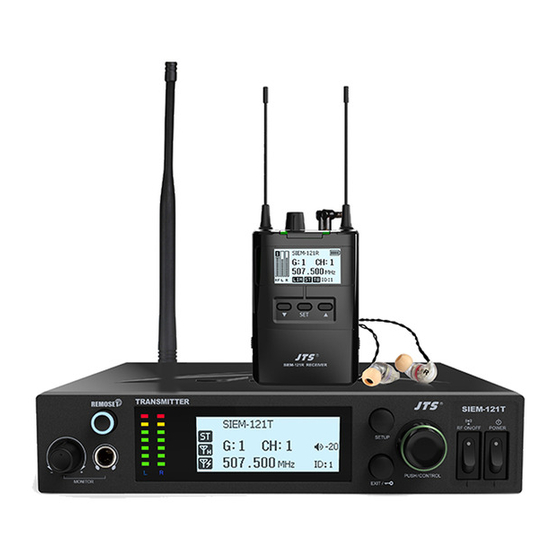

- Page 1 SIEM-121T/SIEM-121R UHF PLL Stereo In-Ear Monitoring System Instruction Manual / 操作手冊...
- Page 2 ATTENTION Please pay high attention to the following information. The guideline published by Occupational Safety Health Administration (OSHA) in United States indicates overload volume level for prolonged listening may harm your hearing. Here below are referenced data on maximum time exposure to sound level before hearing injury occurs.
-
Page 3: Table Of Contents
Table of Content 1.Features 2.Specification 2-1 UHF PLL Single Channel Transmitter // SIEM-121T 2-2 UHF PLL Body-Pack Receiver // SIEM-121R 3.PartsIdentification 3-1 UHF PLL Single Channel Transmitter // SIEM-121T 3-2 UHF PLL Body-Pack Receiver // SIEM-121R 3-3 Accessories 4.Connection 4-1 Connecting the SIEM-121T... -
Page 4: Features
SIEM-121T » Your ultimate solution to affiliate the problems of interference and dropouts. » Designed with JTS exclusive 2.4GHz REMOSET technology, making data synchronization as simple as a one-button-touch to enable quick setup and easy operation. » Reliable wireless coverage that extends up to 300 meters. -
Page 5: Specification
2.Specification 2-1 UHF PLL Single Channel Transmitter // SIEM-121T Carrier Frequency Range 470~960 MHz RF Output Power 10 mW Nominal Frequency Deviation ±40KHz (MAX) Audio Input Impedance 20kΩ Nominal Input Level -12 dBu Maximum Input Level AUX:12dBu, LINE:22 dBu Key lock, Stereo/Mono, RF power, User Name, Group/Channel,... -
Page 6: PartsIdentification
3.PartsIdentification 3-1 UHF PLL Single Channel Transmitter // SIEM-121T 3-1-1 Front Panel Antenna REMOSET : When the setting is done on the transmitter, push REMOSET to transmit the settings to the receiver . Volume Control 6.3mm Stereo Phone Jack EXIT/Lock Button: When the “Setup Menu” is displayed, you can press the EXIT Button to cancel the selection of any item or exit the menu. - Page 7 3-1-2 Rear Panel AC Power Socket and Fuse DC power socket: for 12V/1A DC power supply Balanced Loop Out Connector CH.1 Balanced Loop Out Connector CH.2 Balanced XLR/ φ 6.3mm Combo Input Left / CH.1 Balanced XLR/ φ 6.3mm Combo Input Right / CH.2 BNC Antenna Output Socket Serial No.: Freq.:...
-
Page 8: Uhf Pll Body-Pack Receiver // Siem-121R
3-2 UHF PLL Body-Pack Receiver // SIEM-121R 3-2-1 Receiver Power Switch and Volume Control 3.5mm Stereo Phone Jack REMOSET/Battery indication Antenna LCD Display ▲/▼Switch Set Switch Battery Tray Belt Clip Charging contact 3-2-2 LCD Display Antenna indication 1 or 2 AF Level Indication L-Channel AF Level Indication R-Channel User Name... -
Page 9: Accessories
(Optional) RTF-20 Antenna Extension Cable (20 meters) (Optional) 4.Connection 4-1 Connecting the SIEM-121T 4-1-1. Set the rubber pad Four self-adhesive rubber pads are provided to ensure thestability. They are to be placed on the bottom of the transmitter. 4-1-2. Attach the antenna The user-friendly antenna comes with BNC connector. -
Page 10: Installing The Siem-121R
4-1-3. Connect the main unit (Step 1) 1. AC INPUT: Connect the AC INPUT in the rear panel of SIEM-121T to an AC power socket with the supplied AC power cord. 2. DC INPUT: Check that the DC current and voltage ratings of the adapter match the label on the unit. -
Page 11: Optional Accessory
4-2-2 Connect with the earphone 1. Plug the earphone into the jack of the receiver. (Figure 1) 2. Make sure the volume is at low level to avoid injury to your ears. 3. Insert earphones into your ear at a correct position. (Figure2) 4. -
Page 12: Operation
5. Operation 5-1 Operation // SIEM-121T 1. Power On / Off: Turn on or turn off the transmitter by pressing the “POWER” switch. 2. Volume: Adjust the volume to a proper level. 3. Monitor Volume: Adjust the monitor volume to a proper level. - Page 13 5. Sensitivity Turn the knob to adjust the sensitivity, and the adjustable range is from -40 to +20 dB. 6. Input Selection Turn the knob to select LINE/AUX input level. 7. Remoset Turn the knob to select an item to be set, and then press the knob to set its value. Press the knob again to return to the menu.
-
Page 14: Operation // Siem-121R
(3) Factory Reset Restore factory settings Cancellation 5-2 Operation // SIEM-121R Parameter setting Press the SET button for 2 seconds to enter the setting mode. By pressing the SET button repeatedly, you can enter different setting items in order, then you canpress▲/▼buttontosettheparameters,andpressSETagaintosavethe setting and leave. - Page 15 (3).Scan Current Group Chooseagroupwiththe▲buttonandpressSETtostartscanningit. When it's done: Press SET to go to the next channel. Press▲tosaveyourGroup/Channel. Press▼togobacktothemainmenu. (4) If it's taking too long to find a channel, press SET to stop scanning. 4. Stereo/Mono Stereo Select▲ Mono Select▼ 5. HF Boost Enable Select▲...
- Page 16 9. Remoset (1) Remoset Enabled (En) Frequency can be matched to the transmitter. Disabled (Dis) No frequency can be matched to the transmitter. (2) Use ID Enable The ID must be the same as the transmitter in order to pair with the transmitter.
-
Page 17: Installation Assignment
Set up the installation when only one output from the mixer. 1. Connect the mixer output to the transmitter input. ( Either LEFT/CH.1 or RIGHT/CH.2 ) 2. Set SIEM-121T to Mix/Mono mode. (See 5-1) AUX 1 NOTE: Stereo or Mix/Mono mode of SIEM-121R will be no... -
Page 18: Loop Out Application
6-2-1. Stereo for Multiple Systems AUX 1 Make use of the loop out connectors to deliver one stereo AUX 2 signal from the mixer to multiple SIEM-121T. 1. Connect the mixer outputs to inputs of the first transmitter. Serial No.: Freq.: 2. - Page 19 PROFESSIONAL CO., LTD. No. 148, 9th Industry Road, Ta-Li Industrial Park, Taichung City 41280, Taiwan. Tel: 886-4-24938803 Fax: 886-4-24914890 E-mail: jts@jts.com.tw www.jts.com.tw 59508-137-02...
