JTS in64r User Manual

Uhf pll single channel diversity wireless system
Hide thumbs

Advertisement

Music
INFINITY
Life

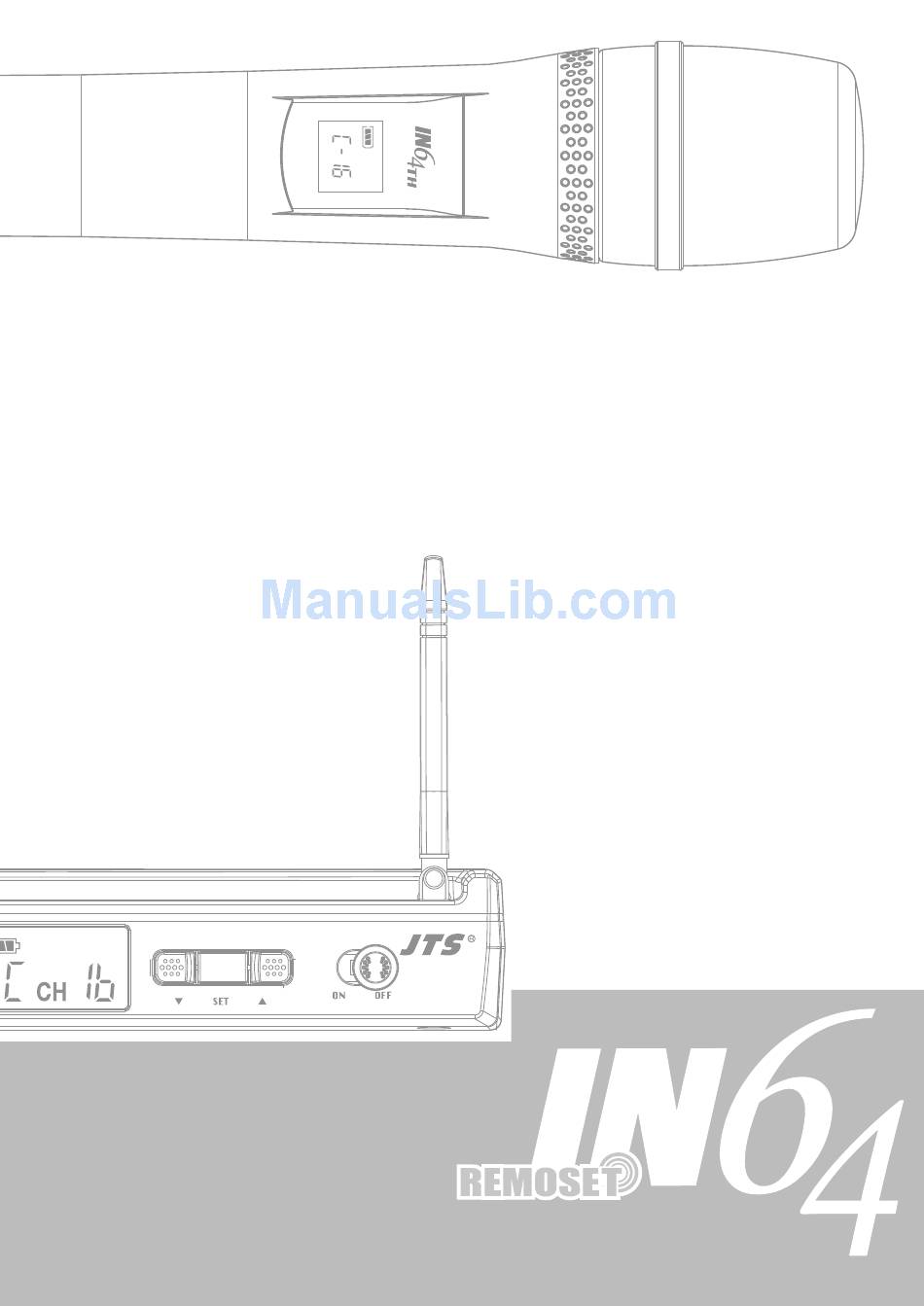

UHF PLL Single Channel Diversity Wireless System
* The system is the initiative design to allow changing the transmitter's
frequency by long-distance worldwide.
* Preset 4 groups each of 16 UHF channels.

Advertisement

Table of Contents
loading

  Related Manuals for JTS in64r

  Summary of Contents for JTS in64r

  • Page 1 Music INFINITY Life UHF PLL Single Channel Diversity Wireless System * The system is the initiative design to allow changing the transmitter’s frequency by long-distance worldwide. * Preset 4 groups each of 16 UHF channels.
  • Page 2: Table Of Contents

    Music INFINITY Life 1. Important Caution 2. Features 3. Parts Identification 3-1 IN64R 3-2 IN64TH 3-3 IN64TB 3-4 Power supply unit 4. Connection 1. Connect to the subsequent unit 2. Connect the power supply unit 5. Operation 1. Set up the system 2.
  • Page 3: Important Caution

    A new capsule has been developed for IN64TH (Optional) . The capsule, SAM-8W, is designed for large venue with hundreds of thousands watt power. The SAM-8W delivers vivid details of vocal and instruments. The IN64 is of stylish industry design. Yet JTS bombproof quality remains as always.
  • Page 4: Parts Identification

    Music INFINITY Life 3. Parts Identification 3-1 IN64R Front panel Receiving Antennas Power Switch Channel Select: including “ up”, “ down” and “Set” button LCD Panel REMOSET Key: press it to send a desired channel data to a transmitter Volume Control...
  • Page 5: In64Th

    LCD Panel of the Receiver AF Level: display the strength of audio signal RF Level: display the strength of radio signal Antenna Status: the receiver will automatically select an antenna with stronger signal level Low battery indicator: display the low battery status of its transmitter Group &...
  • Page 6: In64Tb

    Music INFINITY Life 3-3 IN64TB LCD Display Battery Tray Set button: Up button: select the settings of transmitter Down button: select the settings of transmitter Power and Mute Switch LCD Panel of the Body-Pack Transmitter Battery status: display battery status Group &...
  • Page 7: Connection

    4. Connection Connect one end of a proper AF cable to the AF Output or Balanced XLR Output socket , then plug another end to the “MIC IN” input socket of a 2. Connect the power supply unit Plug in one end of AC/DC adaptor cable to Power Supply Jack in the rear panel of receiver, and plug another end into an AC outlet...
  • Page 8: Operation

    Music INFINITY Life 5. Operation 1. Set up the system Turn on the power of the receiver Switch the “Power Switch” to “ON”. The “LCD Panel” and “REMOSET” will light up. Turn on the power of the transmitter Hold the “Power Switch” for 3 seconds.
  • Page 9 Handheld and BodyPack transmitter ID code ON/OFF setting A) Press "Set" button for 3 seconds, LCD Panel will B) Press "Set" couple times until "ID Code ON/OFF" setting window shows. C) Press " Up" or Down" button to select between " ID ON " and " ID OFF ". D) After setting, press "Set"...
  • Page 10: Synchronize The Channel

    Music INFINITY Life 3. Synchronize the channel A) Press "Set" button for 3 Seconds, the group (G) in the "Group & (Figure 4) B) Press " Up" or " Down" button to select a desired group C) Press "Set" again and the Channel (CH) in the "Group & Channel" area D) Press "...
  • Page 11: Adjust Output Volume

    5. Adjust output volume: Adjust output volume by twisting the Volume Control 6. Manual select channel: Receiver A) Press "Set" button for 3 seconds, the group (G) in the "Group & Channel" (Figure 8) B) Press " Up" or " Down" button to select a desired group C) Press "Set"...
  • Page 12: Remoset Button Lock

    Music INFINITY Life 7. Lock ON Function: Receiver A) Press "Set" button for 3 seconds to enter setting window B) Press "Set" again until the Lock setting window shows. (Figure 10) C) Press " Up" or " Down" button to select the mode between "Lock On"...
  • Page 13: Adjust The Sensitivity Of The Microphone

    8. Adjust the sensitivity of the microphone A) Press "Set" button for 3 seconds to enter setting window. (Figure 12) 3” B) Press "Set" again until the Sensitivity setting window shows. C) Press " Up" or " Down" button to select the sensitivity among 0db, -6db,-12db,and -18db.
  • Page 14 Music INFINITY Life Handheld and body Pack Setting List Manual Channel There are 4 groups with 16 channel per group Select Sensitivity 0 dB is the highest sensitivity Settings “On” means “REMOSET” function always opens; Synchronization ON/OFF When ID code is OFF (id OFF), the transmitter will ID code ON/OFF accept any synchronization from any receiver.
  • Page 15: Specification

    6. Specification 6-1 IN64R Frequency Preparation PLL Synthesized Control Remoset Radio Frequency,2.4GHz Effective distance: 10m Carrier Frequency Range 494MHz~960MHz S/N Ratio >105dB T.H.D (1 KHz) <0.6%@1KHz Display Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number...
  • Page 16 59508-017-01...

This manual is also suitable for:

In64thIn64tb
