Making connections

NOTE
Do not connect or switch on the inEos X5 yet!
First, connect the PC to the monitor, keyboard, and mouse.
Follow the instructions in this document exactly in order to
successfully perform start-up of your device.
You must install the user software prior to connecting the device to
the PC.
A
B
C
D
inEos X5
E
F

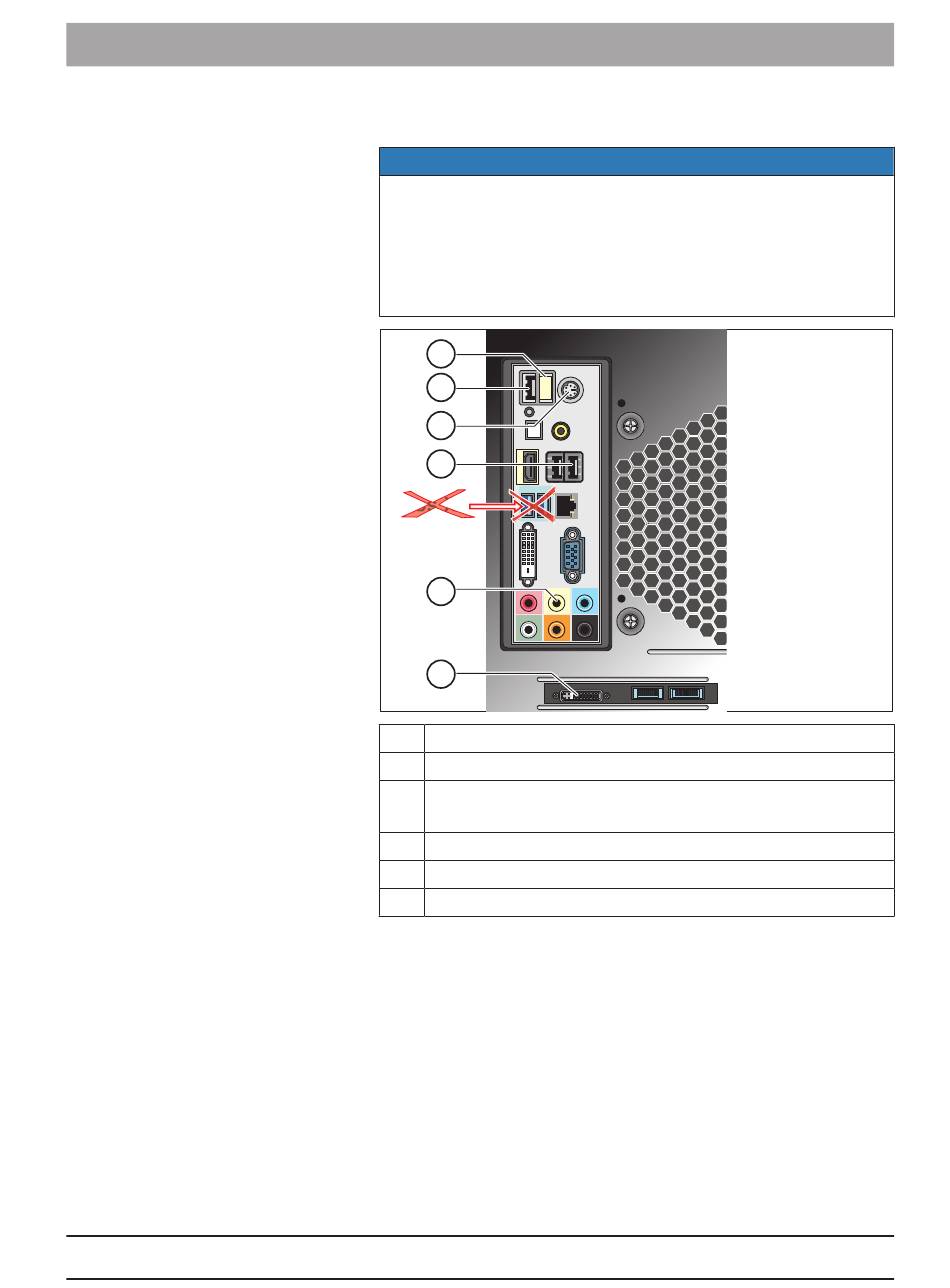

A USB license stick
B USB for inEos X5
C Keyboard/mouse
Alternatively: Connection via USB
D USB for inEos X5 foot control
E Optional: Audio output
F Monitor
1. Connect the keyboard and the mouse to the PC.
2. Connect the monitor to the PC with the VGA/DVI cable.
3. Turn on the monitor and PC power supplies.
4. Turn on the power switch on the rear panel of the PC (if present).
