Summary of Contents for Dentsply Sirona X-SMART IQ

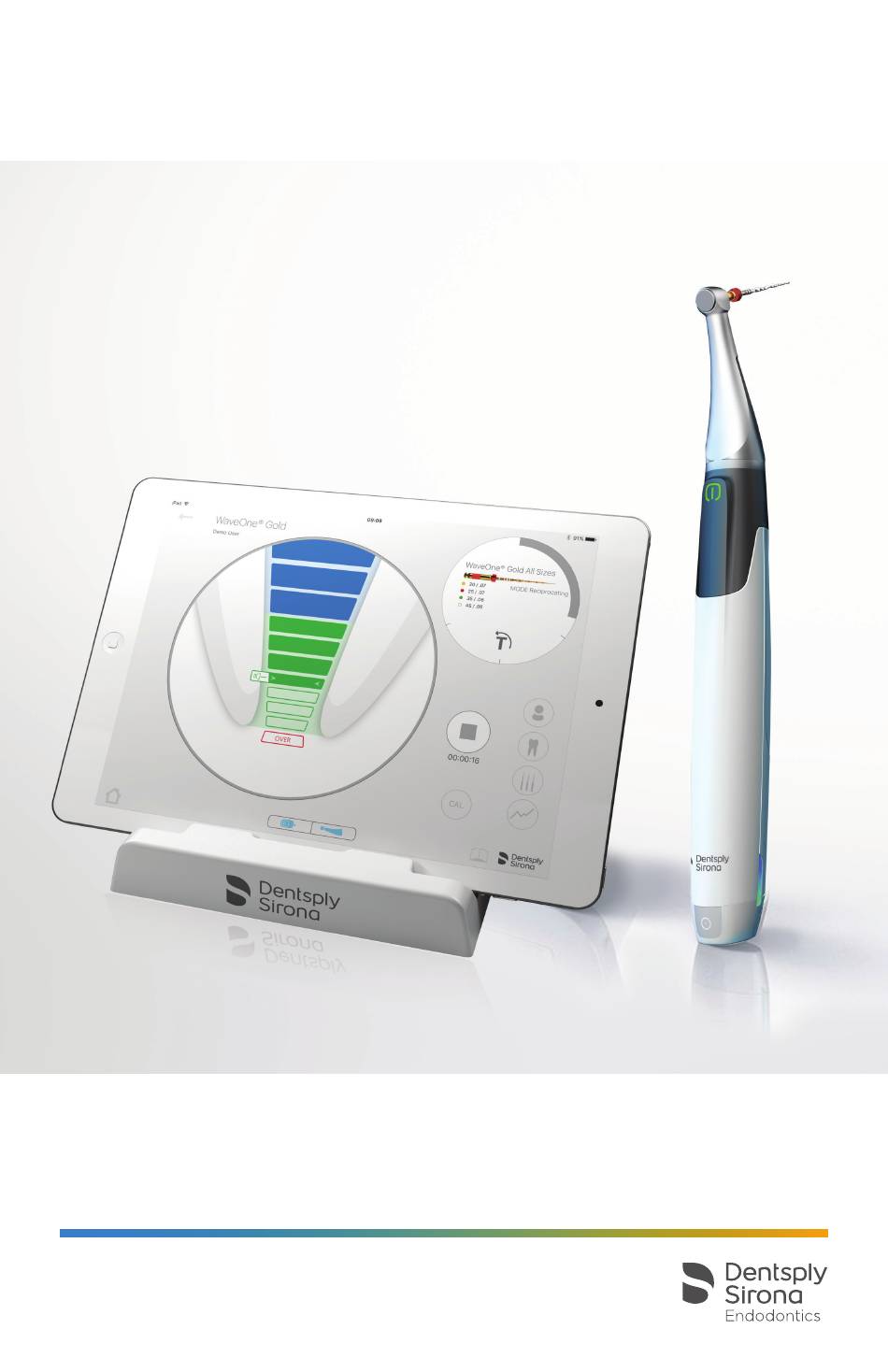

  • Page 1 X-SMART IQ ™ Getting Started Guide...

  • Page 2: Package Contents

    Package Contents Motor handpiece support and case Motor handpiece Image Uneditable Contra-angle Spray nozzle (used for lubrication) Getting Started Guide Charger Assembly Protective sleeve barrier Rubber plugs and protective case opener...
  • Page 3 iPad® set-up Activate the AssistiveTouch feature The AssistiveTouch feature allows to emulate the iPad Home button which is not accessible when in the protective case. Accessibility Assi iveTouch Settings General Activate the Bluetooth® The connection between the motor handpiece and the application is done via Bluetooth®.
  • Page 4 Protective Handpiece Case Setup Enclose the iPad mini in the protective Separate the motor handpiece ™ case and place the rubber plugs on the cover from the motor camera and the charging port. handpiece support. Need new images and copy Insert copy about protective sleeves? Install the motor handpiece case as protective case holder.
  • Page 5 Pairing the Motor Handpiece to the App Open the application. Press the multi-funtion button and check that the Bluetooth ® blue LED is blinking. Wait a few seconds until the application detects the motor handpiece. Check the motor handpiece serial number and click on the corresponding number on the iPad screen.

  • Page 6: Start Treatment

    Application Access to user data and logout Consult and edit treatment reports Consult the file library and create or edit file sequences Start Treatment Adjust torque and speed parameters Enable or disable the auto-reverse function Motor handpiece calibration Select your file sequence (or file system) Visualize the torque that was applied to the file...
  • Page 7 Access to Parameters (volume, language, etc.), Statistics and Information Bluetooth connection between the iPad ® and the motor handpiece (signal power) Motor handpiece level of battery Access to the stand-alone mode selection (see next page) User Manual Start and Record Treatment Create or select a patient record number...

  • Page 8: Motor Handpiece

    Motor Handpiece Reciprocating motion mode LED status. Motor START/STOP button. Continuous rotation mode LED status. iPad mini / motor handpiece ™ Bluetooth connection ® LED status. Multifunction button The multifunction button provides the following functions: • Pair the motor handpiece to the application via Bluetooth ®...

  • Page 9: After Use

    After use Store and charge the motor handpiece Full recharge: 6 hours Autonomy: 2 days with 8 treatments per day (= 16 treatments in total). It is recommended to fully charge the motor handpiece battery before using the first time. Do not use any other charger than the one supplied.

  • Page 10: Disinfection And Cleaning

    Disinfection and cleaning Foreword For hygiene and sanitary safety purposes, the contra-angle must be cleaned, disinfected and sterilized before each usage to prevent any contamination. This concerns the first use, as well as all subsequent uses. The use of a protective barrier sleeve is highly recommended. Motor handpiece Do not spray cleaning solutions directly on the motor handpiece.

  • Page 11: Helpful Hints

    Helpful hints Multi-function button Press the multi-function button to switch to the next file. To reset the motor handpiece, press the multi-function button for 10 seconds. Close an application Pinch 4 or 5 fingers together to close an application and return to the home screen. Additional Information This document does not replace the User Manual.
  • Page 12 The Bluetooth word mark and logos are registered ® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Dentsply Sirona is under license. DENTSPLY Tulsa Dental Specialties CONSULT...
