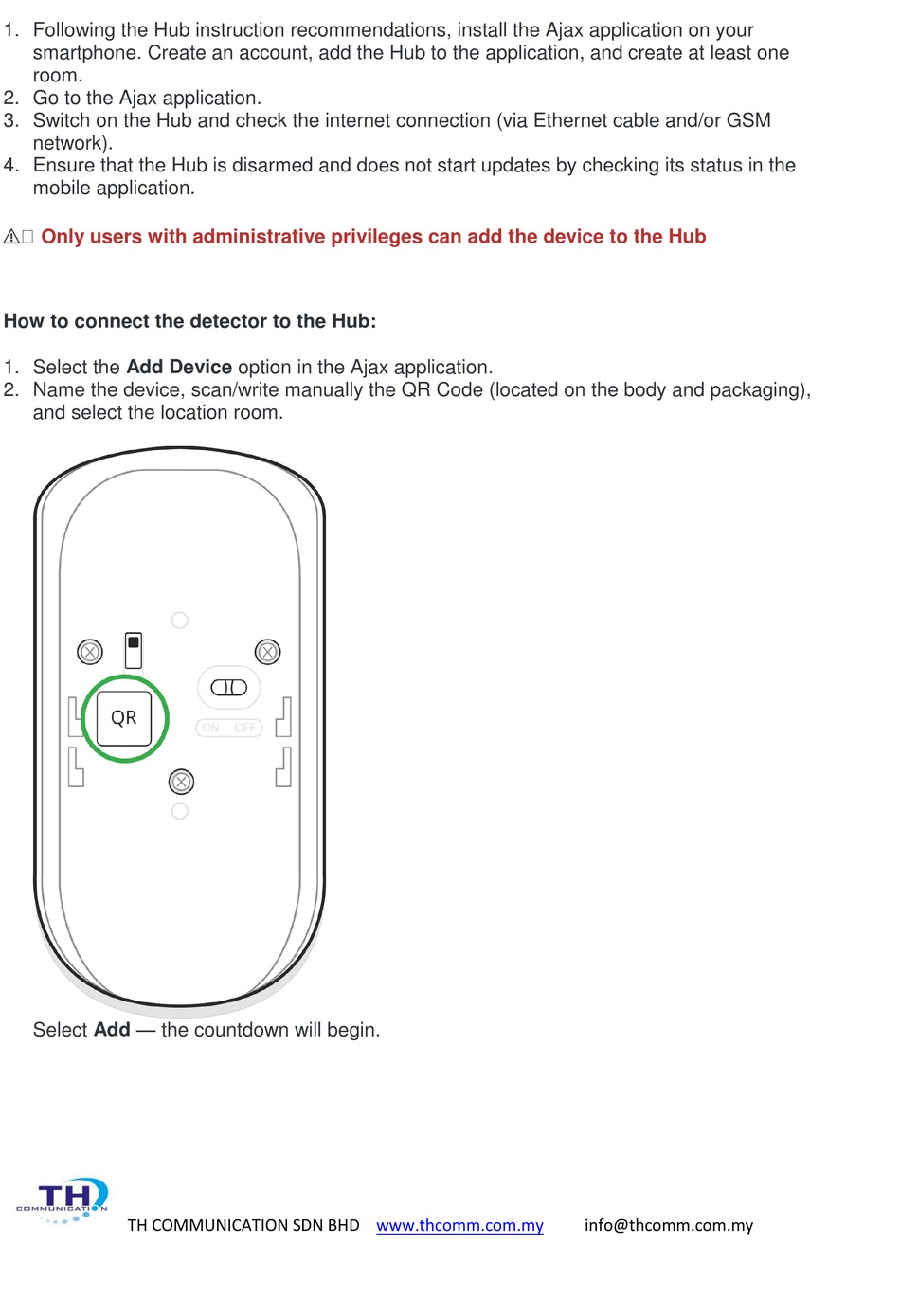

AJAX MotionProtect User Manual page 3

1. Following the Hub instruction recommendations, install the Ajax application on your
smartphone. Create an account, add the Hub to the application, and create at least one
room.
2. Go to the Ajax application.
3. Switch on the Hub and check the internet connection (via Ethernet cable and/or GSM
network).
4. Ensure that the Hub is disarmed and does not start updates by checking its status in the
mobile application.
⚠
Only users with administrative privileges can add the device to the Hub
How to connect the detector to the Hub:
1. Select the Add Device option in the Ajax application.
2. Name the device, scan/write manually the QR Code (located on the body and packaging),
and select the location room.
Select Add — the countdown will begin.
