AJAX MotionProtect User Manual page 2

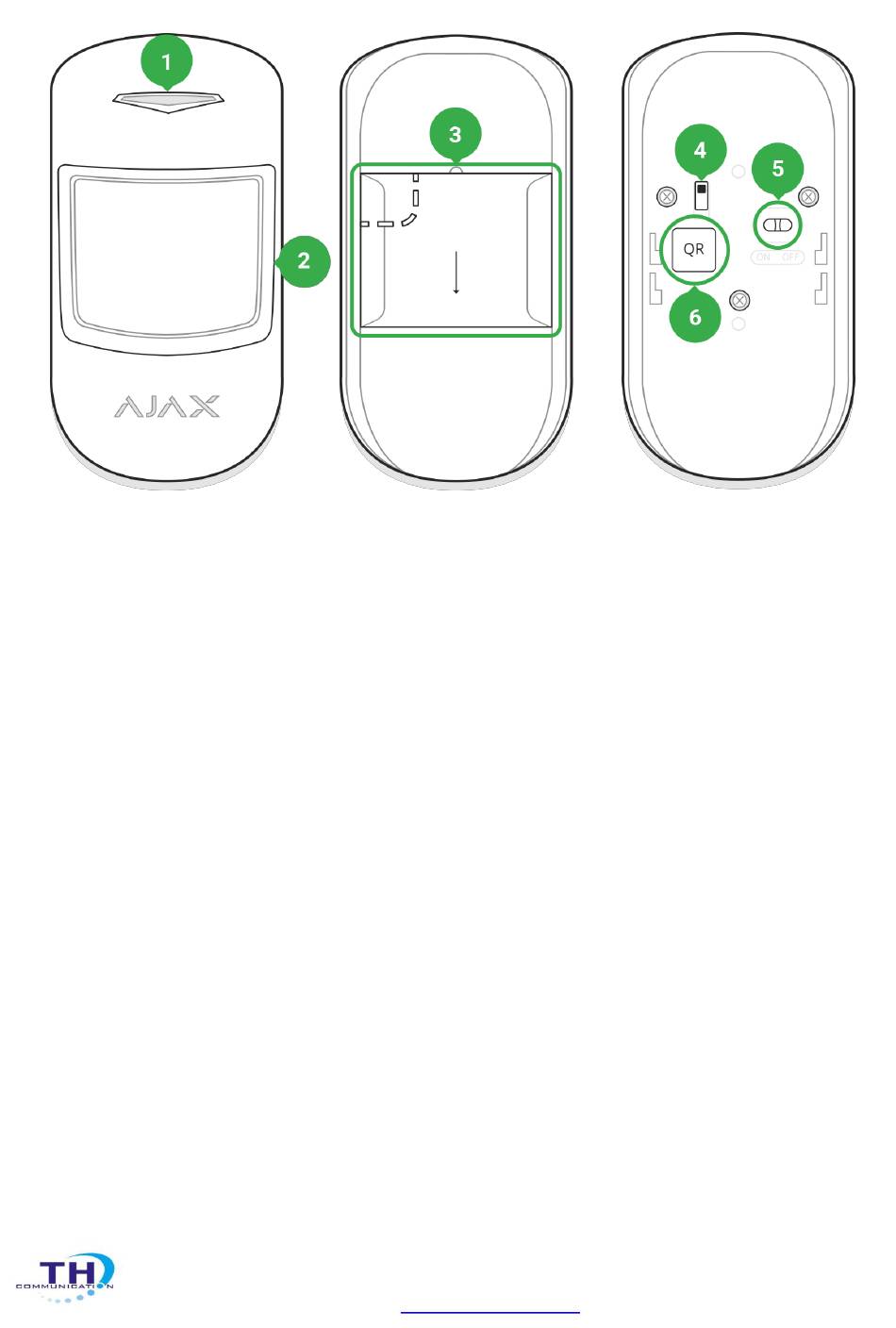

1. LED indicator
2. Motion detector lens
3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case
of any attempt to tear off the detector from the surface)
4. Tamper button
5. Device switch
6. QR code
MotionProtect Operating Principle
Thermal PIR sensor of MotionProtect detects intrusion into a protected room by detecting
moving objects whose temperature is close to the temperature of the human body. At that, the
detector can ignore domestic animals - you only need to set up the suitable sensitivity in the
settings.
When the MotionProtect Plus detects motion, it will additionally carry out radio frequency
scanning of the room, preventing false actuation from thermal interferences: air flows
from sun-heated curtains and louvre shutters, operating thermal air fans, fireplaces, air
conditioning units, etc.
After actuation, the armed immediately transmits an alarm signal to the Hub, activating the
sirens connected to the hub and notifying the user and private security company.
If before arming system the detector has detected motion, it will not set in the armed mode
immediately, but during the next inquiry by the hub.
Connecting the Detector to the Ajax security system
Before starting connection:
