STEP 2

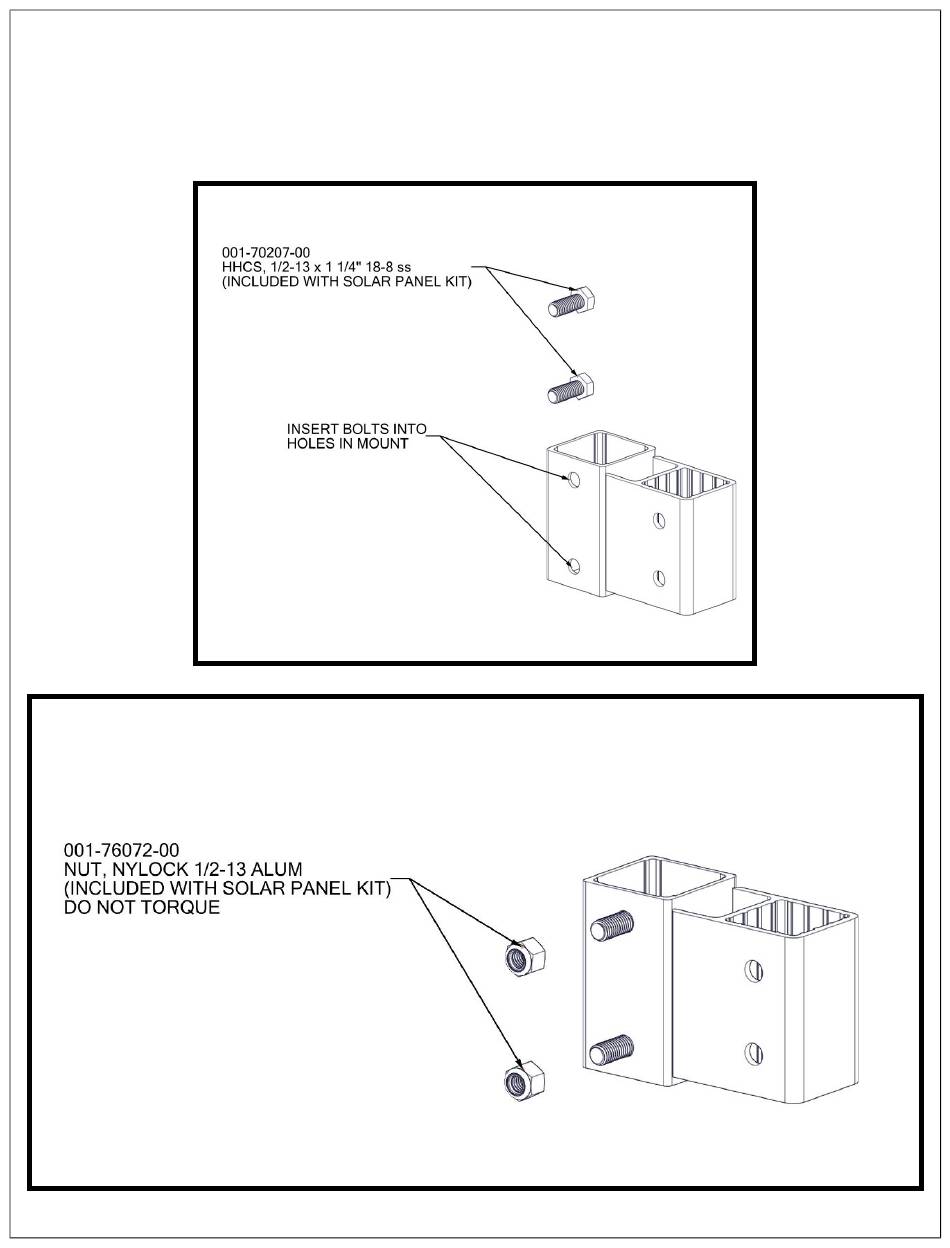

INSTALL (2) ½" X 1 1/4" BOLTS (INCLUDED IN SOLAR PANEL KIT) INTO CLAMP WELDMENT (FIGURE
2.1). PLACE (2) ½" NYLOCK NUTS ON BOLTS (INCLUDED WITH SOLAR PANEL KIT). DO NOT TORQUE
(FIGURE 2.2).
FIGURE 2.1
FIGURE 2.2
SHEET 5 OF 8
