FLOE LEG EXTENSIONS
SMALL LIFTS (V2000-VSD5000 PONTOON)
LARGE LIFTS (VSD6000-VSD8000)
ASSEMBLY INSTRUCTIONS
KIT P/N 511-06005-00, 511-06006-00

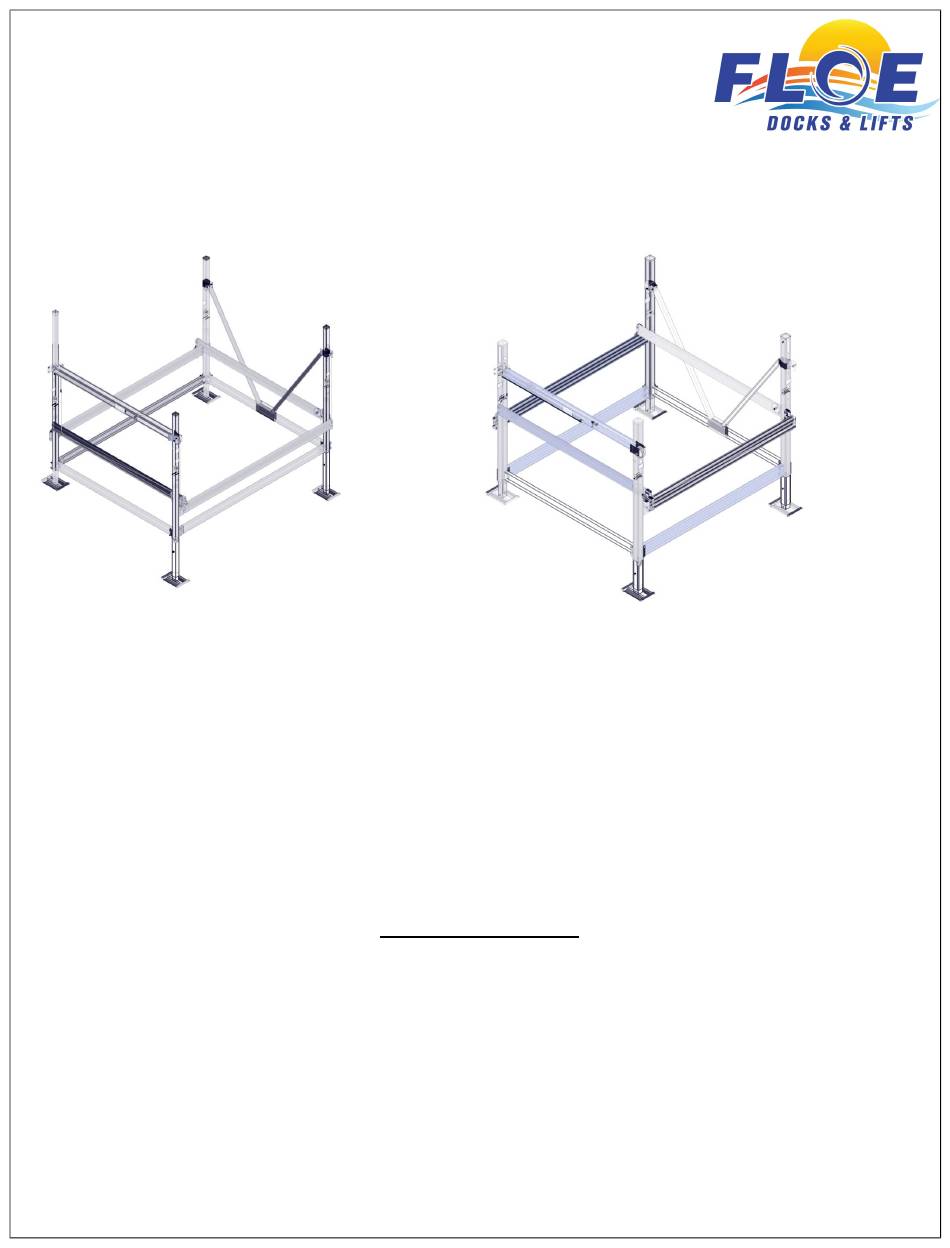

*V2000-VSD5000 PONTOON (VSD5000 SHOWN)
FOR INSTALLATION OF LEG EXTENSIONS, THE LIFT MUST BE RAISED ON ONE
END (BOTH IF INSTALLING TWO KITS). BE SURE TO PROPERLY SUPPORT THE LIFT
TO AVOID TIPOVER, WHICH MAY LEAD TO SERIOUS INJURY, DEATH, OR
INSTRUCTION P/N: 611-06005-00
RELEASED 7/11/19
IMPORTANT NOTE
DAMAGE TO LIFT AND OR LIFT COMPONENTS.
*VSD6000-8000 (VSD6500/8000 SHOWN)
SHEET 1 OF 8
*LIFT NOT INCLUDED
TOOLS REQUIRED
-(2) 3/4" WRENCHES/SOCKETS
-TAPE MEASURE
-TORQUE WRENCH
-HIGH LIFT JACK (OR
EQUIVALENT)
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Floe V2000
Summary of Contents for Floe V2000
- Page 1 FLOE LEG EXTENSIONS SMALL LIFTS (V2000-VSD5000 PONTOON) LARGE LIFTS (VSD6000-VSD8000) ASSEMBLY INSTRUCTIONS KIT P/N 511-06005-00, 511-06006-00 *LIFT NOT INCLUDED *V2000-VSD5000 PONTOON (VSD5000 SHOWN) *VSD6000-8000 (VSD6500/8000 SHOWN) TOOLS REQUIRED -(2) 3/4” WRENCHES/SOCKETS -TAPE MEASURE -TORQUE WRENCH -HIGH LIFT JACK (OR EQUIVALENT)
- Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-06005-00 EXTENSION LEGS, V2000-VSD5000 NUMBER PART NUMBER QTY. DESCRIPTION 001-70218-00 HHCS, ½-13 x 3 ¾” 18-8 ss 001-76072-00 NUT, NYLOCK ½-13 ALUM. 111-00219-00 WELD’T, EXTENSION LEG – 27” P/N 511-06006-00 EXTENSION LEGS, VSD6000-8000 NUMBER PART NUMBER QTY.
- Page 3 PLACEMENT LEG EXTENSIONS CAN BE PLACED ON ANY END OR CORNER OF THE BOAT LIFT (ON CORNER POSTS “A” & “D” OR “B” & “C”). WHEN CHOOSING A LOCATION, ENSURE THAT THE LIFT WILL BE STABLE UPON INSTALLATION. EXTENSIONS ON CORNER EXTENSIONS ON CORNER POSTS “B”...
-
Page 4: Installation
INSTALLATION RAISE END OF LIFT WITH A HIGH LIFT JACK (OR EQUIVALENT) THAT WILL HAVE THE LEG EXTENSIONS INSTALLED ON. FOR SMALL LIFTS, RAISE FRAME BEAM 44” ABOVE THE GROUND (FIGURE 1.1). FOR LARGE LIFTS, RAISE FRAME BEAM 38” ABOVE THE GROUND (FIGURE 1.1A). REMOVE ½” NYLOCK NUT AND ½”... - Page 5 LOWER INNER LEGS USING ADJUSTING SCREW (FIGURE 1.3). FOR SMALL LIFTS, LOWER THE INNER LEG 10” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM OF THE CORNER POST (FIGURE 1.4). FOR LARGE LIFTS, LOWER THE INNER LEG 10-1/8” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM OF THE CORNER POST (FIGURE 1.4A).
- Page 6 SLIDE LEG EXTENSIONS ONTO INNER LEGS AND ALIGN HOLES (FIGURE 1.5: SMALL LIFTS, FIGURE 1.5A: LARGE LIFTS). FOR SMALL LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 3-3/4” BOLT AND (1) ½” NUT (FIGURE 1.6). FIGURE 1.5 FIGURE 1.6 FIGURE 1.6 SHEET 6 OF 8...
- Page 7 FOR LARGE LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 5 ½” BOLT AND (1) ½” NUT (FIGURE 1.6A). TORQUE TO 25 FT-LBS (FIGURE 1.7). RE-ATTACH SAND PADS TO LEG EXTENSIONS USING THE ½” BOLTS AND ½” NYLOCK NUTS THAT WERE USED TO ATTACH THEM TO THE LIFT’S INNER LEG (FIGURE 1.8).
- Page 8 SHEET 8 OF 8...
