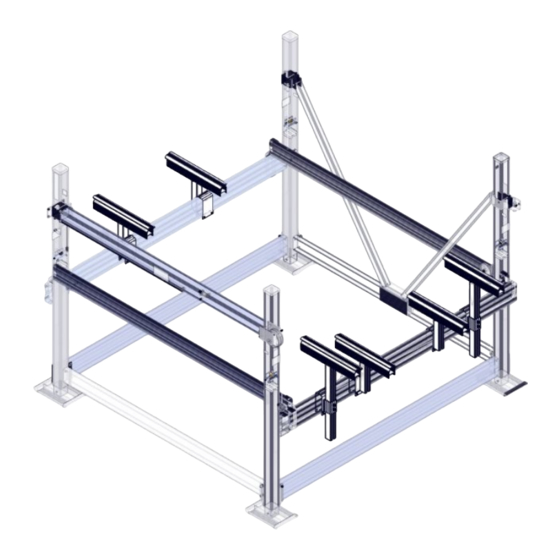

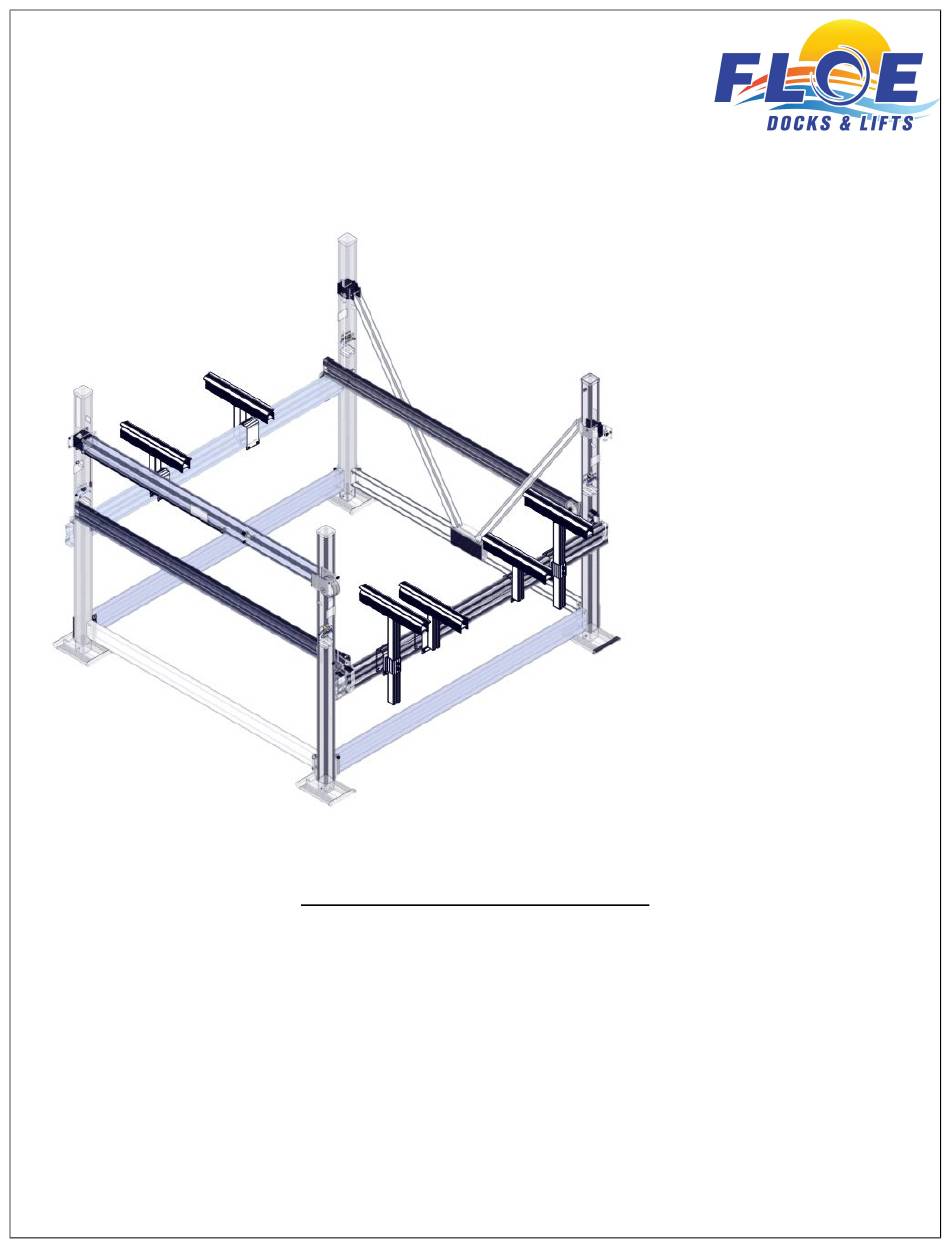

FLOE CRADLE PADS – OUTBOARD KIT
VSD8000-10000
ASSEMBLY INSTRUCTIONS
KIT P/N 511-02719-00
DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY
RECOMMEND THAT YOU CONSULT WITH YOUR BOAT'S MANUFACTURER TO
ENSURE THAT YOU ARE SUPPORTING YOUR BOAT PROPERLY TO AVOID ANY
INSTRUCTION P/N: 611-02719-00
RELEASED 3/27/19
*LIFT NOT INCLUDED
BUNK/CRADLE PAD DISCLAIMER
POTENTIAL DAMAGE.
SHEET 1 OF 8
TOOLS REQUIRED
-(2) 9/16" SOCKETS/
WRENCHES
-(2) 3/4" SOCKETS/
WRENCHES
-15/16" SOCKET/WRENCH
-TAPE MEASURE
-TORQUE WRENCH
-RECIPROCATING SAW OR
EQUIVALENT WITH METAL
BLADE (OPTIONAL, SEE
SHEET 4 & 7)
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VSD8000 and is the answer not in the manual?

Questions and answers

Related Manuals for Floe VSD8000

Summary of Contents for Floe VSD8000

  • Page 1 FLOE CRADLE PADS – OUTBOARD KIT VSD8000-10000 ASSEMBLY INSTRUCTIONS KIT P/N 511-02719-00 TOOLS REQUIRED -(2) 9/16” SOCKETS/ WRENCHES -(2) 3/4” SOCKETS/ WRENCHES -15/16” SOCKET/WRENCH -TAPE MEASURE -TORQUE WRENCH -RECIPROCATING SAW OR EQUIVALENT WITH METAL BLADE (OPTIONAL, SEE SHEET 4 & 7)

  • Page 2: Bill Of Materials

    BILL OF MATERIALS P/N 511-02719-00 CRADLE PAD – OUTBOARD KIT VSD8000-10000 NUMBER PART NUMBER QTY. DESCRIPTION 001-70119-00 HHCS, 3/8-16 x 4” 18-8 ss 001-70219-00 HHCS, ½-13 x 4” 18-8 ss 001-70305-00 HHCS, 5/8-11 x 1” 18-8 ss 001-71025-00 FLAT WASHER, 5/8” SAE 18-8 ss 001-76072-00 NUT, NYLOCK ½-13 ALUM.
  • Page 3 STEP 1 SLIDE CLAMPS TOGETHER (FIGURE 1.1), THEN SLIDE ONTO CRADLE BEAM WITH POCKETS FACING OUTWARDS (FIGURE 1.2). NOTE THAT ON WELMENTS THE TUBES ARE ON BIASED TOWARDS CENTER OF LIFT. TWO MORE SETS OF WELDMENTS AND CLAMPS ARE PLACED ON THE OPPOSITE CRADLE BEAM. PLACE (2) 5/8”...
  • Page 4 INSERT UPRIGHT TUBES INTO CLAMP WELDMENTS AND START (2) 5/8” NUTS PER POCKET ON BOLTS (FIGURE 1.4). ADJUST HEIGHT AND TORQUE TO 70 FT-LBS (FIGURE 1.5). FIGURE 1.4 BUNK/CRADLE PAD DISCLAIMER DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND THAT YOU CONSULT WITH...
  • Page 5 ATTACH CLAMP WELDMENTS TO CRADLE BEAM USING (2) 3/8” X 4” BOLTS AND (2) 3/8” NUTS. DO NOT TORQUE (FIGURE 1.6). REPEAT FOR INTERIOR WELDMENTS ON OTHER CRADLE BEAM. FIGURE 1.6 SHEET 5 OF 8...
  • Page 6 STEP 2 PLACE BUNKS ONTO UPRIGHTS WITH PADS ANGLED TO CRADLE PONTOON (FIGURE 2.1) AND ATTACH USING (1) 1/2” X 4” BOLTS AND (2) 1/2” NUTS PER UPRIGHT (FIGURE 2.2). TORQUE TO 35 FT-LBS (FIGURE 2.3). FIGURE 2.1 FIGURE 2.2 FIGURE 2.3 SHEET 6 OF 8...
  • Page 7 POSITION THE (4) CENTER CRADLE PAD ASSEMBLIES, (2) PER CRADLE BEAM, AND (2) OUTER CRADLE PAD ASSEMBLIES BASED ON THE WIDTH OF THE BOAT. PADS MUST BE POSITIONED SO THAT THEY UTILIZE THE CHINE OF THE HULL, AS THIS WILL HELP TO KEEP THE CRADLE PAD ASSEMBLIES VERTICAL (FIGURE 2.4 &...
  • Page 8 TORQUE 3/8” NUTS TO 35 FT-LBS (FIGURE 2.5). FIGURE 2.5 SHEET 8 OF 8...
