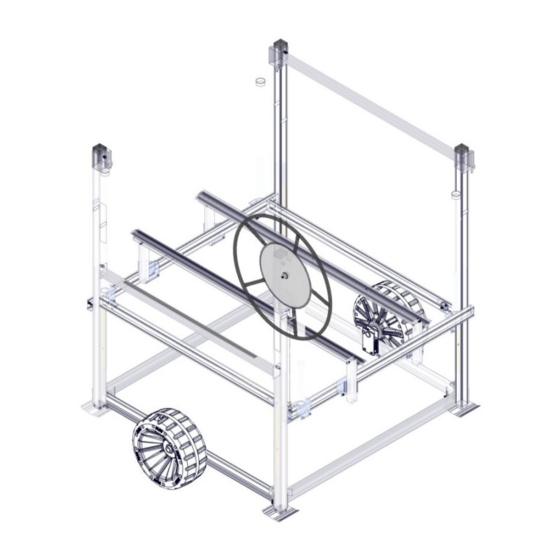

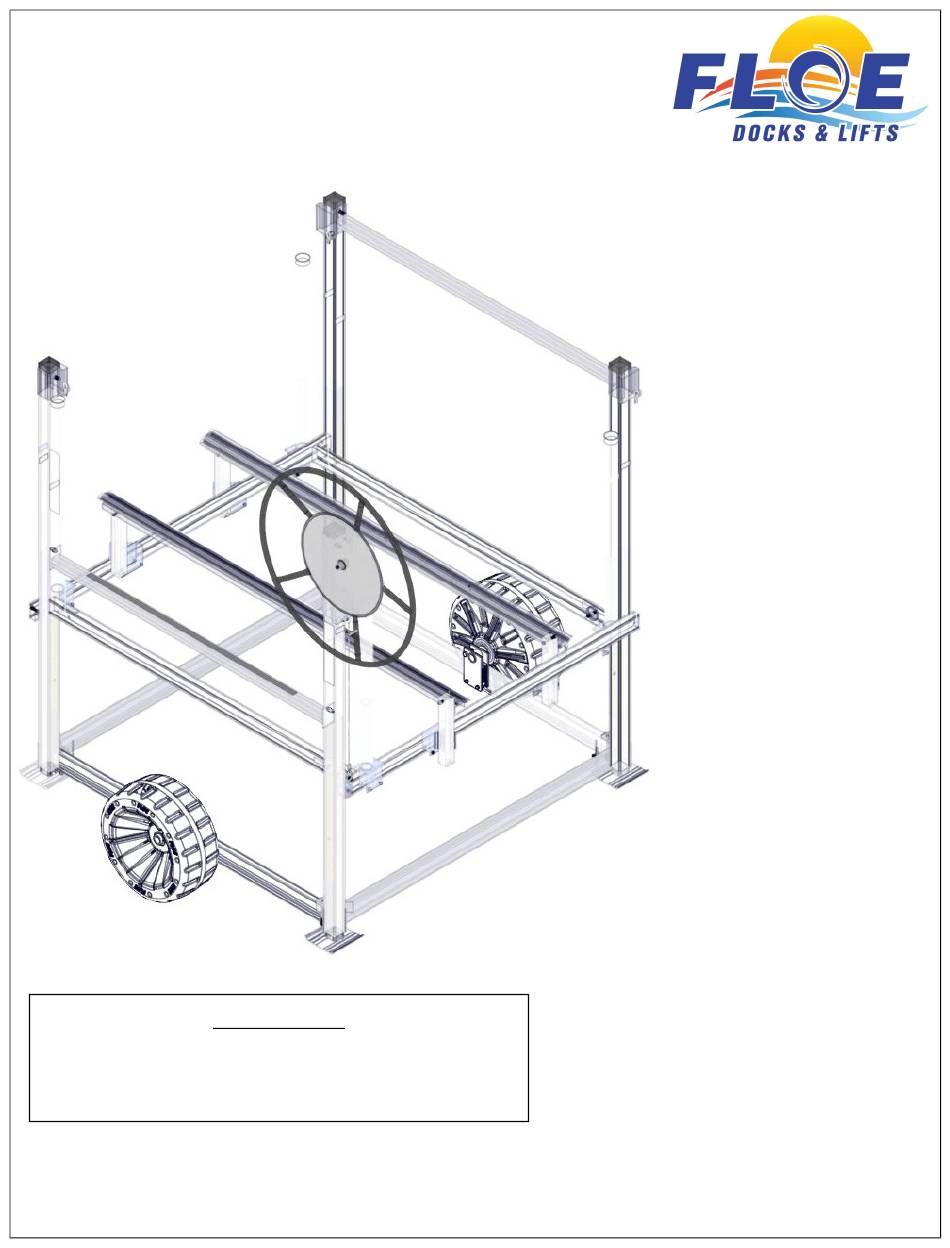

FLOE BOAT LIFT WHEEL KIT
V1600 PWC
ASSEMBLY INSTRUCTIONS
KIT P/N 511-05040-00
WHEELS SHOULD BE DRILLED WHEN
INSTALLED ON THE V1600 PWC LIFT
INSTRUCTION P/N: 611-05040-00
RELEASED 7/15/19
IMPORTANT
*LIFT NOT INCLUDED
SHEET 1 OF 8
TOOLS REQUIRED
- (2) 9/16" SOCKETS/WRENCHES
- (2) 3/4" SOCKETS/WRENCHES
-TORQUE WRENCH
-TAPE MEASURE
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the V1600 PWC and is the answer not in the manual?

Questions and answers

Related Manuals for Floe V1600 PWC

Summary of Contents for Floe V1600 PWC

  • Page 1 - (2) 3/4” SOCKETS/WRENCHES -TORQUE WRENCH -TAPE MEASURE *LIFT NOT INCLUDED IMPORTANT WHEELS SHOULD BE DRILLED WHEN INSTALLED ON THE V1600 PWC LIFT © Manufactured by: Floe International Inc. 48473 State Hwy. 65 INSTRUCTION P/N: 611-05040-00 McGregor, MN 55362 RELEASED 7/15/19 SHEET 1 OF 8 www.floeintl.com...
  • Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-05040-00 WHEEL KIT, V1600 PWC W/ DRILLED WHEELS NUMBER PART NUMBER QTY. DESCRIPTION 001-26728-00 CLIP, STAINLESS STEEL SPINDLE 001-70112-00 HHCS, 3/8-16 x 2 ¼” 18-8 ss 001-70212-00 HHCS, ½-13 x 2 ¼” 18-8 ss 001-76071-00 NUT, NYLOCK 3/8-16 ALUM.
  • Page 3 STEP 1 PLACE CLAMP ONTO SIDE FRAME BEAMS BETWEEN CORNER POSTS “A” & “B” AND CORNER POSTS “C” & “D” (FIGURE 1.1). SLIDE WELDMENT INTO CLAMP AND ONTO FRAME BEAM (FIGURE 1.2). FIGURE 1.1 FIGURE 1.2 SHEET 3 OF 8...
  • Page 4 POSITION CLAMPS 29 7/8” FROM THE CORNER POST (FIGURE 1.3). ATTACH CLAMPS TOGETHER USING (1) ½” X 2 ¼” BOLT, (2) 3/8” X 2 ¼” BOLTS (FIGURE 1.4), (1) ½” NYLOCK NUT, AND (2) 3/8” NYLOCK NUTS (FIGURE 1.5). FIGURE 1.3 FIGURE 1.4 FIGURE 1.5 SHEET 4 OF 8...
  • Page 5 TORQUE ½” NUT TO 5 FT-LBS AND 3/8” NUTS TO 15 FT-LBS FIRST, THEN SLIDE SPACER ONTO SPINDLE (FIGURE 1.6) FIGURE 1.6 SHEET 5 OF 8...
  • Page 6 STEP 2 SLIDE WHEEL ONTO SPINDLE (FIGURE 2.1), THEN WASHER OVER SPINDLE (FIGURE 2.2). PLACE SPINDLE CLIP INTO ONE HOLE ON SPINDLE, THEN SLIDE OVER UNTIL IT SNAPS INTO THE OTHER HOLE (FIGURE 2.2). FIGURE 2.1 FIGURE 2.2 SHEET 6 OF 8...
  • Page 7 IMPORTANT IT IS IMPORTANT THAT THE LIFT CRADLE IS RAISED AT LEAST 2 FEET (24”) WHEN TRANSPORTING THE LIFT IN OR OUT OF THE WATER. THIS WILL PREVENT WHEELS FROM HITTING THE SIDE CRADLE BEAMS, WHICH WOULD PREVENT THE WHEELS FROM TURNING FREELY (FIGURE 2.3). SHEET 7 OF 8...
  • Page 8 SHEET 8 OF 8...
