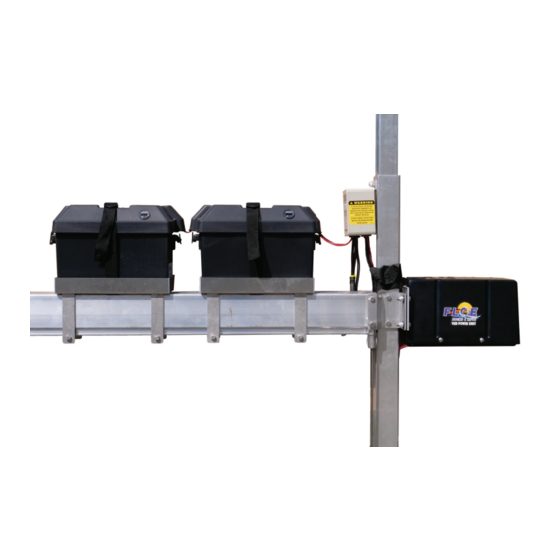

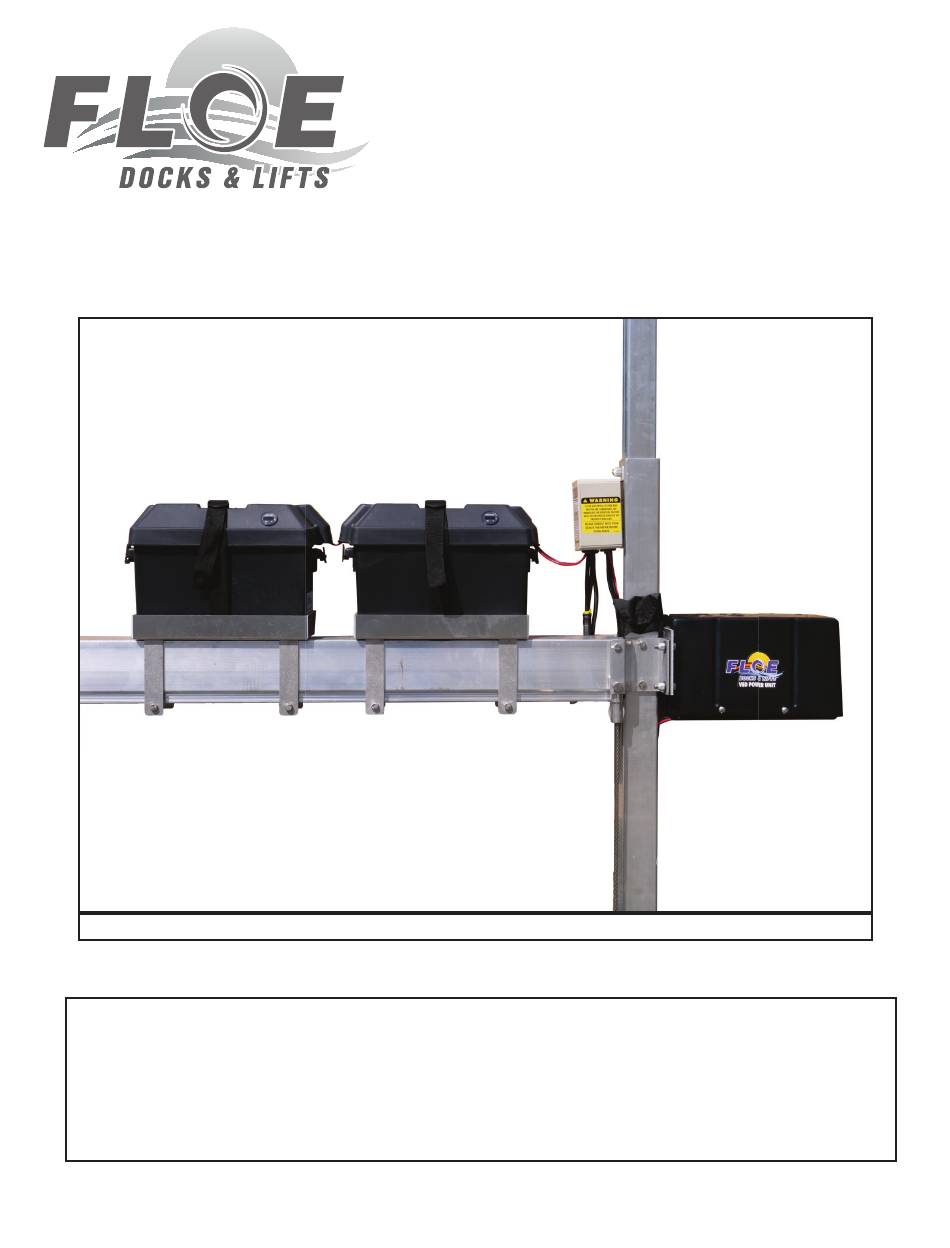

REPLACMENT INSTRUCTIONS
VSD COVER & BASE
VSD3800-10,000
VSD3800-5000 (DC VSD) P/N 511-38585-01
VSD3800-5000 (AC VSD) P/N 511-38590-00
VSD6000-10,000 (DC VSD) P/N 511-60785-01
VSD6000-8000 (AC VSD) P/N 511-60790-00
For more information, go to the owner support tab on the FLOE website
*LIFT & BATTERIES NOT INCLUDED
TOOLS REQUIRED
• (2) 9/16" SOCKETS/WRENCHES
• 5/32" OR 1/4" HEX BIT/ALLEN WRENCH
• 5/16" FLAT TIP SCREWDRIVER
• TORQUE WRENCH
•PRY BAR (IF MOTOR IS SEIZED INTO COUPLER)
1
Advertisement
Related Manuals for Floe VSD
Summary of Contents for Floe VSD
- Page 1 VSD3800-5000 (DC VSD) P/N 511-38585-01 VSD3800-5000 (AC VSD) P/N 511-38590-00 VSD6000-10,000 (DC VSD) P/N 511-60785-01 VSD6000-8000 (AC VSD) P/N 511-60790-00 For more information, go to the owner support tab on the FLOE website *LIFT & BATTERIES NOT INCLUDED TOOLS REQUIRED • (2) 9/16” SOCKETS/WRENCHES •...
- Page 2 (INCLUDES COVER WITH DECALS, BASE & SPEED NUTS, BASE SCREWS, LOWER SUPPORT FOAM, FOAM SPACERS, ANTI-SEIZE) PART NUMBER DESCRIPTION 511-38585-01 KIT, VSD COVER & BASE REPLC. 3.8-5K DC 511-38590-00 KIT, VSD COVER & BASE REPLC. 3.8-5K AC 511-60785-01 KIT, VSD COVER & BASE REPLC. 6-10K DC 511-60790-00 KIT, VSD COVER &...
- Page 3 IMPORTANT NOTE LOWER THE LIFT UNTIL THE CRADLE HAS REACHED THE LOWER LIMIT SWITCH AND THE WEIGHT OF THE BOAT IS NO LONGER ON THE LIFT. THERE MUST BE NO LOAD ON THE CRA- DLE/LIFT, AS THE DRIVE UNIT WILL BE REMOVED FROM THE LIFT.
- Page 4 STEP 1 REMOVE (2) SCREWS FROM THE BOTTOM OF THE MOTOR COVER (FIGURE 1.1). PULL THE COVER DOWN AND DISCONNECT THE MOTOR & BRAKE WIRES (FIGURE 1.2). FOR AC DRIVE UNITS, DIS- CONNECT THE PLUG THAT IS COMING FROM THE ASC (FIGURE 1.2A). FIGURE 1.1 FIGURE 1.2 DISCONNECT MOTOR AND BRAKE...
- Page 5 REMOVE THE FASTENERS SECURING THE DRIVE UNIT TO THE BALL SCREW CLAMP (FIGURE 1.3). PULL THE DRIVE UNIT OF OF THE END OF THE BALL SCREW. IF THE DRIVE UNIT IS SEIZED INTO THE COUPLER ON THE BALL SCREW, USE A PRY BAR BETWEEN THE MOTOR MOUNTING PLATE AND THE BALL SCREW CLAMP TO PRY EVENLY ON ALL FOUR SIDES OF THE MOTOR MOUNTING PLATE, ALTERNATING FROM SIDE TO SIDE AND TOP TO BOTTOM (FIGURE 1.4).
- Page 6 STEP 2 REMOVE THE OTHER TWO SCREWS SECURING THE BASE TO THE COVER (FIGURE 2.1). REMOVE THE FOAM INSERTS (FIGURE 2.2). FIGURE 2.1 FIGURE 2.2 REMOVE FOAM INSERTS...
- Page 7 REMOVE THE (4) FASTENERS SECURING THE MOUNT TO THE COVER. FOR VSD3800/5000 LIFTS, USE A 5/32” HEX BIT/ALLEN WRENCH TO REMOVE THE BOLTS (FIGURE 2.3). FOR VSD6000-10,000 LIFTS, USE A 1/4” HEX BIT/ALLEN WRENCH TO REMOVE THE BOLTS (FIGURE 2.4). DO NOT DISCARD BOLTS, THEY WILL BE RE-USED.
- Page 8 REMOVE THE MOTOR FROM THE COVER. REMOVE THE FOAM FROM THE MOTOR AND REPLACE WITH THE INCLUDED FOAM BY PEELING THE BACKING OFF OF THE DOUBLE SIDED TAPE AND PRESSING ONTO MOTOR CASE (FIGURE 2.5). PLACE THE NEW COVER OVER THE MOTOR WHILE ALIGNING THE MOUNTING HOLES ON THE MOTOR AND COVER.
- Page 9 REPLACE THE MOTOR PLATE AND THE PREVIOUSLY REMOVED BOLTS (FIGURE 2.7). TORQUE TO 10 FT-LB (FIGURE 2.8). FIGURE 2.7 FIGURE 2.8...
- Page 10 REPLACE THE FOAM INSERTS AS SHOWN (FIGURE 2.9 & 2.10). FOR AC DRIVE UNITS, KEEP THE FOAM AWAY FROM THE HEATER BAND. FIGURE 2.9 KEEP FOAM INSERTS AWAY FROM FIGURE 2.10 HEATER BAND...
- Page 11 PLACE THE BASE ONTO THE BOTTOM OF THE COVER (FIGURE 2.11). INSERT (2) SCREWS TO SE- CURE THE BASE TO THE COVER (FIGURE 2.12). FIGURE 2.11 FIGURE 2.12...
- Page 12 STEP 3 APPLY THE ENTIRE CONTENTS OF THE ANTI-SEIZE TO THE MOTOR SHAFT OF THE DRIVE UNIT (FIGURE 3.1). INSTALL THE DRIVE UNIT ONTO THE END OF THE BALL SCREW (FIGURE 3.2). FIGURE 3.1 FIGURE 3.2...
- Page 13 RE-INSTALL THE PREVIOUSLY REMOVED FASTENERS TO SECURE THE MOTOR TO THE BALL SCREW CLAMP (FIGURE 3.3). TIGHTEN FASTENERS UNTIL THERE IS A 1/8” GAP BETWEEN THE MOTOR PLATE AND BALL SCREW CLAMP (FIGURE 3.4). FIGURE 3.3 FIGURE 3.4...
- Page 14 WITH (2) SCREWS REMOVED FROM THE BOTTOM OF THE DRIVE UNIT COVER, RE-ATTACH THE WIRES COMING FROM THE ASC TO THE WIRES ON THE MOTOR (FOR DC DRIVE UNITS) (FIGURE 3.5). FOR AC DRIVE UNITS, RE-ATTACH THE PLUG COMING FROM THE ASC TO THE PLUG ON THE MOTOR (FIGURE 3.5A).
- Page 15 RE-INSTALL THE TWO SCREWS THAT WERE REMOVED TO CONNECT THE DRIVE UNIT WIRES/PLUG (FIGURE 3.6). FIGURE 3.6...
- Page 16 NOTES...
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 FLOE INTERNATIONAL, INC. 48473 STATE HIGHWAY 65 • McGREGOR, MN 55760 www.fl oeintl.com All material copyright © 2022 FLOE International, Inc. Specifi cations subject to change without notice. P/N 611-45018-02 08/10/22...
