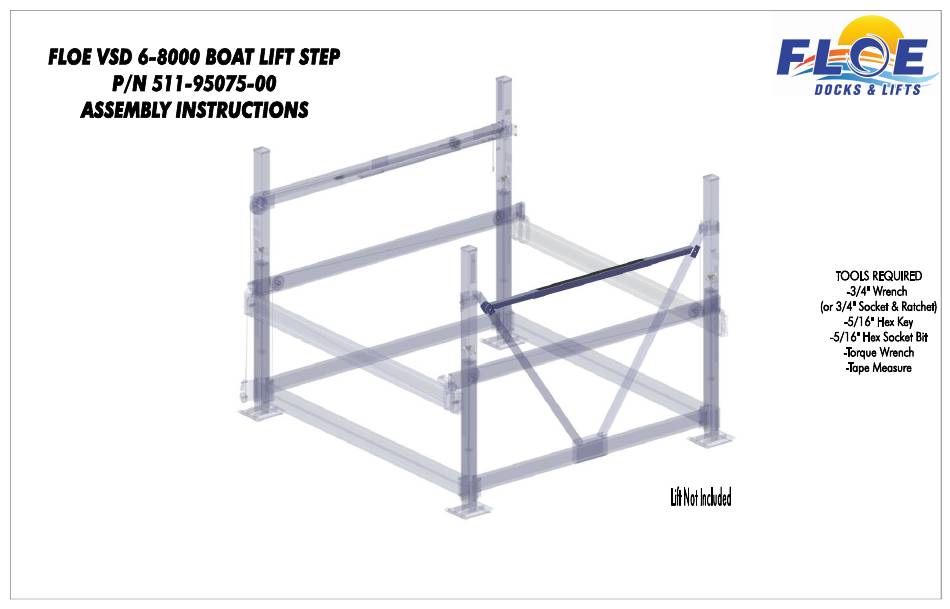

- Page 1 ©Manufactured by: Floe International Inc. 48473 State Hwy. 65 Instructions P/N McGregor, MN 611-95075-00 55760 SHEET 1 OF 3 Issued 6/19/17 www.floeintl.com...

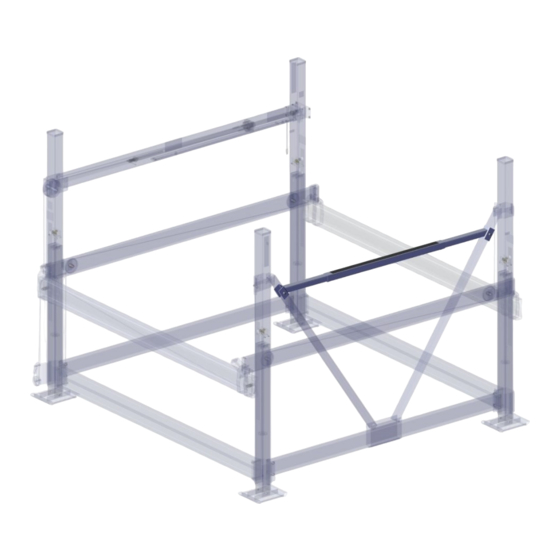

- Page 2 6-8000 LIFT STEP EXPLODED/BOM STEP, 6000-8000 BOAT LIFT P/N 511-95075-00 PART NO. QTY. DESCRIPTION 001-70205-00 HHCS, ½-13 x 1” 18-8 SS 001-71021-00 FLAT WASHER, ½” 18-8 SS 001-73834-00 BHCS, 1/2-13 x 1” 18-8 SS 001-76072-00 NUT, NYLOCK ½-13 ALUM. 111-95091-00 ASS’Y, OUTER TUBE LIFT STEP 55”...
- Page 3 STEP 1 ASSEMBLE FASTENERS (FIG.1) AND ALIGN TO JOIN INNER AND OUTER SUPPORT BRACKETS (FIG. 2). FIG. 1 FIG. 2 STEP 3 STEP 2 INSERT ½-13 x 1” BUTTON BOLTS IN EACH END INSERT INNER SUPPORT BRACKETS WHILE ACCOUNTING BRACKET. TIGHTEN WHEN DESIRED LOCATION OF A MINIMUM OF TEN INCHES OF OVERLAP.
- Page 4 SHEET 4 OF 3...
