Floe VSD6500 Assembly Instructions Manual

Pontoon cradle pads
Hide thumbs Also See for VSD6500:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

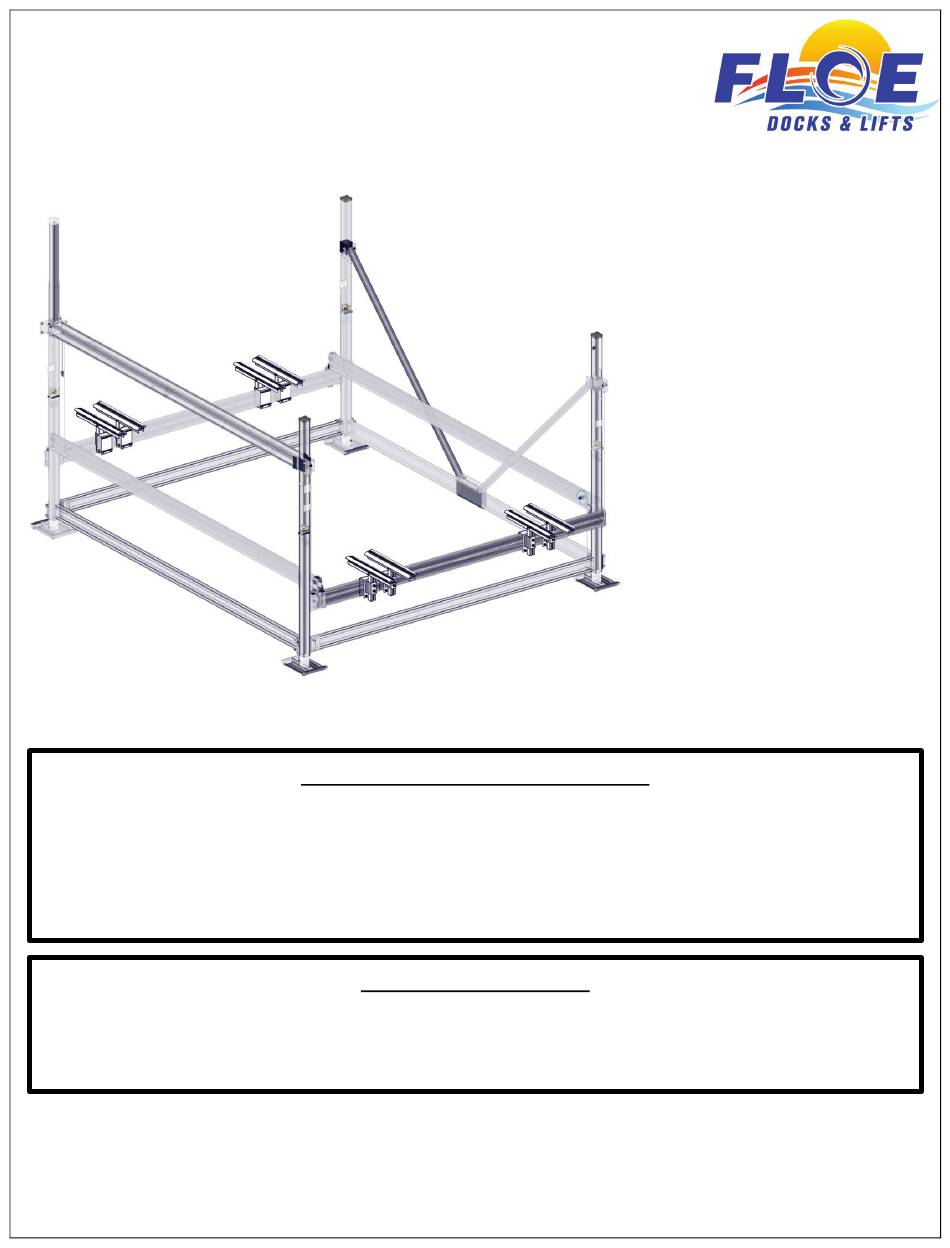

FLOE PONTOON CRADLE PADS
VSD6500-VSD10,000 WIDE
ASSEMBLY INSTRUCTIONS
KIT P/N 511-02270-00
DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY
RECOMMEND THAT YOU CONSULT WITH YOUR BOAT'S MANUFACTURER TO
ENSURE THAT YOU ARE SUPPORTING YOUR BOAT PROPERLY TO AVOID ANY
FOR TRI-TOONS, REFER TO THE INSTRUCTIONS (611-02275-00) INCLUDED
WITH THE CRADLE PAD ADD-ON KIT FOR BUNK UPRIGHT PLACEMENT
INSTRUCTION P/N: 611-02270-00
RELEASED 9/20/22
BUNK/CRADLE PAD DISCLAIMER
POTENTIAL DAMAGE.
INSTALLATION NOTE
SHEET 1 OF 8
TOOLS REQUIRED
-(2) 9/16" SOCKET/WRENCH
-3/4" SOCKET/WRENCH
-TAPE MEASURE
-TORQUE WRENCH
-MARKER
-0.406" (13/32") DRILL BIT &
DRILL (MAY BE NECESSARY FOR
VSD10,000 WIDE LIFTS LIFTS)
*LIFT NOT INCLUDED
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VSD6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe VSD6500

Summary of Contents for Floe VSD6500

  • Page 1 FLOE PONTOON CRADLE PADS VSD6500-VSD10,000 WIDE ASSEMBLY INSTRUCTIONS KIT P/N 511-02270-00 TOOLS REQUIRED -(2) 9/16” SOCKET/WRENCH -3/4” SOCKET/WRENCH -TAPE MEASURE -TORQUE WRENCH -MARKER -0.406” (13/32”) DRILL BIT & DRILL (MAY BE NECESSARY FOR VSD10,000 WIDE LIFTS LIFTS) *LIFT NOT INCLUDED...
  • Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-02270-00 PONTOON CRADLE PADS, VSD6500-VSD10K WIDE NUMBER PART NUMBER QTY. DESCRIPTION 001-70114-00 HHCS, 3/8-16 x 2-3/4” 18-8 ss 001-70119-00 HHCS, 3/8-16 x 4” 18-8 ss 001-70205-00 HHCS, 1/2-13 x 1” SS 18-8 001-71022-00 FLAT WASHER, 1/2” USS SS 18-8 001-76071-00 NUT, NYLOCK 3/8-16 ALUM.

  • Page 3: Installation

    INSTALLATION SLIDE CLAMPS TOGETHER (FIGURE 1.1), THEN ONTO CRADLE BEAM WITH POCKETS FACING OUTWARDS (FIGURE 1.2). FIGURE 1.1 FIGURE 1.2 SHEET 3 OF 8...
  • Page 4 NOTE: IF CRADLE BEAM WELDMENT IMPEDES BOLT PLACEMENT IN UPRIGHT CLAMPS, DRILL A 13/32” HOLE THROUGH THE 2” TUBES ON THE CRADLE BEAM (VSD10000 INSTALLATIONS ONLY (FIGURE 1.2A). PLACE (2) 1/2” X 1” BOLTS AND (2) 1/2” WASHERS INTO EACH POCKET (FIGURE 1.3).
  • Page 5 INSERT UPRIGHT TUBES INTO CLAMP WELDMENTS AND START 1/2” NUTS ON BOLTS (FIGURE 1.4). ADJUST HEIGHT WHILE AND HAND TIGHTEN FASTENERS ONLY (FIGURE 1.5). FIGURE 1.4 BUNK/CRADLE PAD FIGURE 1.5 DISCLAIMER DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND THAT YOU CONSULT WITH...
  • Page 6 SLIDE CRADLE PADS ONTO UPRIGHTS (FIGURE 1.6) AND ATTACH USING (1) 3/8” x 2-3/4” BOLT AND (1) 3/8” NYLOCK NUT PER CRADLE PAD (FIGURE 1.7). TORQUE TO 35 FT-LBS (FIGURE 1.8) FIGURE 1.6 FIGURE 1.7 FIGURE 1.8 SHEET 6 OF 8...
  • Page 7 ATTACH CLAMP WELDMENTS TO CRADLE BEAM USING (2) 3/8” X 3” BOLTS AND (2) 3/8” NUTS (FIGURE 1.9). FIGURE 1.9 SHEET 7 OF 8...
  • Page 8 -FOLLOW THESE GUIDELINES FOR USING AND LOCATING THE PONTOON CRADLE PADS (FIGURE 1.10). -THE WIDTH OF THE CRADLE PADS SHOULD KEEP THE PONTOONS OFF THE CRADLE BEAMS BY APPROX. 1”. -THE CRADLE PADS SHOULD BE KEPT AS LOW AS POSSIBLE (NOT QUITE TOUCHING THE CLAMP). -TO PLACE CRADLE PAD BUNKS, FIND CENTER BETWEEN PONTOONS AND CENTER OF THE BOAT FROM PONTOONS AND TRANSLATE MEASUREMENT TO CRADLE BEAM TO DETERMINE CENTER OF EACH PAIR OF CRADLE PAD BUNKS.
