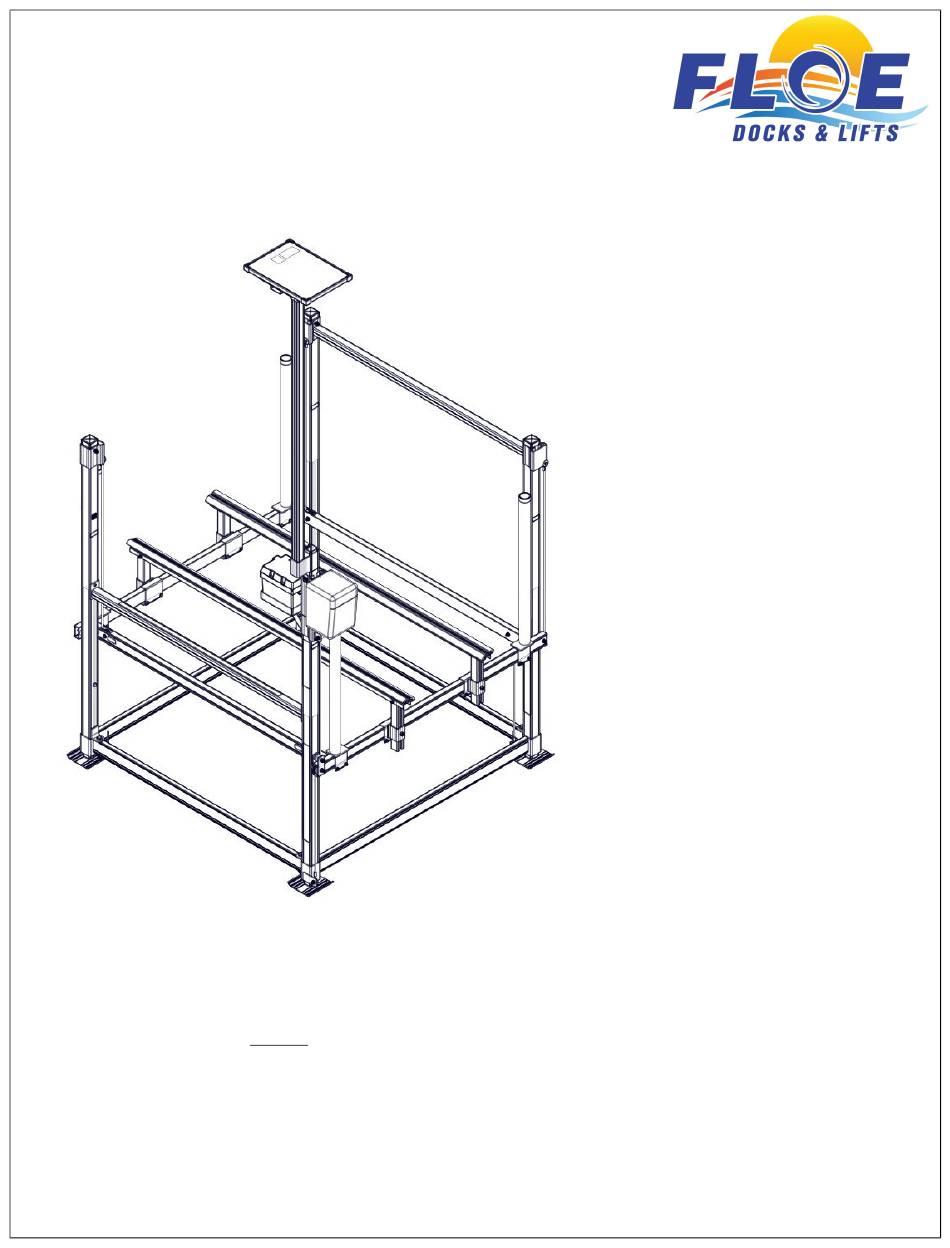

FLOE SOLAR PANEL MAST CLAMP
V1600 PWC
ASSEMBLY INSTRUCTIONS
KIT P/N 511-01359-00
REQUIRES 511-01356-00 (SOLD SEPARATELY)
MAY REQUIRE 910-16102-00 (SOLD SEPARATELY)
INSTRUCTION P/N: 611-01359-00
RELEASED 04/1/19
NOTE:
SHEET 1 OF 8
*LIFT & SOLAR PANEL KIT NOT INCLUDED
TOOLS REQUIRED
-9/16" SOCKET/WRENCH
-3/4" SOCKET/WRENCH
-TORQUE WRENCH
-TAPE MEASURE
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the V1600 PWC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe V1600 PWC

Summary of Contents for Floe V1600 PWC

  • Page 1 FLOE SOLAR PANEL MAST CLAMP V1600 PWC ASSEMBLY INSTRUCTIONS KIT P/N 511-01359-00 TOOLS REQUIRED -9/16” SOCKET/WRENCH -3/4” SOCKET/WRENCH -TORQUE WRENCH -TAPE MEASURE *LIFT & SOLAR PANEL KIT NOT INCLUDED NOTE: REQUIRES 511-01356-00 (SOLD SEPARATELY) MAY REQUIRE 910-16102-00 (SOLD SEPARATELY) © Manufactured by: Floe International Inc.
  • Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-01359-00 MOUNT, LOWER SP MAST CLAMP, V1600 NUMBER PART NUMBER QTY. DESCRIPTION 111-00490-00 WELD’T, V1600 SOLAR PANEL LOWER CLAMP SHEET 2 OF 8...
  • Page 3 STEP 1 IF INSTALLED, REMOVE VINYL CAP FROM TOP OF CORNER POST “A” (FIGURE 1.1). LOOSEN ½” NYLOCK NUT ON DC WINCH MOUNT, BUT DO NOT REMOVE (FIGURE 1.2). FIGURE 1.1 FIGURE 1.2 SHEET 3 OF 8...
  • Page 4 INSTALL INSERT INTO CORNER POST WHILE LEAVING 5 INCHES EXPOSED FROM TOP OF CORNER POST (FIGURE 1.3 & 1.4). TORQUE ½” NUT TO 60 FT-LBS (FIGURE 1.4). FIGURE 1.3 FIGURE 1.4 SHEET 4 OF 8...
  • Page 5 STEP 2 INSTALL (2) ½” X 1 1/4” BOLTS (INCLUDED IN SOLAR PANEL KIT) INTO CLAMP WELDMENT (FIGURE 2.1). PLACE (2) ½” NYLOCK NUTS ON BOLTS (INCLUDED WITH SOLAR PANEL KIT). DO NOT TORQUE (FIGURE 2.2). FIGURE 2.1 FIGURE 2.2 SHEET 5 OF 8...
  • Page 6 SLIDE CLAMP WITH BOLTS ONTO INSERT UNTIL CLAMP BOTTOMS OUT ON TOP OF CORNER POST (FIGURE 2.3). TORQUE 60 FT-LBS (FIGURE 2.4). FIGURE 2.3 FIGURE 2.4 SHEET 6 OF 8...
  • Page 7 STEP 3 REFER TO INSTRUCTIONS P/N 611-01345-00 FOR INFORMATION ON HOW TO ASSEMBLE SOLAR PANEL MAST (SOLD SEPARATELY). FEED WIRE HARNESS THROUGH LOWER MOUNT, THEN INSERT MAST INTO CLAMP. ALIGN HOLES IN MAST WITH HOLES IN CLAMP (FIGURE 3.1). ATTACH SOLAR PANEL MAST TO CLAMP USING (2) 3/8” X 1”...
  • Page 8 STEP 4 CONNECT THE RED LEAD TO THE POSITIVE TERMINAL AND THE BLACK LEAD TO THE NEGATIVE TERMINAL OF THE BATTERY. KEEP WIRES AWAY FROM ALL MOVING COMPONENTS. SHEET 8 OF 8...
