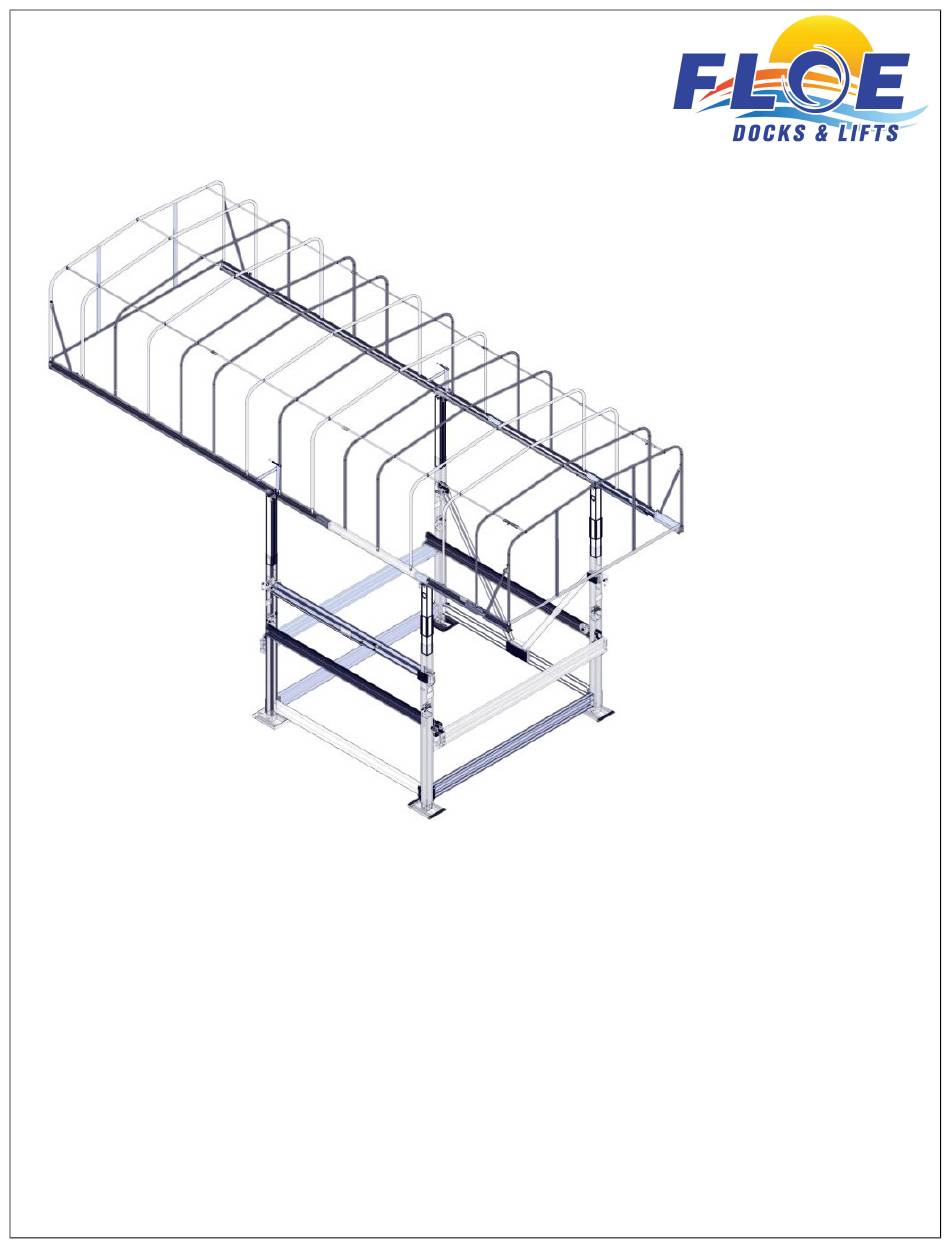

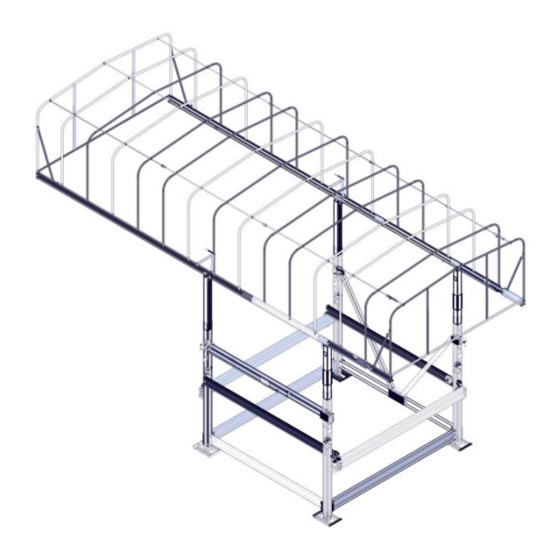

FLOE MAXIS EXTENSION KIT 6-10K
ASSEMBLY INSTRUCTIONS
KIT P/N 512-65030-00
INSTRUCTION P/N: 611-65030-00
RELEASED 06/12/19
*LIFT AND CANOPY NOT INCLUDED
SHEET 1 OF 8
TOOLS REQUIRED
-9/16" SOCKET/WRENCH
-3/4" SOCKET/WRENCH
-TORQUE WRENCH
-TAPE MEASURE
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com
Advertisement
Related Manuals for Floe MAXIS
Summary of Contents for Floe MAXIS
- Page 1 FLOE MAXIS EXTENSION KIT 6-10K ASSEMBLY INSTRUCTIONS KIT P/N 512-65030-00 TOOLS REQUIRED -9/16” SOCKET/WRENCH -3/4” SOCKET/WRENCH -TORQUE WRENCH -TAPE MEASURE *LIFT AND CANOPY NOT INCLUDED © Manufactured by: Floe International Inc. 48473 State Hwy. 65 McGregor, MN 55362 INSTRUCTION P/N: 611-65030-00 www.floeintl.com...
- Page 2 001-71021-00 FLAT WASHER, ½” 18-8 SS 001-76072-00 NUT, NYLOCK ½-13 ALUM. 002-00257-00 TUBE, MAXIS LEG EXTENSION 6-10K – 12” 002-00258-00 INSERT, CANOPY 6-10K W/ PIVOT HOLE – 44” 112-01075-00 ASS’Y, CANOPY INSERT W/ GUIDE HOLES – 44” SHEET 2 OF 8...
- Page 3 STEP 1 IF INSTALLED, REMOVE VINYL CAP FROM TOP OF EACH CORNER POST. USE A ½” X 1-1/4” BOLT AND ½” WASHER FROM CANOPY HOOP HARDWARE (FIGURE 1.1). PLACE THE BOLT AND WASHER INTO THE CORNER POST (FIGURE 1.2). SLIDE AN INSERT INTO EACH OF THE CORNER POSTS, THEN START A ½”...
- Page 4 THE MAXIMUM HEIGHT OF THE INSERTS IS 38” (6” OF ENGAGEMENT IN THE CORNER POSTS). THE MINIMUM HEIGHT OF THE INSERTS IS 26” (18” OF ENGAGEMENT IN THE CORNER POSTS) (FIGURE 1.5). TORQUE ½” NUT TO 60 FT-LBS (FIGURE 1.6). PROCEED TO INSTALL MAXIS CANOPY BY REFERRING TO MAXIS CANOPY FRAME INSTRUCTIONS.
- Page 5 STEP 2 (IF INSTALLING MAXIS TILTING CANOPY) INSTALL (1) ½” X 1 1/4” BOLT AND (1) ½” WASHER INTO EXTENSION TUBE. NOTE THAT THE EXTENSION TUBE IS SLID OVER THE INSERTS ON THE NON-TILTING SIDE. DEPENDING ON THE CONFIGURATION, IT IS EITHER ON THE MOTOR SIDE (CORNER POSTS “B” & “C”) OR THE LIFTING SIDE (CORNER POSTS “A”...
- Page 6 FIRST, SET HEIGHT OF EXTENSION TUBE 7-3/8” FROM TOP OF CORNER POST. THEN, SWING LOWER ACTUATOR MOUNT AND ACTUATOR TOWARDS EXTENSION TUBE (FIGURE 2.3). EXTENSION TUBE WILL BE APPROXIMATELY 5-3/16” FROM TOP OF TUBE TO TOP OF ACTUATOR MOUNT. TORQUE 60 FT-LBS (FIGURE 2.4).
- Page 7 NOTE (MAXIS TILT KIT INSTALLATIONS) SHEET 7 OF 8...
- Page 8 SHEET 8 OF 8...
