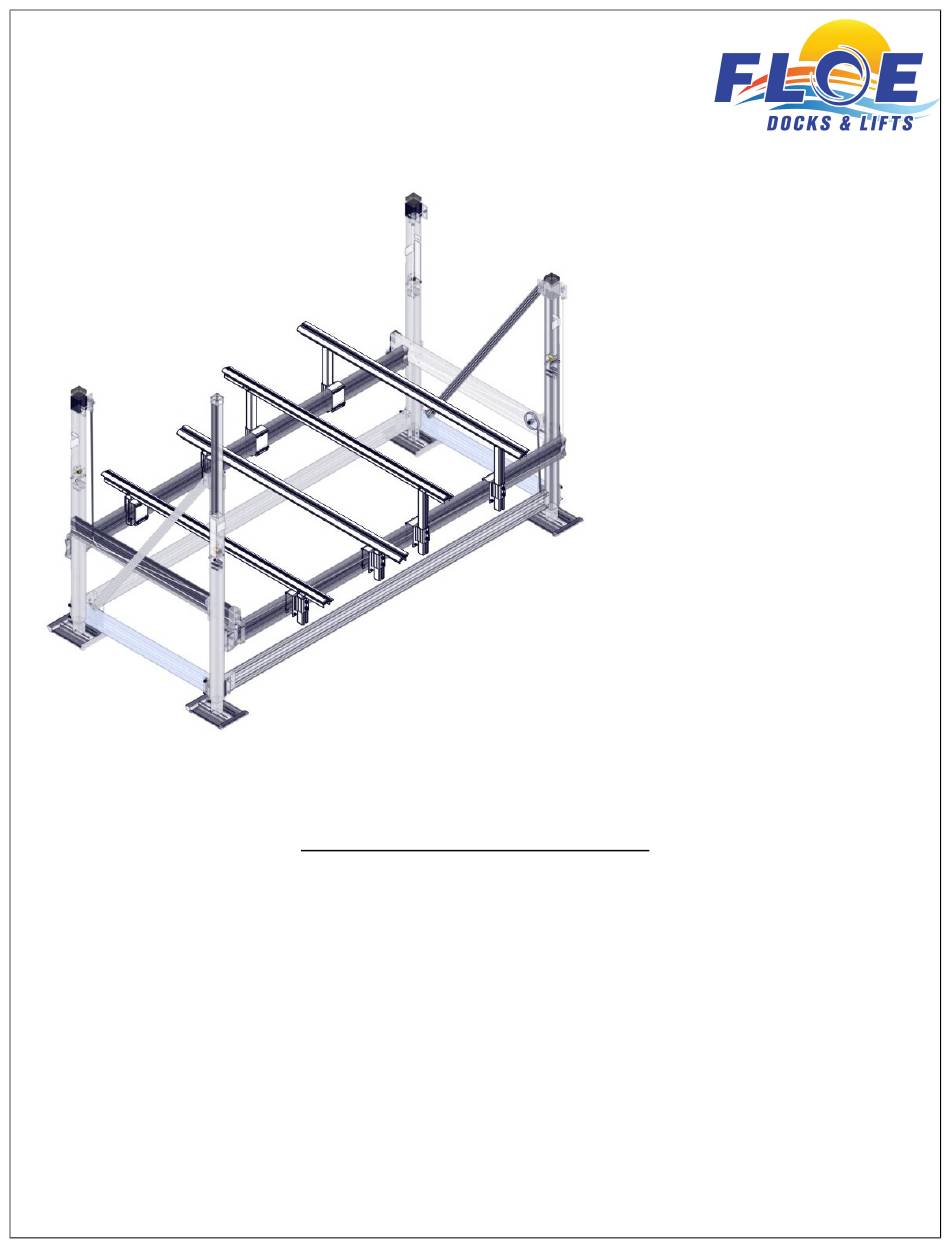

FLOE V2002/V2602 LENGTH BUNKS
ASSEMBLY INSTRUCTIONS
KIT P/N 511-02710-00
DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY
RECOMMEND THAT YOU CONSULT WITH YOUR BOAT'S MANUFACTURER TO
ENSURE THAT YOU ARE SUPPORTING YOUR BOAT PROPERLY TO AVOID ANY
INSTRUCTION P/N: 611-02710-00
RELEASED 3/27/19
*LIFT NOT INCLUDED
BUNK/CRADLE PAD DISCLAIMER
POTENTIAL DAMAGE.
SHEET 1 OF 8
TOOLS REQUIRED
-(2) 9/16" SOCKETS/
WRENCHES
-3/4" SOCKET
-TAPE MEASURE
-TORQUE WRENCH
-RECIPROCATING SAW OR
EQUIVALENT WITH METAL
BLADE (OPTIONAL, SEE SHEET
4 & 7)
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
Advertisement
Related Manuals for Floe V2002LENGTH BUNKS
Summary of Contents for Floe V2002LENGTH BUNKS
- Page 1 FLOE V2002/V2602 LENGTH BUNKS ASSEMBLY INSTRUCTIONS KIT P/N 511-02710-00 TOOLS REQUIRED -(2) 9/16” SOCKETS/ WRENCHES -3/4” SOCKET -TAPE MEASURE -TORQUE WRENCH -RECIPROCATING SAW OR EQUIVALENT WITH METAL BLADE (OPTIONAL, SEE SHEET 4 & 7) *LIFT NOT INCLUDED BUNK/CRADLE PAD DISCLAIMER DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND THAT YOU CONSULT WITH YOUR BOAT’S MANUFACTURER TO...
-
Page 2: Bill Of Materials
BILL OF MATERIALS P/N 511-0271-00 BUNK SYSTEM, V2002/V2602 COMPL NUMBER PART NUMBER QTY. DESCRIPTION 001-70114-00 HHCS, 3/8-16 x 2 ¾” 18-8 ss 001-70115-00 HHCS, 3/8-16 x 3” 18-8 ss 001-70205-00 HHCS, ½-13 x 1” SS 18-8 001-71022-00 FLAT WASHER, ½” USS ss 18-8 001-76349-00 NUT, 3/8-16 ALUM 001-76350-00... - Page 3 STEP 1 SLIDE CLAMP WELDMENTS OVER CRADLE BEAM (FIGURE 1.1). PLACE (2) ½” X 1” BOLTS AND (2) ½” WASHERS INTO EACH CLAMP BRACKET (FIGURE 1.2) FIGURE 1.1 FIGURE 1.2 SHEET 3 OF 8...
- Page 4 INSERT UPRIGHT TUBES INTO CLAMP WELDMENTS AND ATTACH USING (2) ½” NUTS, HAND TIGHT ONLY (FIGURE 1.3). ADJUST HEIGHT AND TORQUE TO 70 FT-LBS (FIGURE 1.4). FIGURE 1.3 FIGURE 1.4 NOTE: BUNK/CRADLE PAD DISCLAIMER DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND UPRIGHTS MAY HAVE TO BE CUT TO ALLOW FULL TRAVEL OF CRADLE ONCE THAT YOU CONSULT WITH YOUR BOAT’S MANUFACTURER TO INSURE THAT YOUR ARE...
- Page 5 STEP 2 PLACE BUNKS ONTO UPRIGHTS (FIGURE 2.1) AND ATTACH USING (2) 3/8” X 2 3/4” BOLTS AND (2) 3/8” NUTS PER UPRIGHT (FIGURE 2.2). FIGURE 2.1 FIGURE 2.2 FIGURE 2.1 SHEET 5 OF 8...
- Page 6 TORQUE TO 35 FT-LBS (FIGURE 2.3). ATTACH CLAMP WELDMENT TO CRADLE BEAM USING (2) 3/8” X 3” BOLTS AND (2) 3/8” NUTS, HAND TIGHTEN ONLY (FIGURE 2.4). FIGURE 2.2 FIGURE 2.4 SHEET 6 OF 8...
- Page 7 FIRST, FIND CENTER OF CRADLE BEAM, THEN SET WIDTH OF BUNKS BASED ON WATERCRAFT. (FIGURE 2.5). ONCE FINAL POSITION IS SET, TORQUE TO 35 FT-LBS (FIGURE 2.6). FIGURE 2.5 BUNK/CRADLE PAD DISCLAIMER DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND THAT YOU CONSULT WITH...
- Page 8 SHEET 8 OF 8...
