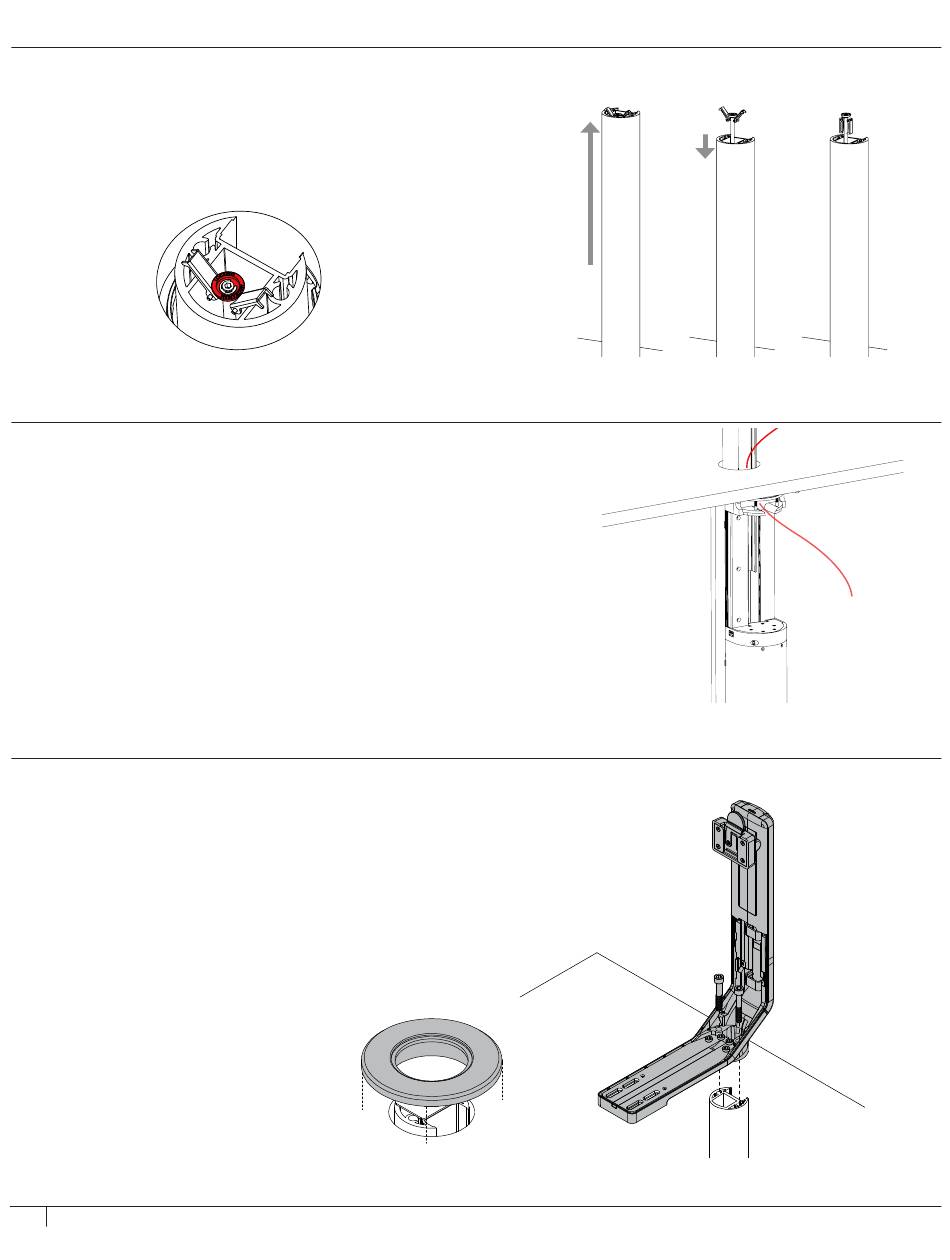

ST EP 4
Release Locking Mechanism
Step 4
• Loosen the screw located in the center of the locking mechanism.
Loosen the screw located in the center of the locking mechanism.
• Let the inner tube fully rise then, while pushing down the tube,
Let the inner tube fully rise, then while pushing down the tube, flip down the
flip down the tabs on the locking mechanism shaft.
tabs on the locking mechanism shaft. The locking mechanism will be stored
inside the inner tube.
• The locking mechanism will be stored inside the inner tube.
ST EP 5
Insert Cables
• Feed half of the length of both monitor power cables and video cables
through the 3.25" hole.
*Do not feed any USB cables during this step.
Step 5
Feed half of the length of both monitor power cables and video cables
through the 3.25" hole.
*Do not feed any usb cables during this step.
ST EP 6
Install Grommet Cover and Monitor Arm
• Move to top of desk and install the Grommet Cover.
IF YOU ARE INSTALLING A SINGLE OR DUAL
MONITOR ARM, CONTINUE TO NEXT TASK.
IF YOU ARE INSTALLING AN M2, M8 OR M/FLEX,
PROCEED TO STEP 6 ON PAGE 8.
• Attach the monitor stand to the column.
• Feed all cables into the monitor stand.
4
Adjust foot of column.
*Do not over tighten foot as it will start to lift the desk.
Step 6
Move to top of desk and install the Grommet Cover,
then the monitor stand to the column.
Feed all cables into the monitor stand.
