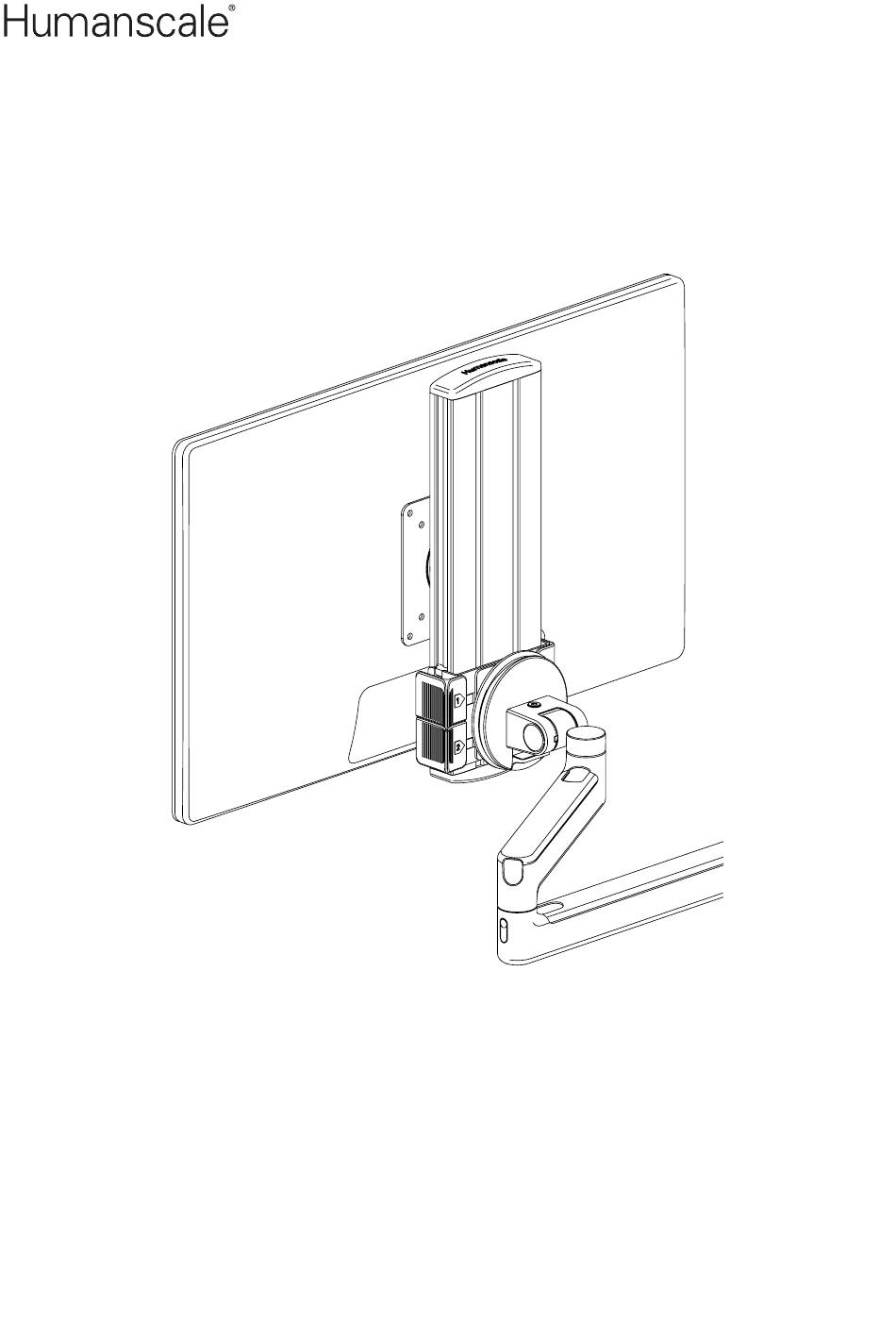

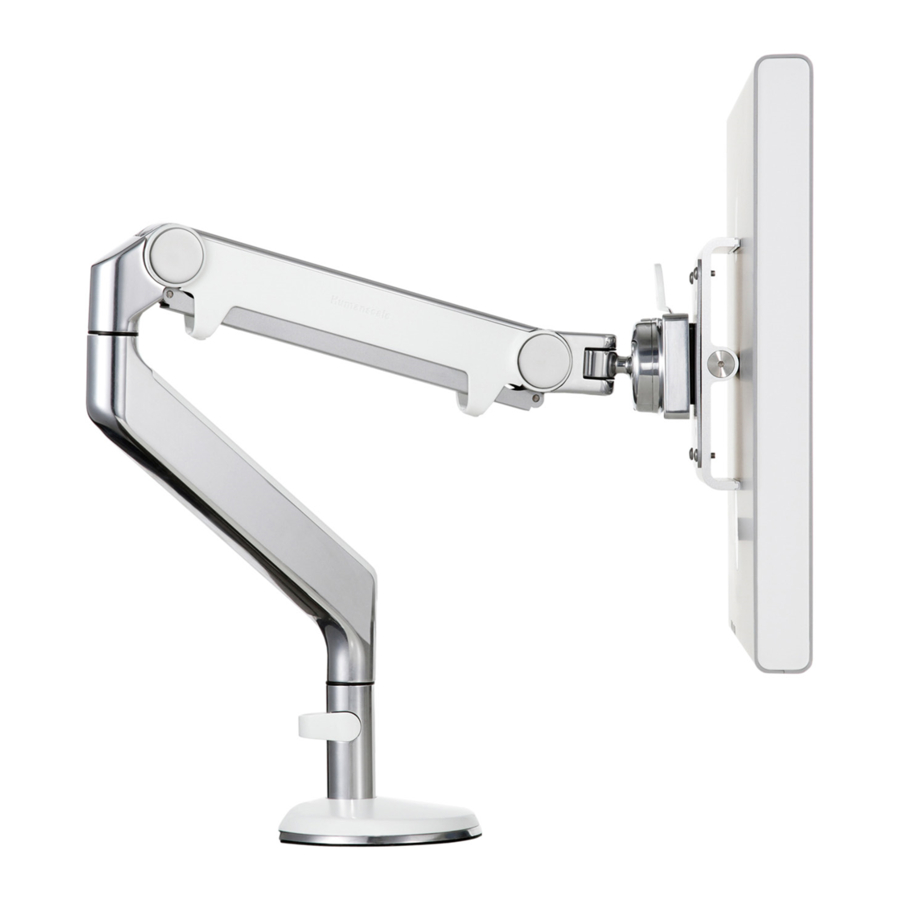

- Page 1 Universal Front End Adjuster Assembly Instructions North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +8522581 0570...
- Page 2 DESIGNING HEALTHIER WORKPLACES...
-
Page 3: Parts Included
Parts Included VESA Bracket Track Mounting Points Carriage Plate Spring Switches Track Assembly Track Assembly (Back View) (Front View) (4) Standard VESA Screws (4) Plastic Spacers VESA Bracket (4) Extended VESA Screws 2.5mm Hex Key Standard Tilt Kit Fixed Mount Kit Legacy Tilt Kit Standard Tilt Adapter Adapter Plate... - Page 4 Carriage Plate. Using the 2.5 mm hex key, install the (4) M4 × 6mm flat head machine screws to attach the Standard Tilt Adapter to the UFEA. (Fig. 2) Fig. 1 - Screw hole pattern. Fig. 2 Fixed Mount Adapter Using the 4 mm hex key, install the (3) M6 ×...
- Page 5 Align the 5 screw holes on the Adapter with the 5 mounting points on the Carriage plate. Using the 2.5 mm hex key, install the (5) M4 × 6 mm flat head machine screws to attach the Legacy Tilt Adapter to the UFEA. (Fig. 5) Fig. 5 Attach VESA Bracket to Monitor Position the VESA bracket over the mounting points on the back of the monitor.
- Page 6 Align the 4 screws on the VESA bracket with the appropriate keyhole-shaped mounting points. (See Fig. 8) Insert the screw heads into the keyhole and slide the UFEA track so the screw heads seat in the narrower end of the keyhole. (Fig. 7) Using the 2.5 mm hex key, tighten the 4 screws on the VESA bracket.
- Page 7 NOTE: While the UFEA supports monitors up to 30 lbs (13.6 kg), your monitor arm may not. Never exceed the weight capacities listed for your specific monitor arm model.
- Page 8 Attach to Monitor Arm Standard Tilt Hold the monitor at an angle and lower it onto the arm. Fit the hook at the top of the arm into the D-shaped cutout in the Adapter. (Fig. 9) Push the bottom of the monitor back until the Quick Release Tab (B) on the arm snaps into position.
- Page 9 Legacy Tilt Slide the Adapter into the arm mount until the Quick Release Tab (D) clicks. (Fig.12) To remove, pull Quick Release Tab away from the UFEA and slide the monitor up and away from the arm. Fig. 12...
-
Page 10: Adjustments And Troubleshooting
Pull to release the switch. Test the adjustments by moving the monitor up and down a few times. Repeat if necessary. If the switches do not engage or disengage properly, try removing the monitor and UFEA from the arm before making the adjustments. - Page 12 For our terms and conditions please go to https://www.humanscale.com/about/legal-information/terms-conditions.cfm © 2021 Humanscale Corporation. The text and artwork are copyrighted materials. All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries.
