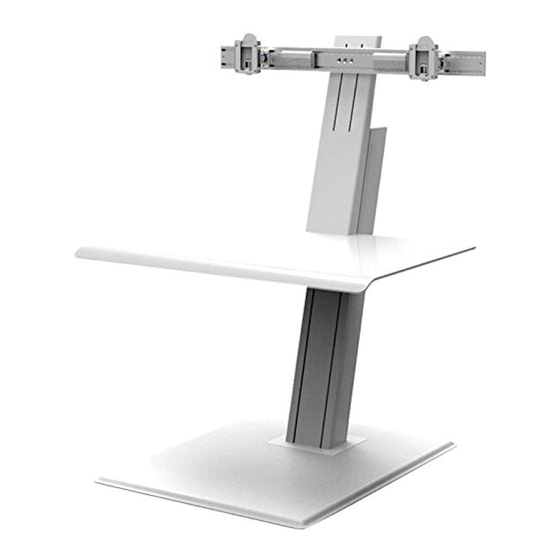

Humanscale QuickStand Eco Installation Instructions Manual
Hide thumbs
Also See for QuickStand Eco:
- Assembly instructions manual (32 pages) ,
- Installation instructions manual (12 pages) ,
- Assembly instructions manual (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for Humanscale QuickStand Eco
Summary of Contents for Humanscale QuickStand Eco

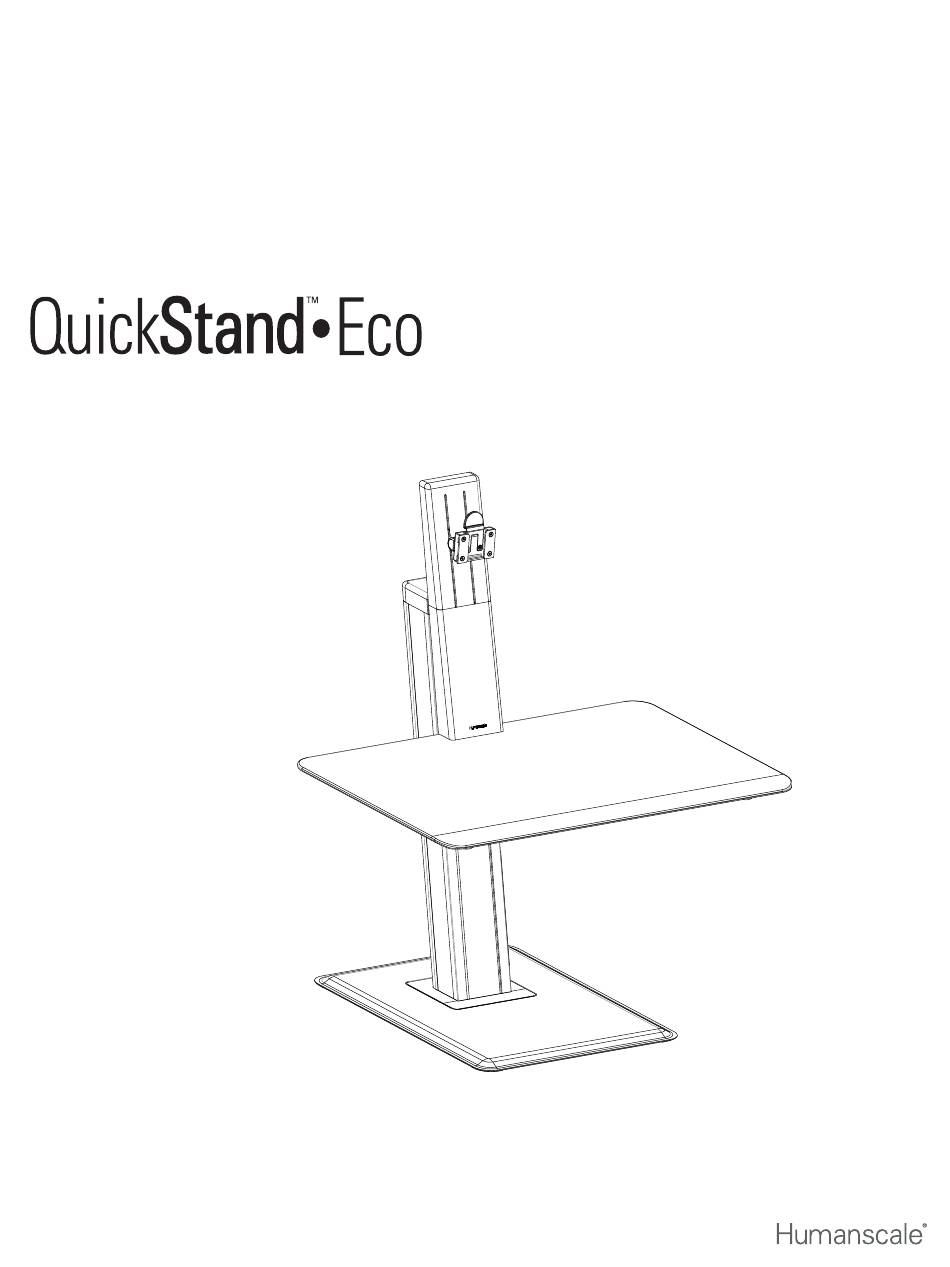

- Page 1 IN STA LL ATI O N INSTR UC TIONS North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +852 2581 0570...
-
Page 2: Tools Needed For Assembly
1x 3 mm hex key 1x main post 4x M4 18mm screw 1x M6 17mm screw (only with crossbar) (VESA hardware kit) (only with crossbar) TOOL S N EED ED F OR ASS EMBLY phillips head screwdriver www.humanscale.com... - Page 3 ST EP 1 • Place the base on a desk. Remove the plastic covers and set them aside. ST EP 2 • Slide the main post onto the base by inserting the 2 tabs in the front and secure the main post with 6 screws. •...
- Page 4 ST EP 4 • Attach the VESA plate onto the monitor(s). ST EP 5 • Reposition the 4 monitor height screws if necessary. Refer to the chart for recommended screw location. • To adjust position, loosen the 4 screws shown here with the 2.5mm hex key.
- Page 5 ST EP 6 A (F O R DUA L MONITORS) • Attach the crossbar to the unit using the 3 screws as shown. • Attach both monitors to the crossbar. Refer to the crossbar installation manual. ST EP 7 • Push the keyboard platform down to remove the lock piece.
- Page 6 © 2019 Humanscale Corporation. The text and artwork are copyrighted materials. All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries. The Quickstand Eco trademark is owned by Humanscale.
