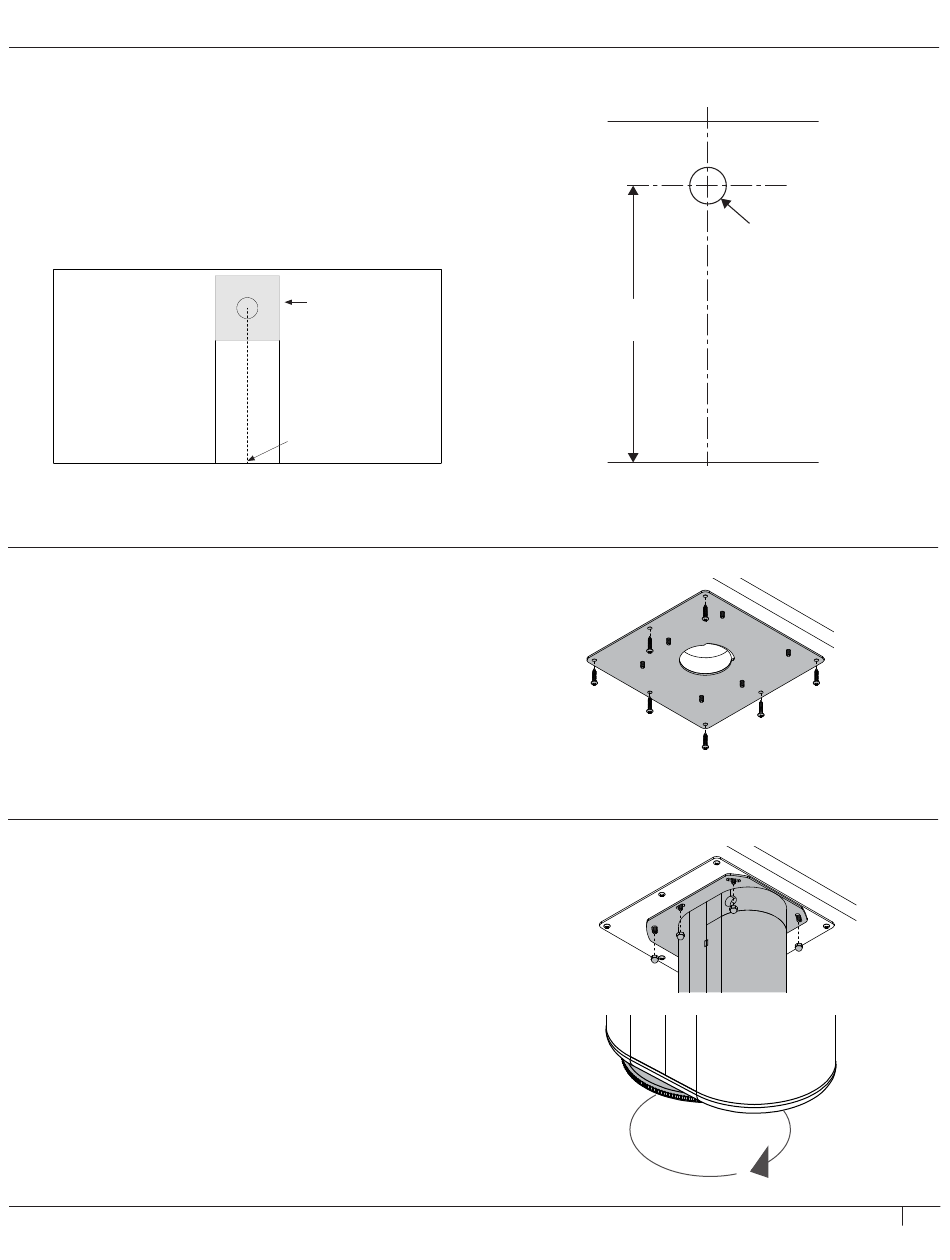

ST EP 1
Locate and Drill Hole
Step 1
• Place the paper template aligning to the front edge of the desk.
Place the paper template aligning to the front edge of the desk.
• Make sure the 10" x 10" area shown on the template is clear
Make sure the 10" x 10" area shown on the template is clear of any obstruc-
of any obstruction underneath the desk for step 2.
tion underneath the desk for step2.
• Drill 3.25" hole 24" from the front edge of the work surface shown in template.
Drill 3.25" hole 24" from front edge in work surface shown in template.
*Desk size must be over 30" deep and 3/4" thick.
*Desk size must be over 30" deep 3/4" thick.
(Desk top view with template)
ST EP 2

Install Mounting Plate

3.25"
• Install steel studded Mounting Plate to underside of desk
by aligning it with 3.25" hole in desk. The cutout of the
24"
circle should face the back of the desk.
ST EP 3
Attach Column
• Mount main column to studded plate with plastic side
facing rear and secure with supplied lock nuts.
• Adjust foot of column.
*Do not over-tighten foot as it will start to lift the desk.
10" x 10" area
Step 1
Align the template to the
Place the paper template aligning to the front edge of the desk.
front edge and centerline
Make sure the 10" x 10" area shown on the template is clear of any obstruc-
of the desk
tion underneath the desk for step2.
Drill 3.25" hole 24" from front edge in work surface shown in template.
*Desk size must be over 30" deep 3/4" thick.
(Desk top view with template)
10" x 10" area
Align the template to the
front edge and centerline
of the desk
3.25"
24"
Step 2
Install steel studded mounting plate to underside of desk, by aligning it
with 3.25" hole in desk. The cut out of the circle should face the back of the
desk.
24"
Step 2
Install steel studded mounting plate to underside of desk, by aligning it
with 3.25" hole in desk. The cut out of the circle should face the back of the
desk.
Step 3
Mount main column to studded plate with plastic side facing rear and
secure with supplied lock nuts.
*Note studs are close to the column so a swivel socket works best.
Adjust foot of column.
*Do not over tighten foot as it will start to lift the desk.
Align the tem
front edge an
of the desk
3.25"
Step 4
Loosen the screw located in the c
Let the inner tube fully rise, then
tabs on the locking mechanism s
inside the inner tube.
