Cable Installation - Humanscale QuickStand Under Desk Installation Instructions Manual

ST EP 7 ( F OR SINGL E / DUA L MONITOR )

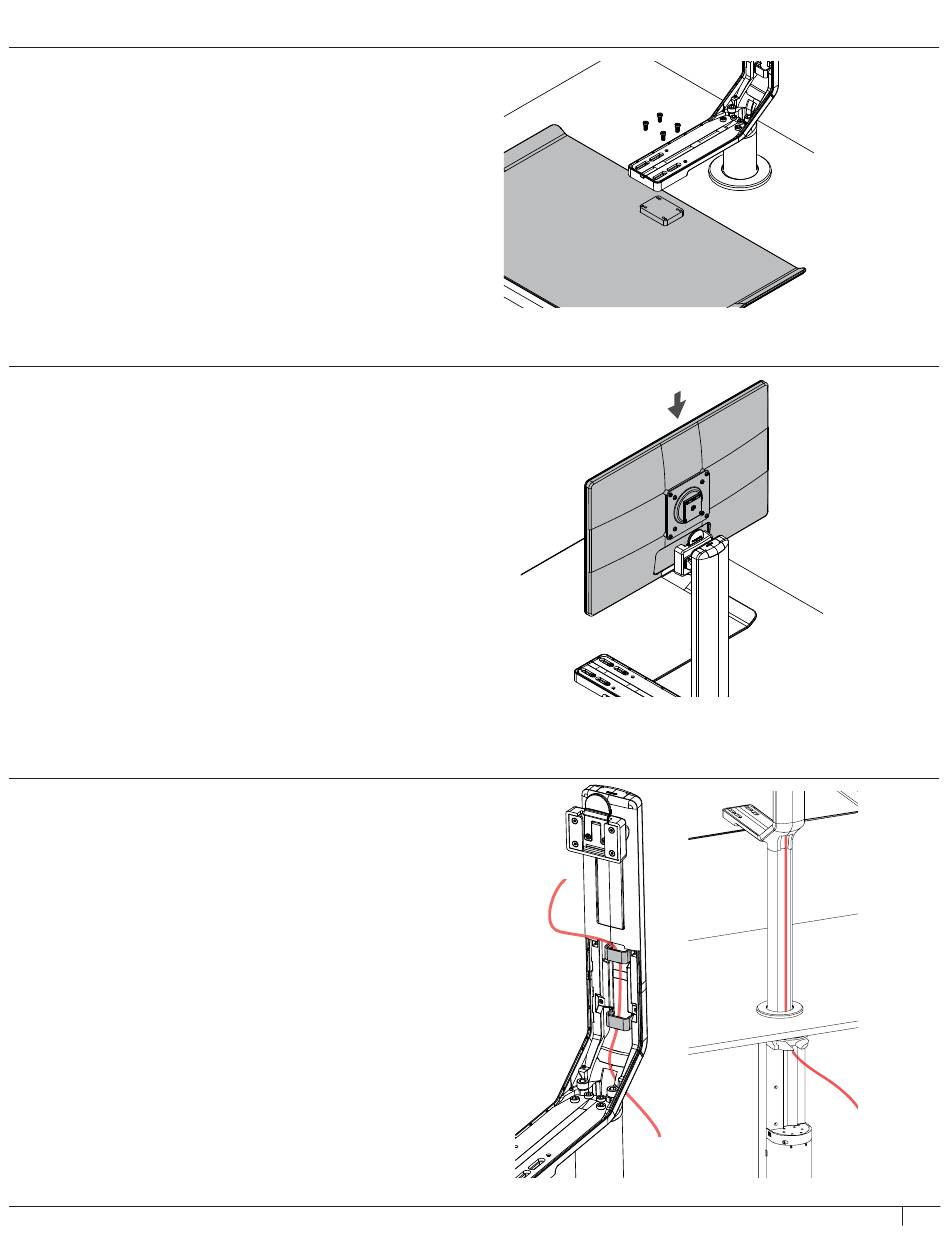

Install Keyboard Tray
• The front edge of the keyboard tray must
be at the front edge of the table.
• Loosen the 6 acorn nuts in Step 3 to rotate
the unit for adjustment if needed.
Step 7
Next install keyboard tray.
Front edge of the keyboard tray must be at the front edge of the table.
ST EP 8 ( F OR SINGL E / DUA L MONITOR )
Losen the 6 acorn nuts in step3 to rotate the unit for adjustment if needed.
Attach VESA Plate
• Attach the VESA plate to your monitor and install
monitor on monitor mount.
• For dual monitor, please refer to the
crossbar installation manual.
ST EP 9A ( F OR SINGL E / DUA L MONITOR )

Cable Installation

• Leave enough cable slack for the monitors to adjust up and down
and secure with cable clips. Push the clip to one side to remove.
• Run the cable down the channel of the column and through
the grommet.
*Recommended to adjust cable slack putting the monitor at its
heighest adjustment position.
*Keeping the cables organized and lined up in the channel
will help the installation of the cable cover.
Step 8
Attach the Vesa plate to your monitor and Install monitor on monitor mount.
For dual monitor, please refer to the crossbar installation manual.
Step 9
Leave enough cable slack for the monitors to adjust up&down and secure
with cable clips. Push the clip to one side to remove.
Run down the channel of the column and through the grommet.
* Reccomended to adjust cable slack putting the monitor at its heighest adjustment position.
* keeping the cables organized and lined up in the channel will help the installation of the
cable cover.
Step 9a
For wired keyboard and
and run the cable throu
the rest of the cables do
5
